Automating the CNC Program Request Workflow

A standard CNC program consists of three distinct sections: the program setup or header, the machining or body section, and the program end. The header establishes initial safe parameters, coordinate systems, and tool callouts. The body executes sequential tool paths, cutting motions, and spindle commands. Finally, the program end cancels active cycles, retracts the tool to safety, and signals completion or resets the machine for subsequent cycles.

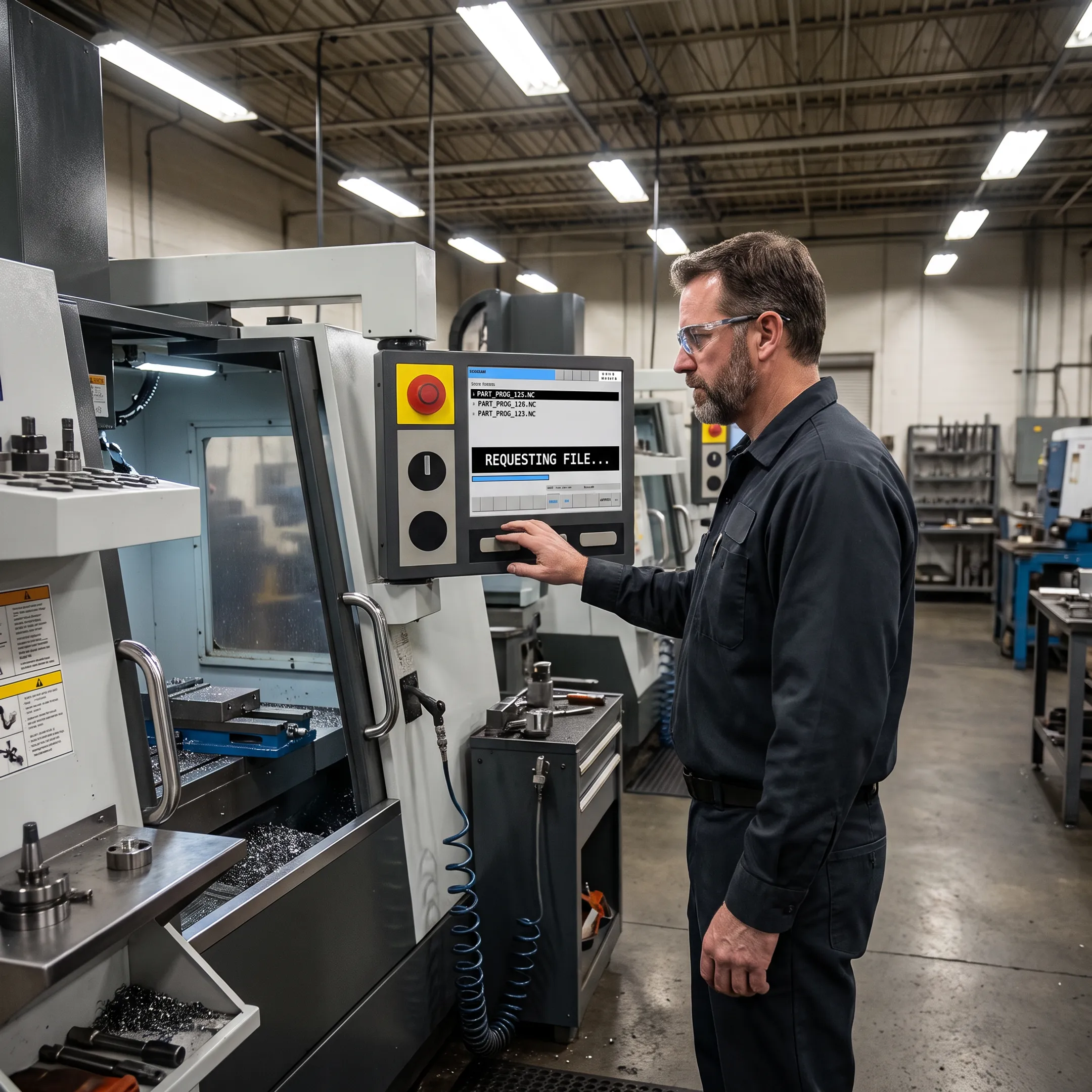

Operators initiate requests directly at the machine tool control by sending a small request file containing embedded keywords identifying the needed part program. Software like Machine Link QUICK Serve continuously monitors the communication port, captures the request across wired or wireless serial connections, matches the keywords, and automatically downloads the verified CNC program directly to the control without operator PC interaction.

Manual file transfers using USB drives or unmanaged workstations often lead to operators running outdated program revisions. Automated workflows enforce centralized version control by delivering only engineering-approved CNC files in response to operator requests. When edits occur at the machine, they are sent back for engineering review, preventing unauthorized changes and ensuring consistent part quality across shifts.

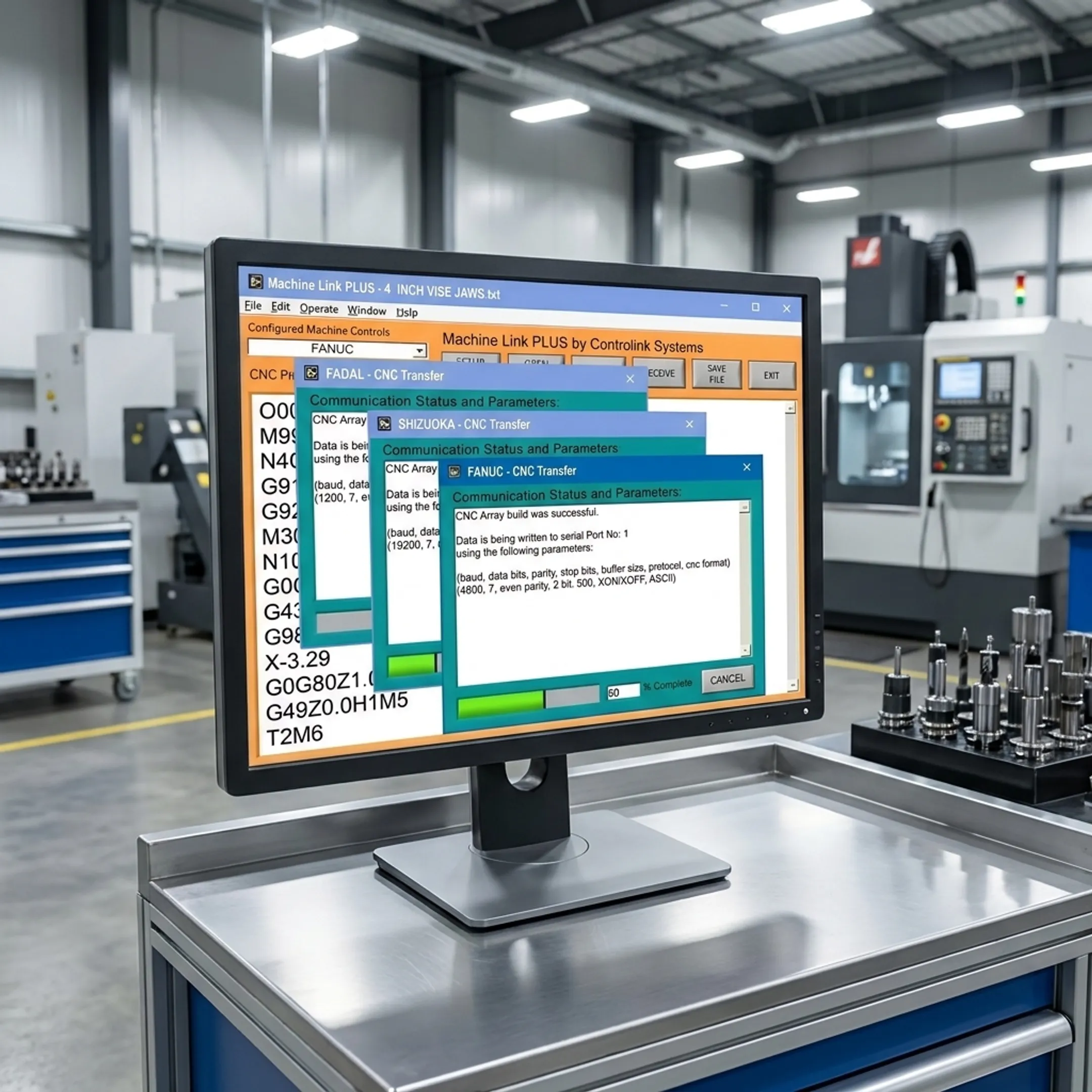

Controlink Systems software supports standard RS-232 serial communications across wired cables, wireless serial devices, and ADR BTR connections. The software accommodates standard ASCII, ISO, and EIA character formats, enabling seamless communication with both legacy and modern CNC controls. Multi-port configurations allow simultaneous communication with multiple machines from a single host computer without communication conflicts.

Yes. Machine Link software allows program edits made at the machine tool to be transmitted directly back to engineering workstations for review. Engineers evaluate shop-floor adjustments, verify cutting parameters, and update the master program file. This structured loop preserves valuable machinist insights while maintaining rigid revision control and preventing unapproved file overwrites.

Depending on your package configuration, Controlink Systems software scales to match shop requirements. Machine Link QUICK Serve supports up to 3 simultaneous sessions, QUICK Serve PLUS manages up to 20 machines, and QUICK Serve PRO remotely services up to 64 CNC machine tools simultaneously from a single workstation, eliminating manual floor transit entirely.

Yes. Controlink Systems offers a 45-day free evaluation for Machine Link QUICK Serve products. This full evaluation allows manufacturing facilities to test remote file requests, verify compatibility with existing CNC machine controls, and observe productivity gains firsthand on their actual shop floor before committing to a permanent software license.

Controlink Systems provides a standard Replacement Plan. If your computer fails within the first two years, you receive a free replacement registration code upon reinstalling the software, up to a maximum of two codes. For failures occurring after two years, loyal customers receive 50 percent off their replacement order.
