NIST SP 800-171's Audit and Accountability family, requirements 3.3.1 through 3.3.9, addresses exactly this gap. These requirements govern how organizations create, protect, review, and use audit records to spot unauthorized activity involving systems that handle or protect CUI.
This article breaks down each requirement with shop-floor examples, addresses legacy equipment that can't produce modern logs, and outlines the evidence assessors expect to see during a NIST 800-171 or CMMC readiness review.
Key Takeaways
- Base your logging plan on documented system scope and a real audit-event policy, not a checklist of every machine signal.
- Accountability means tracing actions to a specific user, device, or process, then protecting those records from tampering.
- Legacy machines often need layered evidence: native logs, network telemetry, access records, and documented compensating measures.
- Assessors expect repeatable proof: inventories, configurations, synchronized timestamps, review records, and retention settings.
Why Audit and Accountability Matters for Shop-Floor Systems
NIST defines an audit as a systematic, documented process for evaluating evidence against defined criteria. Accountability, in NIST's glossary, is the property that lets an entity's actions be traced uniquely back to that entity. On a production floor, that means every meaningful action—an operator login, a program upload, a configuration edit—must point back to a specific user, device, or system.
That matters because shop-floor events carry both cybersecurity and operational risk. Consider what can go wrong:
- An unauthorized change to an engineering file that ships to the machine
- A CNC program altered without approval before a production run
- A disabled safety interlock or quality check
- Remote maintenance activity that nobody logged or reviewed
- Test results changed after the fact
Not every data point is a security-relevant audit event. A spindle temperature reading or cycle counter supports operations. A failed login, file transfer, or admin setting change falls squarely inside 3.3's scope.
Scoping Comes First

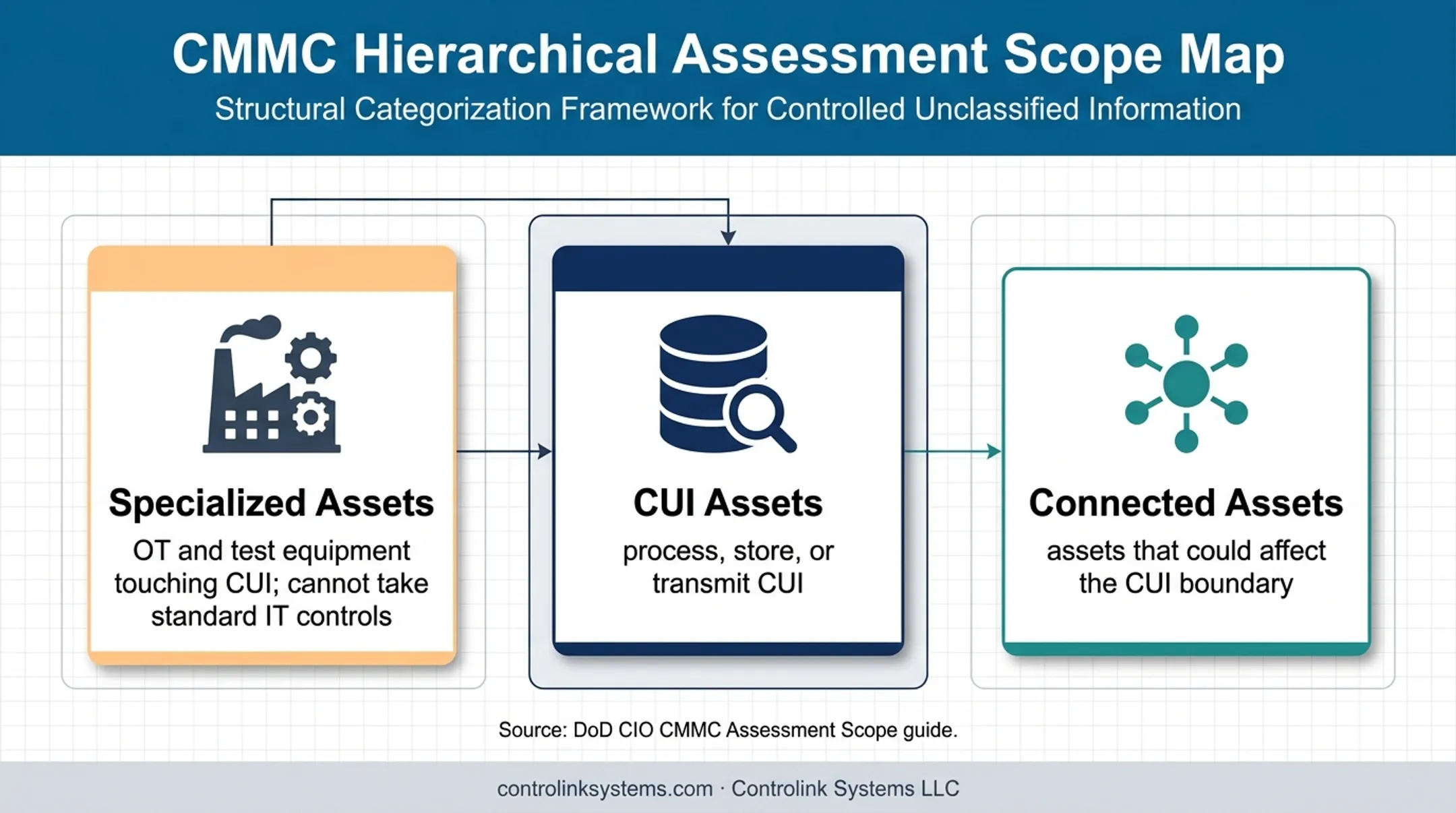

Before you decide what to log, define what is in scope. The DoD CIO's CMMC Assessment Scope guide for Level 2 classifies assets that process, store, or transmit CUI as CUI Assets—fully in scope.
It also defines Specialized Assets: operational technology and test equipment that touch CUI but cannot take standard IT controls. Those assets stay in scope. Document and risk-manage them even when they cannot run a typical endpoint agent.
Not every PLC handles CUI by default. Map your actual CUI boundary and identify which connected assets could affect it—do not assume universal coverage or a blanket exemption.
NIST SP 800-171 3.3 Requirements Explained
Requirements 3.3.1 through 3.3.9 work as one connected lifecycle for shop-floor systems:
- Define what to log and retain it long enough to investigate
- Protect logs from tampering and alert when logging fails
- Review, correlate, and reduce records into usable reports
- Keep clocks synchronized across machines and servers
- Limit who can administer or clear the logging function
| Requirement | What It Requires | Shop-Floor Example |
|---|---|---|
| 3.3.1 | Create and retain audit logs sufficient for monitoring, analysis, investigation, and reporting | Retaining DNC file-transfer logs long enough to investigate a suspicious program change |
| 3.3.2 | Trace individual user actions uniquely | Tying a CNC program upload to a specific operator account, not a shared login |
| 3.3.3 | Review and update logged events | Periodically reassessing whether HMI configuration changes should be logged |
| 3.3.4 | Alert on audit-logging process failures | Flagging a stopped log-forwarding service or a full local storage disk |
| 3.3.5 | Correlate audit review and analysis for investigation | Cross-referencing an identity-system login with a DNC server file request |
| 3.3.6 | Provide audit record reduction and report generation | Producing an on-demand report of all remote-access sessions in a date range |
| 3.3.7 | Synchronize clocks with an authoritative time source | Keeping engineering workstations and DNC servers on the same time source |
| 3.3.8 | Protect audit information and tools from tampering | Restricting write access to log files stored on a historian or SQL database |
| 3.3.9 | Limit log administration to a subset of privileged users | Only IT security staff, not machine operators, can clear or reconfigure logs |
Source: NIST SP 800-171 Revision 2, current authoritative baseline for CMMC Level 2 assessments.
The table above follows Revision 2 because that is still the CMMC Level 2 baseline most contracts reference.
A note on revisions: NIST published SP 800-171 Revision 3 in 2024. It renumbers this family (03.03.01 through 03.03.08) and adds detail on audit-record content and failure-response timing. Current CMMC Level 2 rules still point to Revision 2 language.
Confirm which revision your contract requires before you lock compliance documentation to either version.
Applying Event Logging to Shop-Floor Systems
Turning these requirements into practice starts with an inventory, not a logging tool purchase.
Build an Asset-and-Data-Flow Inventory
Map every system that could touch CUI or affect an in-scope system: CNC/DNC servers, PLCs, HMIs, engineering workstations, test stands, end-of-line systems, historians, SQL databases, file shares, remote-access tools, and network devices. For each one, build an event-source matrix tracking:
- System or device and its owner
- Relationship to CUI
- Available native events
- Collection method and timestamp source
- Retention location and review owner
- Known limitations
Identify What to Actually Log
Focus on event categories with real security relevance:
- Successful and failed authentication attempts
- Account or privilege changes
- Access to CUI repositories
- Engineering-file creation, edits, or transfers
- CNC program or recipe changes
- Remote maintenance sessions and removable-media activity
- Logging-service failures or interruptions
Handling Legacy Equipment
Plenty of shop-floor hardware simply can't generate detailed native logs. NIST SP 800-82 Revision 3 notes that security audit tools are generally unavailable on legacy operational technology.
Use compensating evidence from elsewhere in the environment:
- Historian records
- Firewall logs
- Physical-access monitoring
- Engineering workstations closer to the boundary
Manual review procedures can fill remaining gaps where automated collection isn't feasible. No single compensating measure is automatically sufficient on its own—layer several together and document why the combination is adequate.
Collect Without Disrupting Production
Deploy collection carefully:
- Use passive or agentless collection where possible to avoid touching production controllers directly.
- Buffer forwarding so brief network interruptions don't lose records.
- Route collectors through isolated management paths with read-only, least-privilege access.
- Test changes in a non-production environment first, then deploy during an approved maintenance window.
Time synchronization and identity traceability round this out. Keep systems on a consistent authoritative time source—UTC or documented local time.
Push toward unique operator accounts instead of shared machine logins wherever feasible. Correlating a user, a device, and an application record only works when those identifiers stay consistent.

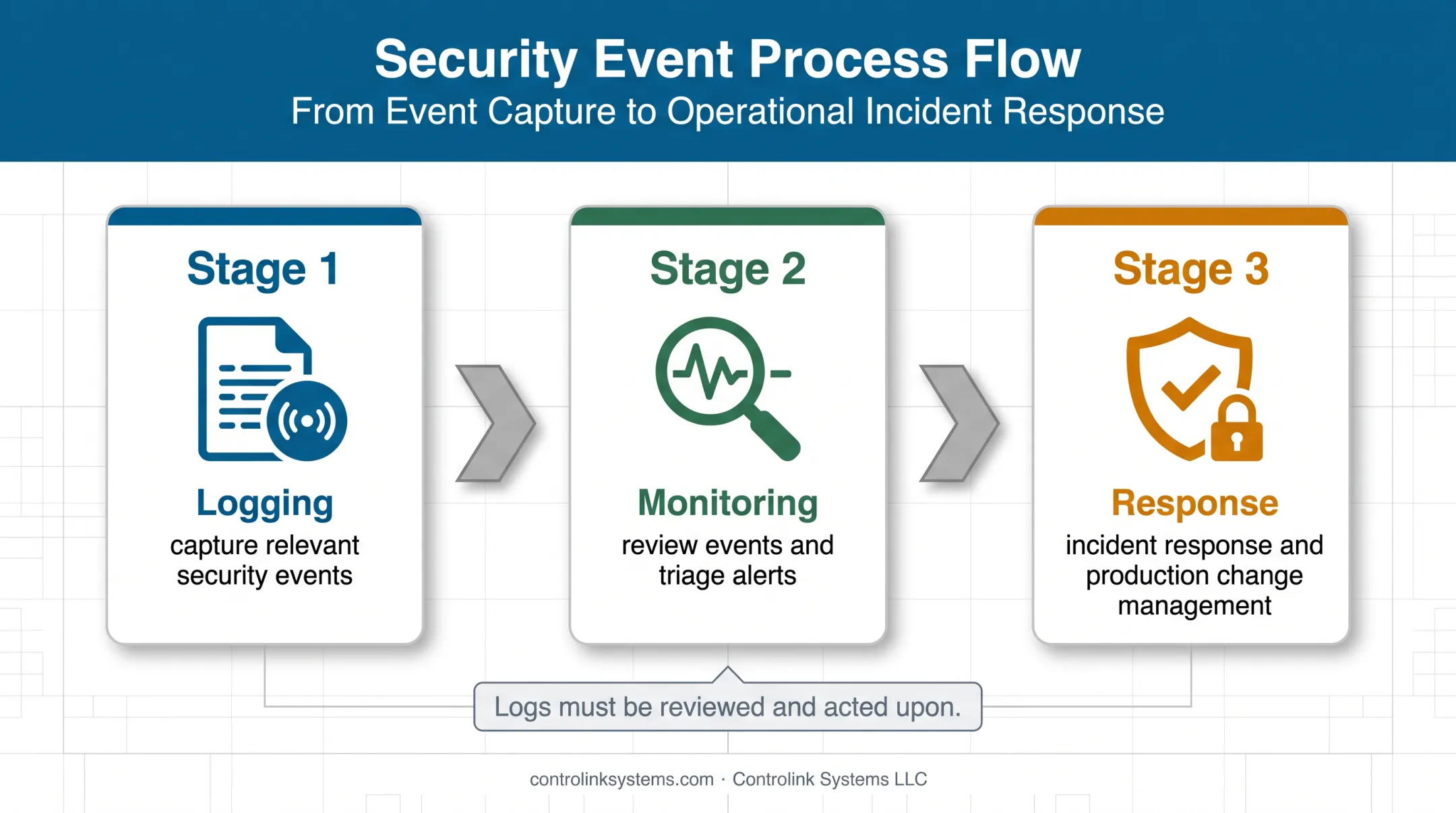

Logging is not monitoring, and monitoring is not response. Reviewed events must feed alert triage, incident response, and production change management, or the logs sit unused.
Building Audit Evidence and Preparing for an Assessment
Assessors don't want a folder of disconnected screenshots. Organize evidence by requirement instead. For each applicable 3.3 control, document the implementation, the responsible owner, in-scope assets, configuration details, review frequency, and retained records.
Assessment-Evidence Checklist
- System security plan and asset inventory
- CUI boundary and data-flow diagrams
- Audit-event policy and logging architecture
- Source-to-collector configurations and retention settings
- Privileged-access list for log administration
- Time-synchronization settings
- Failure-alert test results
- Log-review procedures and review records
- Incident tickets and change-management approvals
Prove the Logs Are Actually Used
A configured logging system that nobody reviews doesn't demonstrate accountability. Run sample-based reviews showing how a specific user, device, or file change can be traced across systems, and keep that trail as evidence.
Retention Needs Documentation, Not Guesswork
There's no single universal retention period in the requirement itself. Set retention from contract clauses, your records policy, storage capacity, and current assessment guidance—and confirm the latest CMMC and DFARS expectations before you lock in a number.
Common Findings to Avoid
- Missing coverage for connected shop-floor assets
- Shared operator accounts instead of unique logins
- Inconsistent timestamps across systems
- No alert when a logging process stops
- Unrestricted access to log administration
- Alerts generated but never reviewed
- Evidence that exists technically but isn't tied to a documented procedure
Phased Remediation Path
- Scope the environment and confirm the CUI boundary.
- Identify the events that actually need logging.
- Close identity and time-synchronization gaps.
- Establish protected, least-privilege log collection.
- Test failure conditions to confirm alerts fire.
- Formalize review and response procedures.
- Conduct an internal evidence review before the external assessment.
How Controlink Systems LLC Can Support Shop-Floor Integration
Getting event data out of shop-floor systems and into a monitoring or evidence environment is an integration problem as much as a compliance one. Since 1998, Controlink Systems LLC has built interfaces across SQL databases, PLC hardware, single- and multi-axis motion controllers, and industrial protocols such as CAN, UDS, Modbus, Serial, Profinet, and EtherCAT.
That experience maps directly to logging-related integration work:
- Map how production applications and devices exchange data
- Find where event records are generated—or where they drop off
- Route relevant records into an approved monitoring environment without disrupting machinist workflows
Shops use Controlink Systems LLC's DNC and process-monitoring solutions to keep production moving while gaining clearer floor-level visibility. Common environments include:
- Mold making
- Medical devices
- Automotive and aerospace
- General CNC machine shops
If your team is working through NIST 800-171 or CMMC readiness and needs help mapping shop-floor data flows or connecting production systems to a logging environment, call Controlink Systems LLC at (800) 838-3479 or email support@controlinksystems.com.
Note: Technical integration support alone does not equal NIST 800-171 compliance, CMMC certification, or an assessor's determination. Those outcomes require your documented compliance program and, where required, a certified third-party assessment.
Frequently Asked Questions
What are the NIST 800-171 requirements?
NIST SP 800-171 sets security requirements for protecting CUI on nonfederal systems, organized into control families. This article focuses specifically on the Audit and Accountability family, requirements 3.3.1 through 3.3.9. Check the current NIST publication for exact wording.
Is NIST 800-171 the same as CMMC?
No. NIST SP 800-171 defines the security requirements themselves, while CMMC is the DoD's assessment and certification program that verifies whether an organization has implemented those requirements. Always confirm current contract language and program rules.
What must be included in NIST 800-171 audit logs?
Organizations should define events needed for monitoring, investigation, reporting, and accountability. That typically includes authentication, CUI access, configuration changes, file transfers, remote access, admin actions, and logging failures on in-scope systems.
How long should NIST 800-171 audit logs be retained?
There's no single universal retention period defined by the control itself. Document a retention period based on your contract obligations, organizational records policy, system requirements, and current assessment guidance.
Do CNC machines and PLCs need to generate audit logs for NIST 800-171?
It depends on the system's scope and its relationship to CUI and protected systems. If a device can't generate native logs, document alternative sources, such as network telemetry or access records, and compensating measures that support accountability.
