Introduction
An operator loads a program, the machine runs clean, and the part comes out wrong anyway. Not because the machine misbehaved, but because the file wasn't the current engineering-approved revision. Nobody caught it until inspection flagged the part, or worse, until a customer did.
Revision control is the disciplined management of CNC program versions: who approved them, how they're distributed, and what changed between revisions. First-pass yield (FPY) measures the percentage of parts accepted without rework or rerun.
Revision control won't fix a worn tool or a loose fixture. But it closes one specific gap: the space between an engineering change and what actually loads at the machine. That gap is where a lot of scrap quietly happens. This article connects revision control failures to first-pass yield loss—and shows what disciplined program control looks like on the shop floor.
Key Takeaways
- An outdated or locally edited program creates quality risk even when tooling and machines work perfectly
- Effective revision control needs unique file IDs, documented approvals, and a way to retire old versions
- Program traceability separates code errors from setup, tooling, or material issues during root-cause work
- CNC/DNC systems keep file distribution consistent, but ownership and operator checks still close the loop
How CNC Program Errors Affect First-Pass Yield
A program can load without a single alarm and still produce a nonconforming part. Wrong work coordinate offsets, an outdated tool call, or a feed rate that no longer matches a revised material spec won't stop the spindle. They just make bad parts.
Alarm Failures vs. Silent Failures
Two failure modes matter here:
- Alarm/syntax failures — the control rejects the program or stops mid-cycle. Annoying, but visible.
- Silent quality failures — the program runs to completion, and the part looks fine until it's measured. Wrong depth, wrong feature location, or a finishing pass built for the previous revision.
Modern Machine Shop has documented that some CNC programming mistakes never trigger an alarm at all — they simply cause operator confusion, wasted time, and scrap. Insufficient documentation on the program itself is a major contributor.
Where Revision Control Fits In
Engineering changes tolerances, datum strategy, or tooling. If the shop floor is still running the prior revision, the process no longer matches the drawing, even though the code "works." Common failure points include:
- Ambiguous filenames like "final" or "final2"
- Duplicate copies sitting on local shop computers
- USB transfers with no record of what was moved
- Machine-side edits that never get reported back
- Verbal change instructions nobody wrote down
Every reworked part adds cost. The ASQ Certified Quality Process Analyst Handbook is direct on this point: redoing work increases the cost of quality every time it happens.
Revision control is one contributor to FPY, not the whole answer. A properly controlled program run on a worn spindle or with the wrong fixture pressure will still fail. Root-cause analysis has to separate program errors from setup, tooling, machine, material, and inspection causes — otherwise you'll "fix" the wrong thing.
Build a Revision-Controlled CNC Program Workflow
A controlled program has a lifecycle: creation, approval, distribution, use, revision, and retirement. Each stage needs an owner.
| Stage | Typical Owner |
|---|---|
| Program creation | Programmer/CAM operator |
| Engineering approval | Engineering |
| Quality review | Quality |
| Production release | Production/planning |
| Confirmation at the machine | Operator |
Program Identification Standard
Skip informal names entirely. A workable identifier links the file to:
- Part number
- Machine or control family (where relevant)
- Revision level
- Operation or setup number
- Approval status
"Latest" and "final" tell an operator nothing. A structured file name tells them everything they need before they hit cycle start.
Minimum Release Controls
Before a program reaches the floor, it needs:
- A documented change reason — what changed and why
- Reviewer sign-off — someone besides the programmer confirms it
- An effective date and list of affected jobs or machines
- Any required setup changes noted alongside the file
- The prior revision archived somewhere it can't be confused with the active copy
This lines up with how ISO 9001 auditing guidance treats design changes generally — approve before implementation, document fully, and keep records of any follow-up actions required.
Verification Before Release
Before release, verify:
- CAM simulation results
- Post-processor output
- Tool and offset data against the current drawing
- Dry run or prove-out where risk justifies it
Skipping this step because "it's just a minor revision" is how minor revisions become major nonconformances.

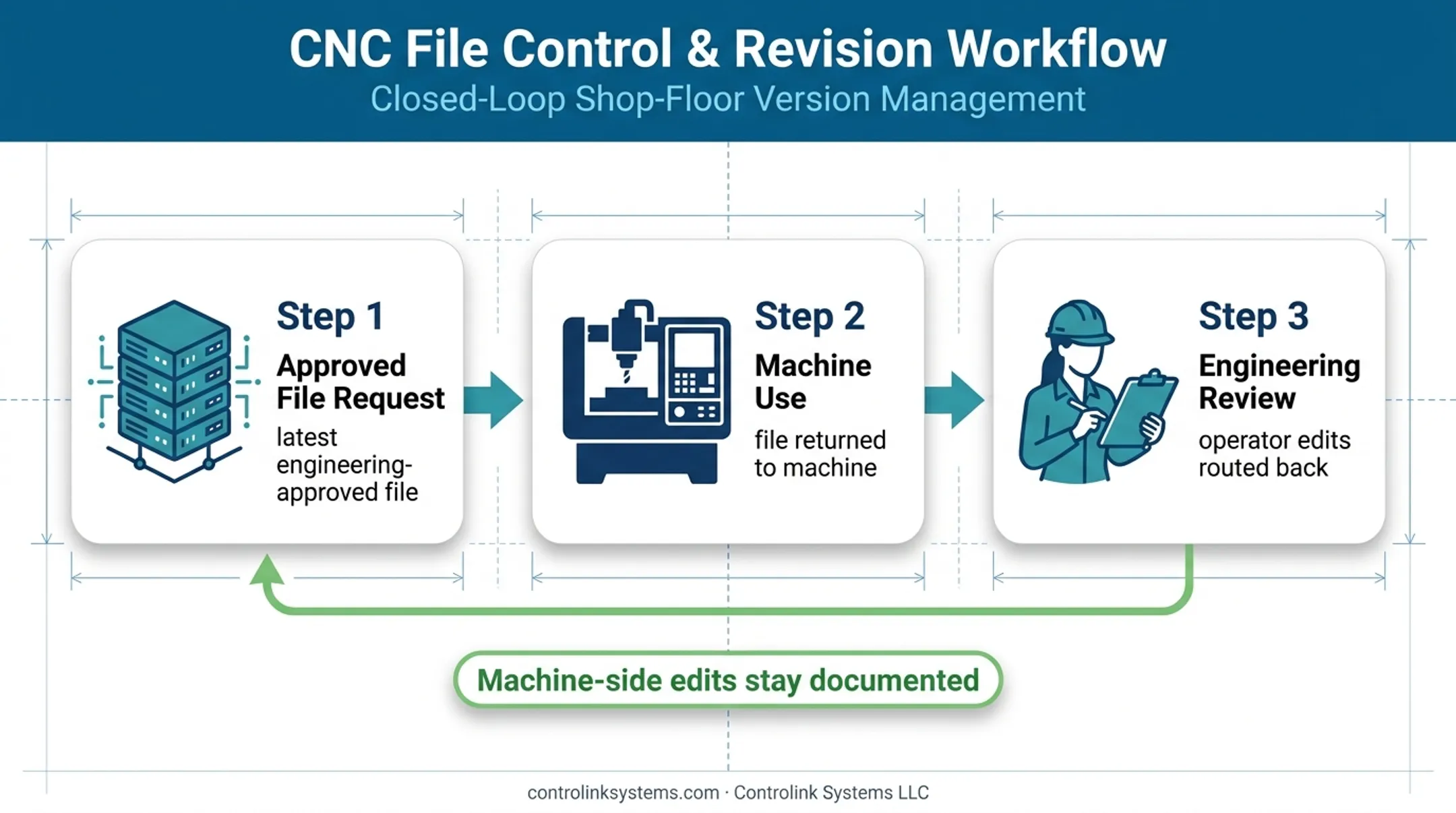

Getting the Approved File to the Machine
This is where a lot of shops lose control, especially past a handful of machines. Controlink Systems built Machine Link™ QUICK Serve around exactly this problem.
It returns the latest engineering-approved file to the machine on request. Any edit an operator makes at the control gets routed back to engineering for review before it becomes the new starting point. Machine-side edits stay documented instead of disappearing into a local memory bank.
That's not a substitute for a defined process. It's infrastructure that makes the process easier to follow consistently.
Common Revision-Control Mistakes That Undermine Quality
Most revision problems aren't exotic. They're the same handful of habits repeating across different shops.
Naming files "new," "newest," or "final2." Once you have three files that could plausibly be the approved one, traceability is gone. As a 2025 Modern Machine Shop article notes, version control matters because files get renamed, modified, overwritten, or pulled from the wrong folder, even when nobody is being careless.
Undocumented machine-side edits. An operator nudges an offset or trims a feed rate to solve a real problem, then never tells anyone. The next shift runs the "official" program and reproduces the original issue, because the fix only lived at the control.
Updating the code but not everything around it. A program revision changes, but the tooling sheet, inspection plan, or setup instruction stays frozen at the old revision. Now the code and the paperwork disagree, and whoever catches it has to guess which one is right.
No periodic audit. Without a regular check comparing active machine files against the controlled master, superseded files can sit on a machine indefinitely. They stay available, and one wrong click away from running.
Use these checks on a fixed cadence:
- Do active machine files match the master repository?
- Are obsolete files removed or clearly quarantined?
- Can an operator find the approved revision without asking someone?
Measure and Improve FPY With Program Traceability
FPY, by ASQ's definition, is the percentage of units that complete a process and meet quality requirements without being scrapped, reworked, retested, or diverted for repair. The formula: (units entering the process − defective units) ÷ total units entering the process.
Before you calculate it, decide how your shop treats rework and concessions. A part fixed in five minutes and a part scrapped after four hours are not the same failure, and lumping them together hides the story.
What to Track on Every First-Pass Failure
- Part number and program revision used
- Machine and operator/shift
- Setup, material lot, and tool condition
- Defect type and inspection result
- Corrective action taken

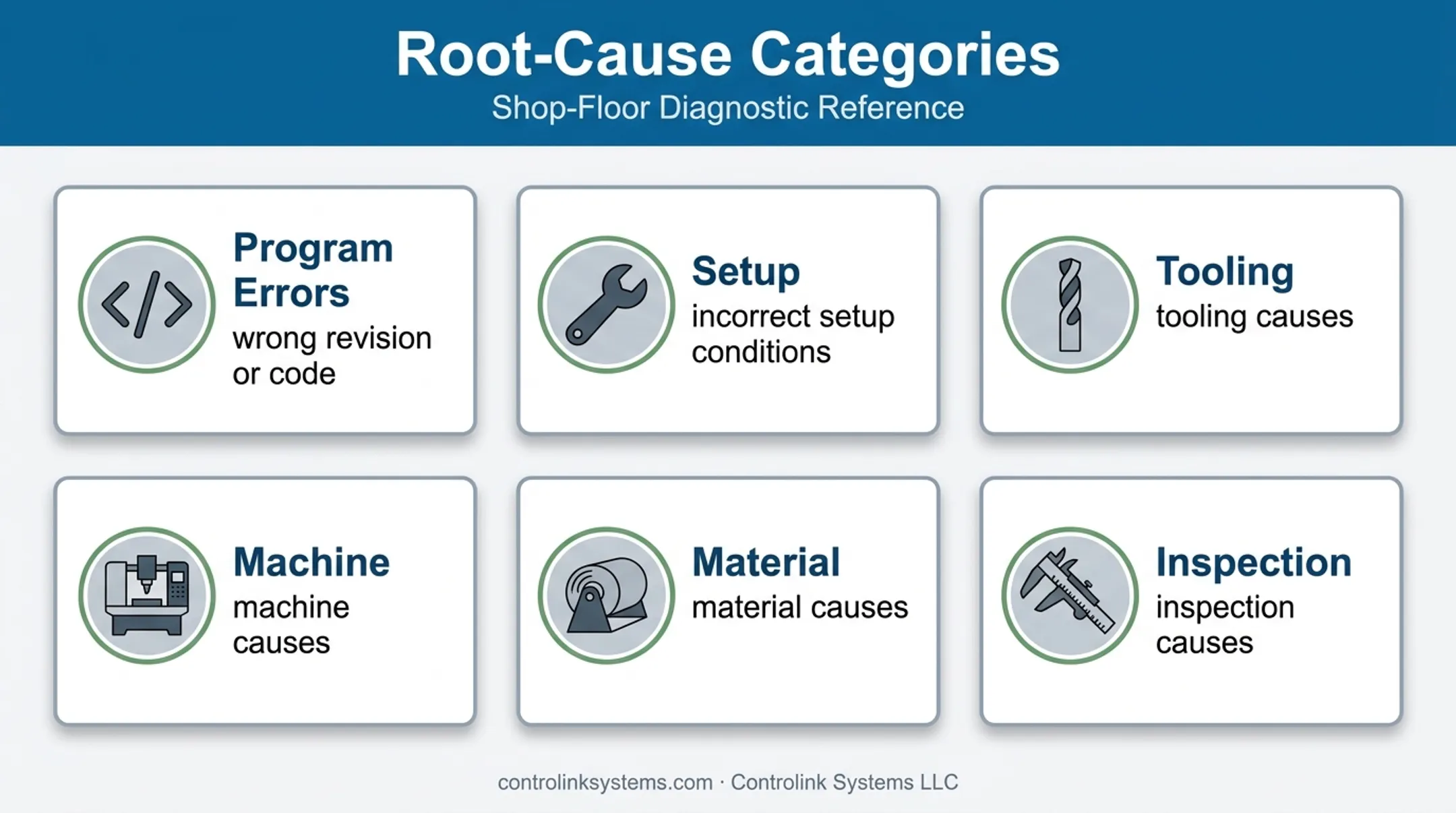

Build a Defect Taxonomy
Separate causes so patterns actually show up:
- Program/revision error
- Setup or offset error
- Tooling or parameter issue
- Machine problem
- Material variation
- Drawing interpretation or inspection mistake
Once revision data sits alongside defect data, trend reviews become useful quickly. You can spot repeated failures right after a program change, defects clustered on one control type, or improvement after obsolete-file cleanup.
Document control has a track record here outside CNC specifically. Quality Magazine reported that Controlled Power Co. in Troy, Michigan cut paper usage by roughly 40% after adopting PC-based document control, while also saving time, reducing scrap, and supporting ISO 9001 compliance. The same mechanism applies on a CNC floor: controlled, traceable documentation cuts scrap and rework.

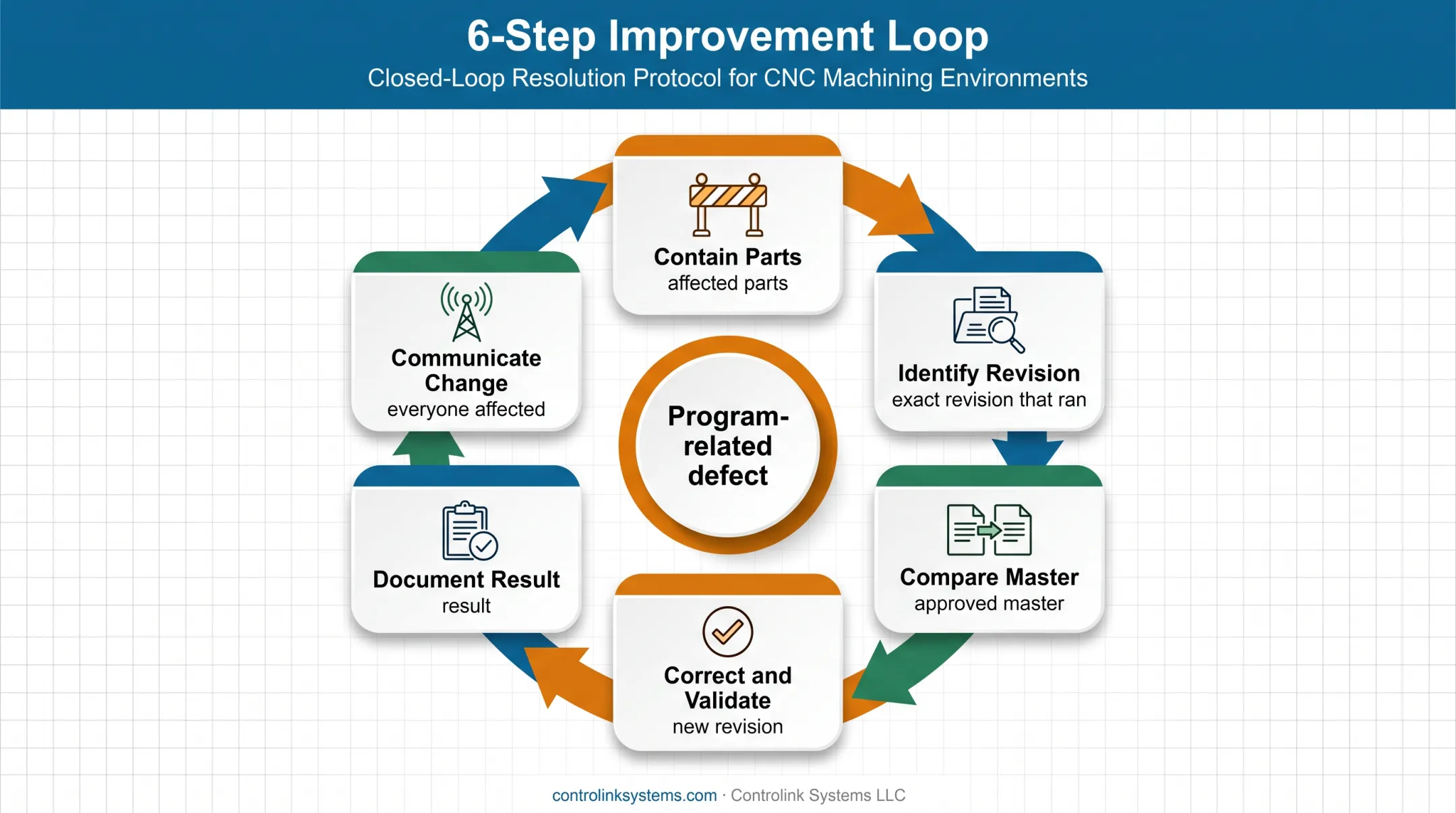

When you catch a program-related defect, run this improvement loop:
- Contain the affected parts
- Identify the exact revision that ran
- Compare it against the approved master
- Correct the process and validate the new revision
- Document the result
- Communicate the change to everyone affected
Tie each closed loop back to your FPY log. Over time, revision-linked failures should drop as obsolete programs stop reaching the machine.
How to Implement Revision Control in a CNC Shop
Rolling this out doesn't require replacing your systems overnight. Start narrow.
A Phased Approach
- Map current reality: where do programs actually live today, and who can edit them?
- Identify a pilot: pick one part family or one machine group, ideally something with a recent quality issue
- Write a concise SOP covering naming, revision numbering, approval authority, storage, transfer, operator verification, and rollback
- Train by role: programmers, engineers, quality staff, setup techs, and operators each need to know what to check and what to do when the file doesn't match the job paperwork
- Launch and measure: track revision compliance and FPY on the pilot before you expand
Early naming and storage choices matter as much as the rollout sequence. Combi Packaging Systems LLC ran into that before adopting Machine Link™. Its Milltronic control limited filenames to four numerical digits, which left no room for meaningful identification. Switching to its engineering print numbering system fixed the traceability gap directly.
Technology Should Support the Process, Not Replace It
For shops running a handful of machines, a documented SOP with disciplined manual controls can work. Past a certain scale, it gets harder. Scott Cooper, managing more than 30 CNC machines and 10 control types, described getting the right program to the right machine as a genuine daily struggle before automating file requests.
Controlink Systems offers a few tiers depending on shop size:
- Machine Link™ ($195): communicates with any machine in the shop
- Machine Link™ PLUS ($395): up to 6 machines simultaneously
- QUICK Serve ($1,700): up to 3 machines, with engineering-approval workflow built in
- QUICK Serve PRO ($4,000): up to 64 machines
What to Review After Launch
- Percentage of jobs with a recorded program revision
- Number of unapproved machine-side edits caught
- Revision-related nonconformances
- Time required to locate the approved file
- FPY on pilot jobs, tracked before and after
No public benchmark exists for these figures specifically. Treat your pre-pilot numbers as your own baseline, then measure improvement against yourself.
Conclusion
Correct G-code isn't the whole job. The right approved revision has to be identifiable, verified, distributed, used, and traceable — every single time a job runs. Miss any one of those links and you're back to guessing why a part failed.
Start small:
- Audit the path your programs take from engineering change to machine execution
- Pick one high-risk job as a pilot
- Assign real ownership to each step of that chain
If you're evaluating how to connect approved files to what's actually running on the floor, Controlink Systems has worked in CNC/DNC communications, shop-floor automation, and process monitoring since 1998. That link—approved revision to machine execution—is the problem they focus on.
Frequently Asked Questions
Can AI write a CNC program?
AI can help generate, translate, or document CNC code. Testing has shown that tools like GPT-4 can produce usable simple programs. Qualified personnel still need to validate post-processor output, tooling, offsets, and the approved revision before production use.
What is first-pass yield in CNC machining?
FPY is the percentage of parts accepted without rework or rerun. It matters because it measures process quality on its own, not what final inspection later catches or corrects.
Why does revision control matter for CNC programs?
It prevents outdated, duplicated, or unapproved files from running on the machine. When a program change does affect quality, it also gives you a clear trail back to exactly what happened.
How do you control CNC program revisions on the shop floor?
Use unique program identifiers, documented approval status, and controlled distribution to the machine. Require operator verification before cycle start, archive superseded files, and record which revision produced each job.
What should a CNC program revision checklist include?
Include the change reason, drawing and work-instruction alignment, tool and offset review, simulation or prove-out, formal approval, release status, affected machines, and a notice to everyone involved.
How can revision control reduce scrap and rework?
It cuts the odds of running obsolete or locally altered code in the first place. When something does go wrong, it also lets you trace the defect to the exact revision, machine, and process conditions quickly.
