Introduction
A schedule can be perfect on paper and still fail on the floor. The work order says machine 12 is ready for the 2 p.m. operation, but the operator is hunting through a shared folder for a file that might be the current revision, or might not be.
This gap between what the ERP says and what the machine actually receives costs real time. Every minute spent searching for a program, walking to engineering, or guessing between two similarly named files is a minute the spindle isn't cutting.
It is written for CNC machine shops, schedulers, manufacturing engineers, CNC programmers, and shop-floor managers running ERP, scheduling, DNC, or machine-monitoring systems.
We'll cover how ERP-to-CNC program delivery works, where it adds measurable value, what it can't replace, and when full integration makes sense for your shop.
Key Takeaways
- Tie schedule and work orders to the approved CNC program, tooling data, machine assignment, and revision status.
- Deliver controlled flow: the right approved program, to the right machine, for the right job.
- Depend on clean master data, revision governance, and reliable shop-floor feedback.
- Cut manual handoffs without replacing programming expertise or operator judgment.
What Is Job Shop ERP Integration for CNC Program Delivery?
Job shop ERP integration for CNC program delivery links your ERP or job-shop management system's scheduling and work-order records with CNC/DNC communications. Program files and related production data then move with the scheduled operation instead of relying on manual lookup.
When a job reaches a machine, the operator identifies the correct work order and retrieves the engineering-approved program tied to that job, part, operation, and revision.
Four functions make this work:
- ERP manages the business and production records — orders, routings, work orders.
- Scheduling determines priorities, timing, and machine assignment.
- Document or revision control governs which file is currently approved.
- DNC/CNC communications physically move programs between systems and machines.
Integration architecture varies widely. It might be a direct ERP-to-DNC connection, or a coordinated workflow using APIs, database queries, controlled file exports, or a mix of these.
There's no single blueprint every shop needs to follow. A five-machine job shop and a fifty-machine aerospace supplier will reasonably land on different setups.
Why This Integration Is Used in Job Shops and Where It Applies
High-mix, low-volume shops face a specific risk: the wrong CNC program reaching the machine. A 2023 peer-reviewed review describes HMLV production as involving many part numbers in small quantities, varied routings, and high cycle-time variance. Those conditions make manual file selection error-prone, not just inconvenient.
This shows up across the full job lifecycle:
- Quote or order entry
- Work-order creation and scheduling
- Programming and engineering approval
- Operation release and machine execution
- Completion reporting and revision history
Common applications include CNC milling, turning, Swiss machining, wire EDM, cutting, and probing: anywhere a program has to reach a machine before the operator can run the job.
Typical delivery triggers:
- A work order is released
- An operation moves into a ready state
- A scheduler assigns a machine
- An engineering revision is approved
- An operator requests the current program at the control

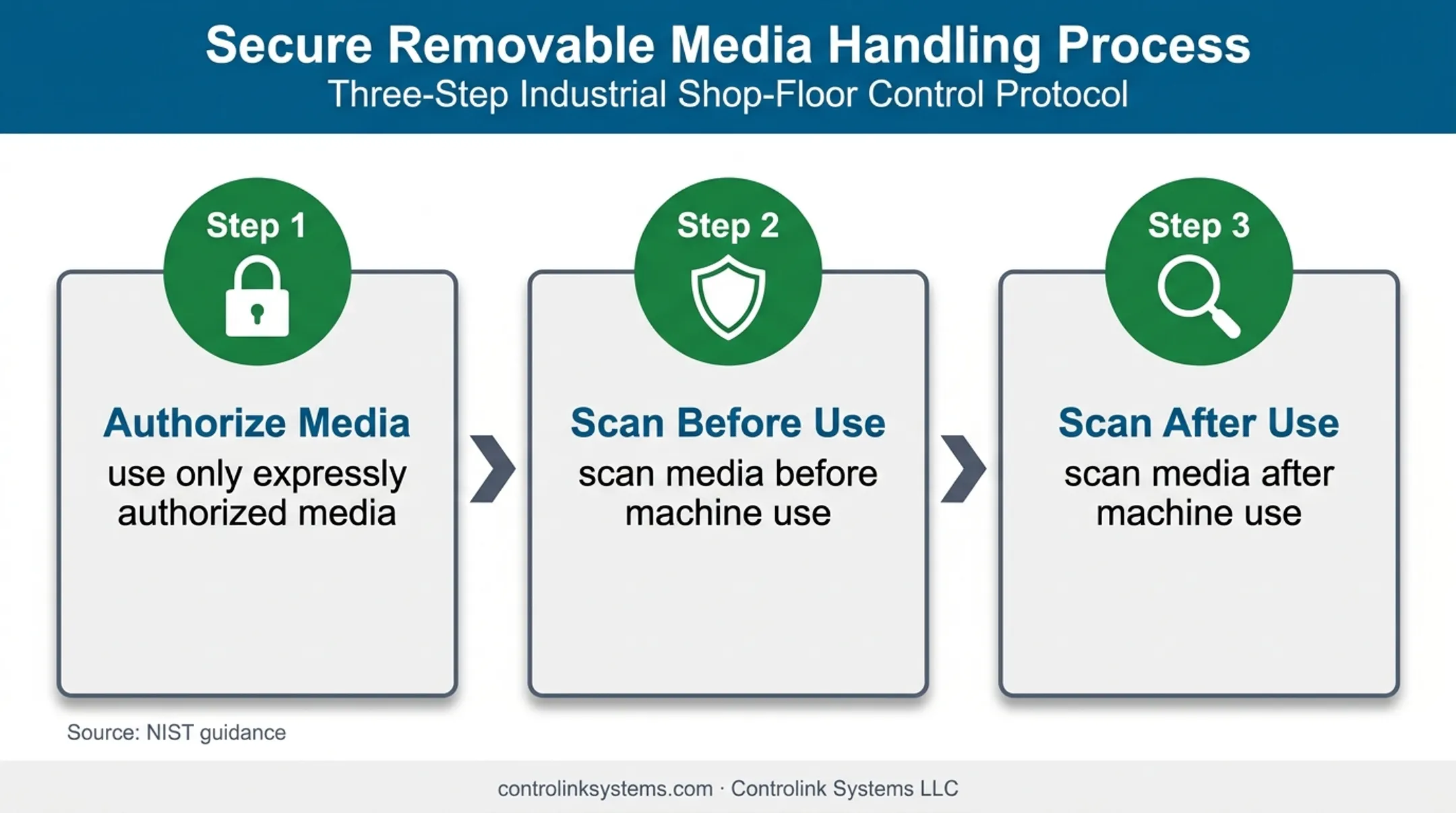

Uncontrolled production files carry real risk beyond wasted time. NIST guidance on portable storage media in operational environments recommends prohibiting media unless expressly authorized, and scanning it before and after use. That guidance responds directly to how easily an unmanaged USB drive or shared folder becomes a vector for outdated or malicious files reaching a machine control.
For most job shops, this is an operational best practice, not a regulatory mandate. Regulated sectors like aerospace and medical devices typically layer on stronger traceability, approval, and record-retention requirements. The underlying rule still applies everywhere: control what reaches the machine.
How the ERP-to-CNC Program Delivery Process Works
Picture a revised precision-machined bracket moving from scheduling to a CNC turning center. The work order carries the data that has to travel with it:
- Work-order number, part number, and operation number
- Quantity, due date, and routing
- Machine assignment
- Program identifier, revision, and approval status
The ERP schedule establishes production context: which job has priority, which operation is ready, and what prerequisites (fixturing, first-piece sign-off) must clear before release. The integration then locates the correct CNC program through a controlled identifier or link, rather than an operator browsing an unstructured folder and guessing between "Bracket_v3" and "Bracket_v3_FINAL."
Before delivery, the system checks that the program is current, approved, and compatible with the intended controller. Delivery itself might happen at a shop-floor terminal, through a DNC server, or via direct transfer to the machine control — the right method depends on your machine connectivity and existing architecture.

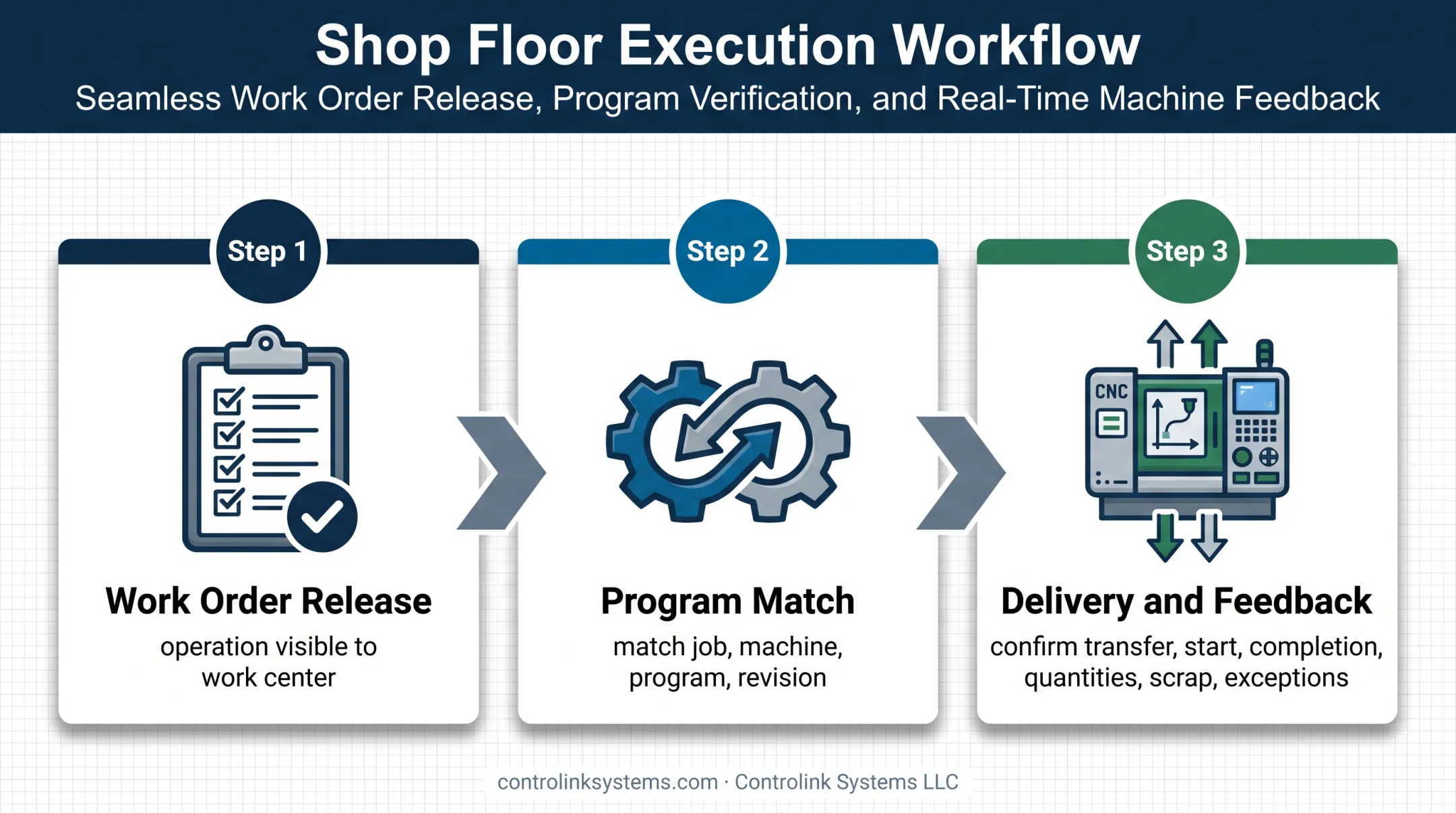

Step 1: Work Order Release and Visibility
The ERP creates or releases the work order and makes the scheduled operation visible to the responsible work center. This includes everything needed to identify the job unambiguously: part number, operation number, machine assignment, and due date.
Step 2: Resolving the Program-to-Job Relationship
The integration matches the work order to the correct part, operation, machine, program, and revision. If a required program is missing, unapproved, or incompatible with the assigned controller, this is where the exception should surface — before the operator ever sees it at the machine.
Step 3: Delivery, Confirmation, and Feedback
The approved program reaches the machine, the operator confirms the selection, and status flows back: transfer success, operation start and completion, quantities, scrap, and any exceptions.
Controlink Systems LLC has built this ERP-to-CNC link for job shops since 1998, tying CNC/DNC communications to SQL databases, PLC hardware, and motion controllers.
At Snavely's Machine, a shop running 30+ CNC machine tools across 10 different control types with 40 operators, getting the right program to the right machine had become "quite an ordeal" before controlled delivery was in place. Machine Link™ QUICK Serve continuously monitors machines for file requests and serves the current file directly to the control, so the operator never has to leave the machine.
Where the Process Adds Value and What It Does Not Replace
The measurable benefits of controlled program delivery are fairly intuitive once you've watched an operator lose twenty minutes to a file search:
- Reduced program-search time
- Fewer obsolete-file incidents
- Less manual rekeying of transfer information
- Improved machine utilization
- Stronger traceability of who ran what, when
That rekeying risk shows up on real shop floors. An August 2000 Timken Company case found that direct database-to-DNC program transfer reduced manual data-entry errors caused when operators typed transfer information by hand. The detail is small, but it compounds across dozens of jobs a week.
What integration does not do: it controls access and delivery, not process validation. Sending the correct file doesn't confirm that tooling, fixturing, offsets, or workholding are correct for that specific run. Those checks still belong to people.
Human responsibilities that remain essential:
- CNC programming and engineering approval
- Setup verification at the machine
- Operator checks before the cycle starts
- Quality inspection and first-piece sign-off
- Judgment calls on exceptions
This kind of integration fits best where handoffs repeat, such as recurring work orders moving through a known set of machines. A genuine one-off job with no digital program library might not need full integration; a simpler controlled process may be enough.
Key Factors, Common Issues, and When It May Not Be Appropriate
Several factors determine whether integration works reliably or becomes another source of confusion.
- Data and naming standards: Part numbers, work-order IDs, operation numbers, machine IDs, program names, and revision codes need to match consistently, or the system can't reliably link the right file to the right job.
- Revision and approval control: Define one source of truth, a clear approval workflow, and an audit trail. Without them, an outdated program can look identical to the current one.
- Machine and controller compatibility: Many older CNC controls still rely on RS-232 with limited onboard memory. Large programs often need drip-feeding from the DNC system as the control runs (2017 DNC guide); test that path before go-live.
- Scheduling and release logic: Define exactly what event triggers program delivery, and how rescheduled operations, split runs, or last-minute machine substitutions get handled.
- Security and resilience: NIST's OT security guidance recommends access controls, malware scanning, and logging of who transferred what and when. Those are practical safeguards, not compliance theater.
- Feedback and exception handling: Decide upfront what happens when a transfer fails, a program is missing, or a revision changes mid-job.
- Integration architecture: API, database, file-based, and middleware approaches each carry tradeoffs; older equipment often needs adapters or dedicated communications hardware.
- Implementation scope: Start with a pilot — a handful of machines, programs, and users — before rolling out shop-wide.
Common misconceptions:
- ERP integration is not automatic CNC optimization.
- A successful file transfer doesn't guarantee a good part.
- A digital schedule built on outdated work-order or capacity data isn't trustworthy, no matter how automated the delivery is.
Full integration may not make sense for very small shops with no centralized program library, highly manual prototype work, or disconnected legacy controls where the cost outweighs the risk it prevents.

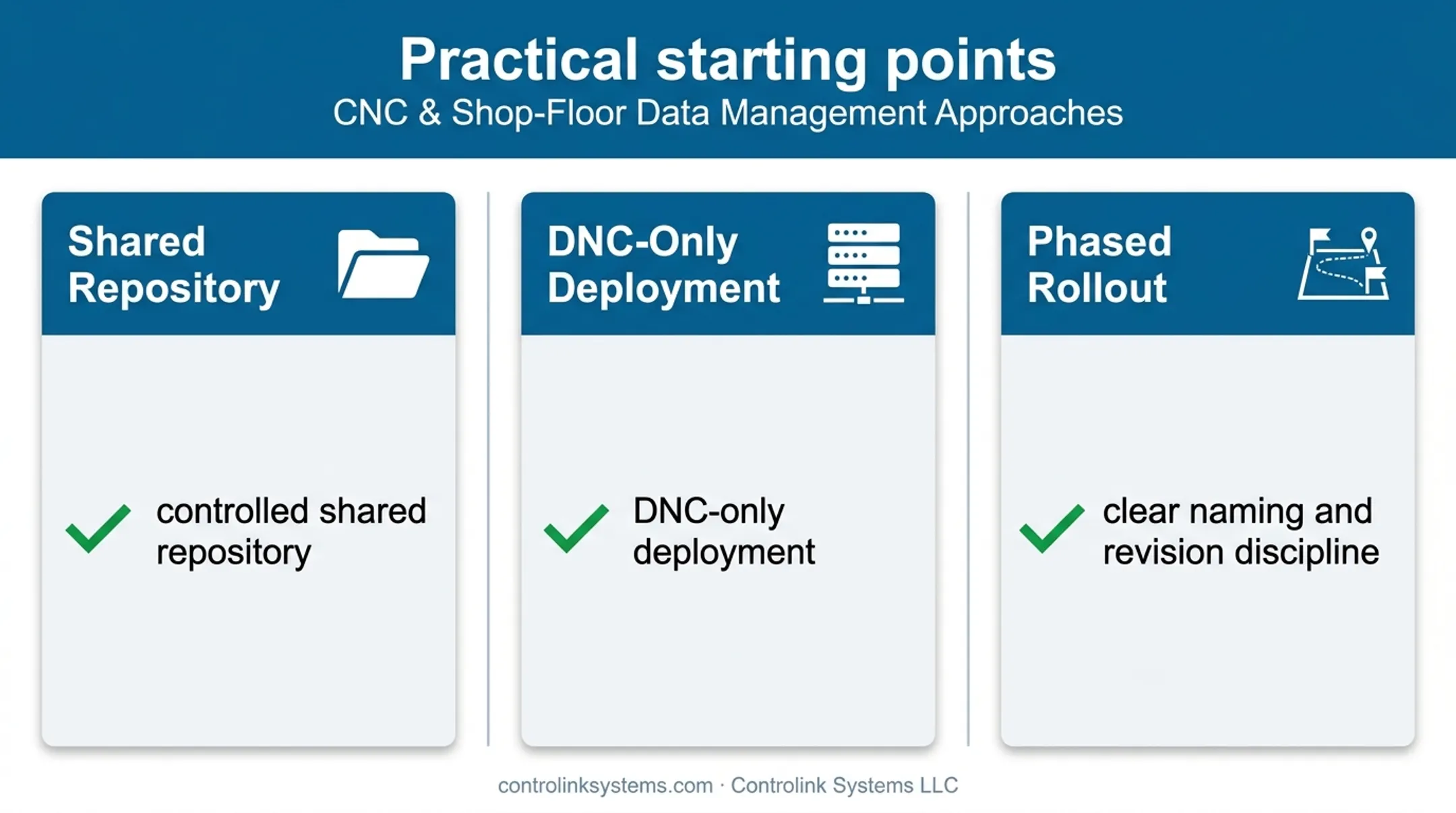

In those cases, a controlled shared repository, a DNC-only deployment, or a phased rollout (still governed by clear naming and revision discipline) is often the more practical starting point.
Conclusion
Job shop ERP integration for CNC program delivery builds a controlled path from the schedule and work order to the program the machine actually needs. The payoff is tighter coordination of priorities, approved revisions, machine context, and shop-floor feedback flowing back into the system.
Getting there means defining ownership, cleaning up your data, validating machine compatibility, and piloting before you scale. Choose the architecture that fits your equipment and process maturity—not a copy of what another shop installed.
Frequently Asked Questions
What are the four types of ERP?
Classifications vary by vendor. SAP groups deployment as cloud-based, on-premises, two-tier, or hybrid; other analysts sort ERP by company size, industry, or functionality. For job shops, fit for scheduling and CNC/DNC connectivity matters more than the label.
Which ERP is best for manufacturing?
There isn't one best system. Match the platform to your production model, scheduling complexity, and machine connectivity needs, and judge it on CNC/DNC workflow support rather than brand recognition alone.
Which ERP is best for small business?
Small shops should prioritize ease of use, implementation cost, job costing, and available integrations over feature count. A smaller system with reliable CNC/DNC connectivity often beats a feature-heavy platform that nobody has time to configure.
How does ERP integration improve CNC program delivery?
It links the scheduled operation and work order to an approved program, cutting manual searching and rekeying while creating a traceable handoff. Operator and engineering checks still remain part of the process.
What information should a job shop share when planning an ERP-to-CNC integration?
Bring the details that define the handoff:
- ERP/scheduling fields and work-order structure
- Program naming, storage, and revision rules
- Machine/controller types and communication methods
- Production feedback you want returned
That groundwork drives how cleanly the integration runs once it's live.
