Introduction: Why CNC Shops Need More Than Basic Production Tracking
Sending the wrong CNC program revision to a machine can turn a routine job into scrapped material and a missed delivery date. Many shops still rely on USB drives, shared folders, or a printed traveler taped to the machine to tell an operator which file to run. That works until it doesn't.
Machine downtime often goes unnoticed until a production delay has already happened. A 2025 Fluke industry release reported that 55% of US manufacturers experienced unplanned downtime in the prior year, with losses reaching as much as $207 million weekly across the sector.
Shop floor control software connects CNC program delivery, engineering approvals, revision history, and machine activity into one controlled workflow. This article covers:
- What shop-floor coordination looks like in practice
- Features that matter most for CNC program control
- How shop floor control compares to DNC, MES, and ERP
- What to evaluate before you implement a system
Key Takeaways
- CNC-focused shop floor control creates one reliable path from an engineering-approved program to the intended machine.
- Revision history, permissions, and audit trails prevent outdated or unapproved files from reaching production.
- Machine activity data helps supervisors respond faster to downtime, delays, and unexpected states.
- The right system should integrate with existing CNC equipment and business platforms, not force a full replacement.
What Shop Floor Control Software Does for CNC Shops
Shop floor control software is the execution layer. It takes a production plan or engineering instruction and turns it into controlled, trackable work at the machine. For CNC shops specifically, this is more than generic work-order tracking.
A CNC-specific system coordinates:
- Which part program is approved and current
- Which machine the program is assigned to
- Revision status and change history
- Operator actions at the machine
- Machine feedback (running, idle, alarm, offline)

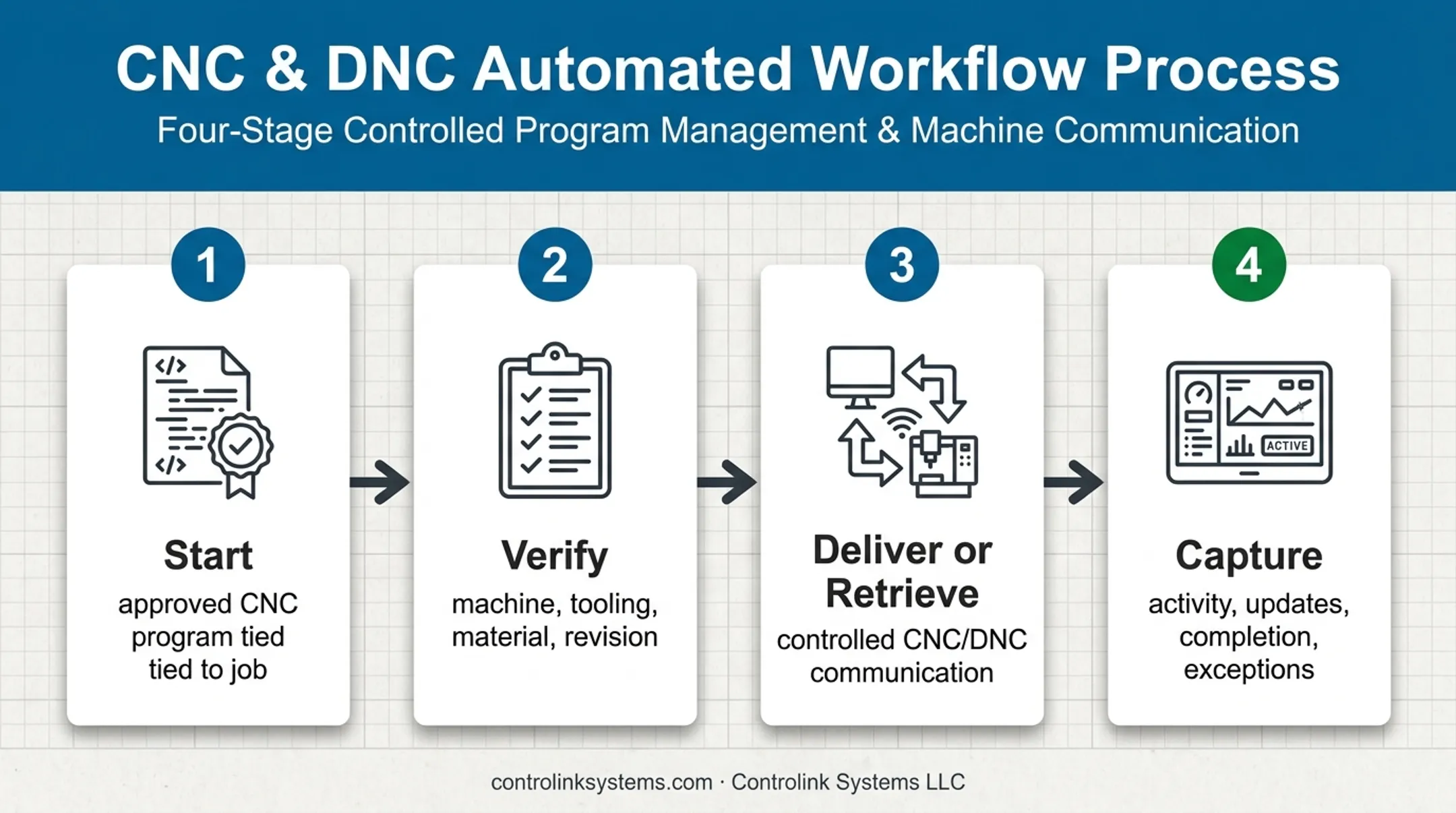

The End-to-End Workflow
A controlled CNC workflow typically follows this sequence:
- Start with an approved CNC program tied to the job or work order
- Verify machine, tooling, material, and program revision before release
- Deliver or retrieve the file through controlled CNC/DNC communication
- Capture machine activity, operator updates, completion status, and exceptions in real time
Modern Machine Shop notes that CNC program headers should identify the part, revision, operation, and DNC storage location. Inadequate documentation confuses operators, wastes time, and can produce scrap or damaged machines. That's exactly the gap shop floor control is built to close.
A Central Source of Truth
Closing that gap means replacing local folders, USB drives, paper travelers, spreadsheets, and tribal knowledge with one system of record. Supervisors and programmers can see at a glance:
- Which program revision is currently approved
- Where that program was sent and when
- Which machine is running which job
- Whether a job is delayed
- What action needs to happen next
Essential Features for CNC Program Delivery, Revisions, and Machine Activity
Not every shop floor tool covers CNC execution well. Here's what a system built for machining environments actually needs.
Centralized Program Management
A searchable program library should put the right file in one place—no more guessing which folder holds the "real" version. At minimum it needs:
- Machine and part associations
- Controlled access and clear ownership of the master file
- Metadata such as revision, operation number, material, and tooling
Revision Control and Approval Workflows
This is where most informal systems break down. Look for:
- Version history with change descriptions
- Engineering sign-off before a file goes live
- Effective dates for new revisions
- Rollback capability if a change needs to be reversed
- Safeguards against accidental overwrites
Controlink Systems' Machine Link™ QUICK Serve is built around this loop. Edits made at the machine go back to engineering for review. The latest approved file then returns to the operator without anyone leaving the machine or touching a shop PC.
CNC/DNC Communication Requirements
The system has to talk to your actual controls, old and new. That means:
- Compatibility with your specific CNC controls (RS-232 serial remains the standard on many older machines)
- Reliable file transfer or drip-feeding for programs too large for onboard memory
- Transfer confirmation, not just a "sent" assumption
- Clear error handling when a transfer fails partway through
Machine Activity Monitoring
A useful system distinguishes between:
| State type | Examples |
|---|---|
| Directly collected machine data | Running, idle, alarm, offline (pulled from machine signals) |
| Manually entered status | Setup complete, downtime reason, part rejection notes |
Modern Machine Shop describes DNC-connected monitoring that captures operator ID, job number, cycle time, good/scrap counts, and reject codes through the same connection already used for program delivery. That's a reasonable baseline for what "machine activity" should mean.
Operator and Supervisor Interfaces
Operators shouldn't need to walk to a PC or hunt down a supervisor to confirm what they're running. A simple interface at or near the machine should support:
- Job lookup and program confirmation
- Status updates
- Issue reporting
Traceability and Reporting
NIST's manufacturing-data guidance recommends a release/revision record capturing source, destination, usage, and date — but warns that embedding audit data only inside program files makes audits cumbersome. A system-level audit trail linking revision, work order, machine, operator, and outcome is more reliable than comments buried in G-code.
Benefits of Coordinating CNC Programs and Machine Activity in One Place
Fewer Outdated-File Incidents
Poor program documentation drives operator confusion, wasted time, scrap, and even machine damage. Controlled delivery, where the machine only ever receives the current engineering-approved revision, removes the guesswork that causes these mistakes.
Faster Response to Downtime
Unplanned downtime is expensive and common. With 55% of US manufacturers hit by it in the past year according to Fluke's data cited earlier, visibility matters. Real-time machine status lets supervisors spot a stalled job or unexpected machine state before it becomes a missed shipment. They can coordinate maintenance or rescheduling immediately instead of an hour later.
Better Utilization Without the Legwork
A shared system cuts down on:
- Time spent searching for the correct file version
- Walking to a machine just to confirm status
- Manually reconciling production numbers at the end of a shift
Traceability for Regulated Work
For medical, aerospace, defense, and automotive parts, production records need to hold up under audit. Relevant requirements include:
- FDA QMSR / ISO 13485 for finished-device manufacturers
- 21 CFR 820.70 for verified, documented, and approved process changes
- IATF automotive guidance on checking traceability before parts move forward
Linking the released program revision directly to the job, machine, and operator gives shops an audit trail that does not depend on someone remembering which file was actually run.
Shop Floor Control Software vs. DNC, MES, ERP, and Inventory Systems
These terms get used interchangeably, but they solve different problems.

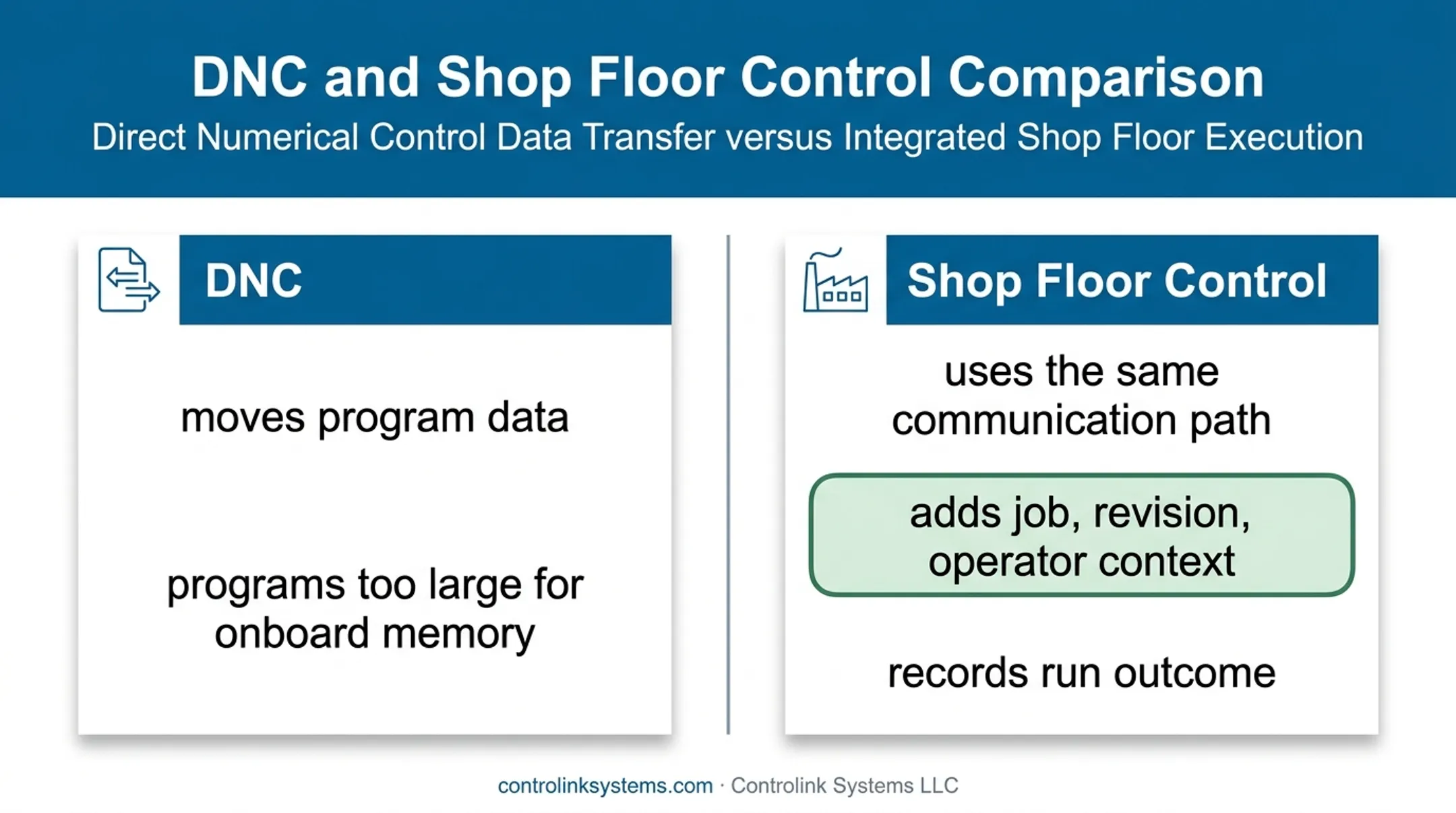

DNC vs. Shop Floor Control
DNC (direct numerical control) exists to move program data to and from a CNC control, originally because programs were too large for onboard memory. Shop floor control uses that same communication path but adds context: which job, which revision, which operator, and what happened during the run.
MES vs. Shop Floor Control
MES (manufacturing execution systems) typically covers a wider scope: quality, genealogy, maintenance, and performance reporting across an entire operation. Shop floor control can be deployed as a narrower execution layer focused specifically on CNC program and machine coordination, without requiring a full MES rollout.
ERP and Inventory Systems
ERP manages business planning: orders, purchasing, and inventory records. Inventory systems track stock levels and locations, but neither confirms what is actually running at the machine. Shop floor control fills that gap by verifying execution in real time.
| System | Primary Focus | What It Doesn't Cover Alone |
|---|---|---|
| DNC | Program transfer to/from machines | Job context, approvals, status |
| Shop Floor Control | Program + job + machine coordination | Broader quality/maintenance functions |
| MES | Full production/quality/maintenance operations | May be more than a focused CNC shop needs |
| ERP | Business planning, orders, inventory | Real-time machine execution |
Integration matters more than category. Whichever system you choose, it should exchange work orders, revision data, completion records, and downtime events with your other business systems where supported, rather than becoming another isolated data island.
How to Choose and Implement the Right System
Start With a Requirements Audit
Document how programs are currently stored, how revisions get approved, how files reach machines, and how job completion gets reported. Identify the riskiest manual handoffs, usually the ones involving a USB drive or a phone call.
Those gaps become your must-have requirements when you compare systems.
Evaluation Checklist
- CNC control compatibility, including older RS-232 machines
- Program versioning, rollback, and clear master-file ownership
- User permissions, approval workflows, and audit logs tied to work orders
- Real-time machine connectivity, status, alerts, and dashboards
- Database and API support for existing systems
- Scalability as machine count grows
Usability Drives Adoption
A system that operators avoid using won't help anyone. Sharn Enterprises reported that Machine Link™ was easy for staff across the shop to use with minimal training, and that tasks previously taking around 30 minutes were reduced to seconds. Look for:
- Simple interfaces at the machine
- Minimal duplicate data entry
- Role-based views for operators vs. supervisors
- A pilot group before shop-wide rollout
Common Implementation Risks
- Legacy equipment with inconsistent communication settings
- Inconsistent file naming across programmers
- Incomplete or unclear program libraries
- Unreliable network or serial connections
- No clear owner for master files A phased rollout, starting with a representative group of machines or part families, reduces the impact of these issues before they scale shop-wide.
Establish Baseline KPIs Before Deployment
Before deployment, measure your starting point on:
- Outdated-program incidents
- Time spent searching for or transferring files
- Machine downtime frequency and duration
- Scrap and rework rates
- Operator adoption and feedback Controlink Systems has built CNC/DNC communications and shop-floor automation software since 1998, with integrations across SQL databases, PLC hardware, and multiple communication protocols. If you need existing machines tied into broader business systems, review those integration capabilities with the provider before you commit.
Frequently Asked Questions
What is a shop floor control system?
Shop floor control software coordinates and monitors production execution in real time. For CNC shops, it connects work orders, program delivery, revision approvals, and machine activity into one visible workflow.
What software can I use to manage my shop?
It depends on your priority. Shops that need CNC program control and machine visibility should start with focused DNC/shop-floor tools. Operations that also need quality, maintenance, or planning functions may require MES or ERP integration.
What is the best software for managing shop inventory?
Inventory software tracks materials, tooling, and stock levels. For CNC shops, what matters more is whether it links material availability to work orders and machine execution—not how many inventory features it lists.
How does shop floor control software manage CNC program revisions?
Through controlled program libraries, engineering approval workflows, and version history tied to machine assignments. That creates traceability from the released revision to the completed job.
What is the difference between shop floor control software and DNC software?
DNC software primarily handles the communication between programs and CNC machines. Shop floor control builds on that connection to coordinate work orders, revisions, operator actions, machine status, and production reporting in one place.
