Protecting that investment takes two separate but connected efforts. First, you need to understand which US intellectual-property protections actually apply to your programs. Second, you need technical and operational controls that govern who can view, edit, transfer, or copy those files in the first place.
This article walks CNC machine shops and manufacturing teams through both pieces. It's general information, not legal advice. For decisions specific to your programs, contracts, or company, talk to an attorney familiar with intellectual property and manufacturing.
Key Takeaways
- Treat G-code, CAM outputs, setup sheets, and tooling data as separate assets with tailored protection.
- Pair legal protections with technical controls: access roles, approved repos, version control, and audit logs.
- Controlled distribution keeps machinists on the authorized program, cutting scrap and downtime.
- Revisit ownership and confidentiality terms whenever employees, contractors, or outside shops handle your programs.
Why G-Code Deserves Intellectual-Property Protection
G-code is the machine-readable instruction set that tells a CNC machine where to move, how fast to cut, and when to change tools. But the file itself is just the last link in a chain. Behind it sit CAD models, CAM toolpaths, post-processor settings, setup sheets, feeds and speeds, probing routines, and years of cycle-optimization experience.
That's what makes a program valuable, even though it looks like plain text. Decisions about operation sequencing, tolerance strategy, workholding, and tool selection reflect real manufacturing know-how. A competitor who gets hold of a finished program doesn't just get code; they get the answers to problems you already solved.
Because that know-how is easy to copy once the file leaves controlled systems, common exposure points include:
- Removable media (USB drives, memory cards) leaving the shop uncontrolled
- Personal email or unmanaged cloud storage used for "quick" file transfers
- Machinists running outdated revisions after unauthorized edits
- Departing employees or contractors retaining local copies
- Connected shop-floor systems with no logging of who accessed what
Classify Before You Protect
Not every file needs the same level of control. A useful exercise is sorting your manufacturing files into tiers:
- Public - marketing materials, general capability sheets
- Internal - standard operating procedures, non-sensitive setup notes
- Confidential - production G-code, proprietary process parameters
- Highly restricted - programs tied to customer IP, safety-critical instructions, or unique competitive processes
Programs revealing proprietary sequencing or customer-specific requirements deserve the strictest handling. Handle them far more tightly than a generic facing routine anyone could pull from a machining textbook.
Which IP Protections Can Apply to G-Code?
US law doesn't offer one blanket protection for "your G-code." Different pieces of it may qualify for different treatments, and understanding the distinctions matters before you assume a program is fully covered.
Copyright Protects Expression, Not Function
Under 17 U.S.C. § 102, original works of authorship fixed in a tangible medium can receive copyright protection, including computer programs. But the same statute excludes ideas, procedures, processes, systems, and methods of operation, regardless of how they're described.
The US Copyright Office's Circular 61 makes the practical point: protection covers the original, copyrightable expression in a program, not functional elements like algorithms, formatting, or system logic. In plain terms, copyright might protect specific comments or unique structural choices in your G-code. It generally won't stop someone from independently arriving at the same machining sequence to achieve the same result.

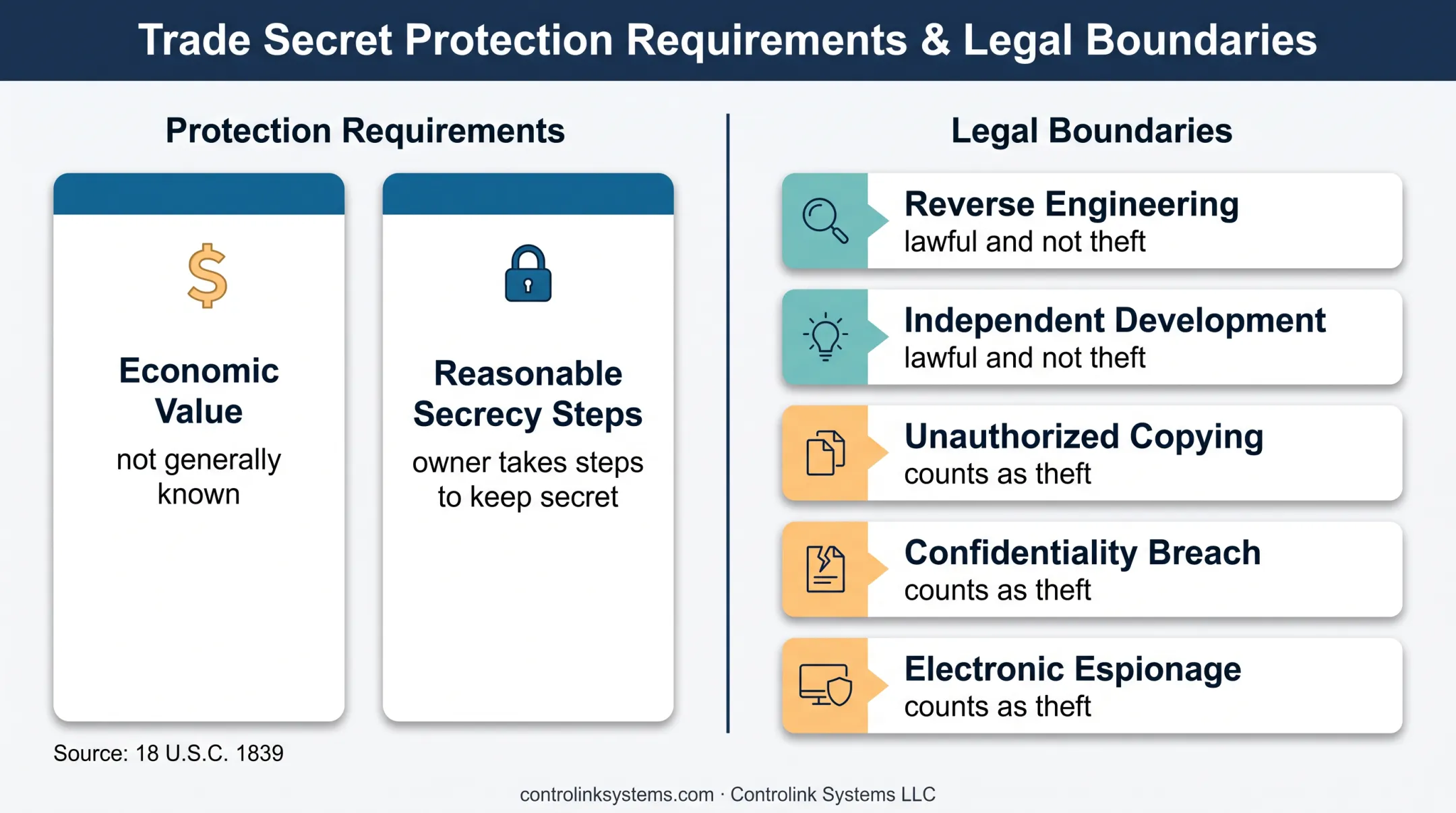

Trade Secrets Fit Confidential Process Knowledge
This is often the more useful protection for shop-floor programs. Under 18 U.S.C. § 1839, trade secret law explicitly covers technical, engineering, program, process, and code information, including data stored electronically, as long as two conditions hold:
- The information has economic value because it isn't generally known
- The owner takes reasonable steps to keep it secret
Lawful reverse engineering and independent development don't count as theft under this framework. But unauthorized copying, breach of a confidentiality duty, or electronic espionage do. The catch: if you don't actually restrict access, a court may find you never met the "reasonable steps" requirement, and the protection disappears.
Patents, Trademarks, and Ownership
- Patents may cover a novel, non-obvious manufacturing process, but filing requires disclosure—weigh that before any public release or sale.
- Trademarks protect your company name and logo, not the machining instructions themselves.
Ownership is separate from those protections. Work an employee creates within their job duties typically belongs to the employer. A contractor's work usually doesn't, unless a signed work-made-for-hire agreement fits a statutory category.
Taken together, these options map cleanly against what G-code can and cannot protect:
| Protection | Covers | Doesn't Cover |
|---|---|---|
| Copyright | Original expression in code/comments | Algorithms, methods, functional logic |
| Trade Secret | Confidential process/program info kept secret | Independently derived or reverse-engineered info |
| Patent | Novel, non-obvious processes (if filed) | Anything publicly disclosed before filing |
| Trademark | Company names, logos | Machining instructions |
How to Control Who Can Access and Copy G-Code
Legal protections only work if you can show you actually controlled the information. That's where technical and operational controls come in.
Identity, Roles, and Removal
Start with individual accounts, not shared logins. NIST SP 800-171r3 recommends limiting access to what each role genuinely needs, separating duties between programmers, engineers, operators, and administrators. When someone leaves or changes roles, access should be revoked promptly, not "whenever IT gets to it."
One Approved Source of Truth
Production programs should live in a single controlled location with:
- Revision numbers and approval status
- Clear ownership
- Change history
- Links to setup sheets and tooling documentation
Controlink customer Ametek follows this model: corrected CNC copies sit in an Engineering folder for review before they enter the official program library. Nobody runs a file straight from someone's desktop.
Controlling Movement On and Off the Floor
Restrict removable media, personal email, and unmanaged cloud storage for program transfers. Define an approved process for vendor and contractor file exchanges instead of leaving it to individual judgment.

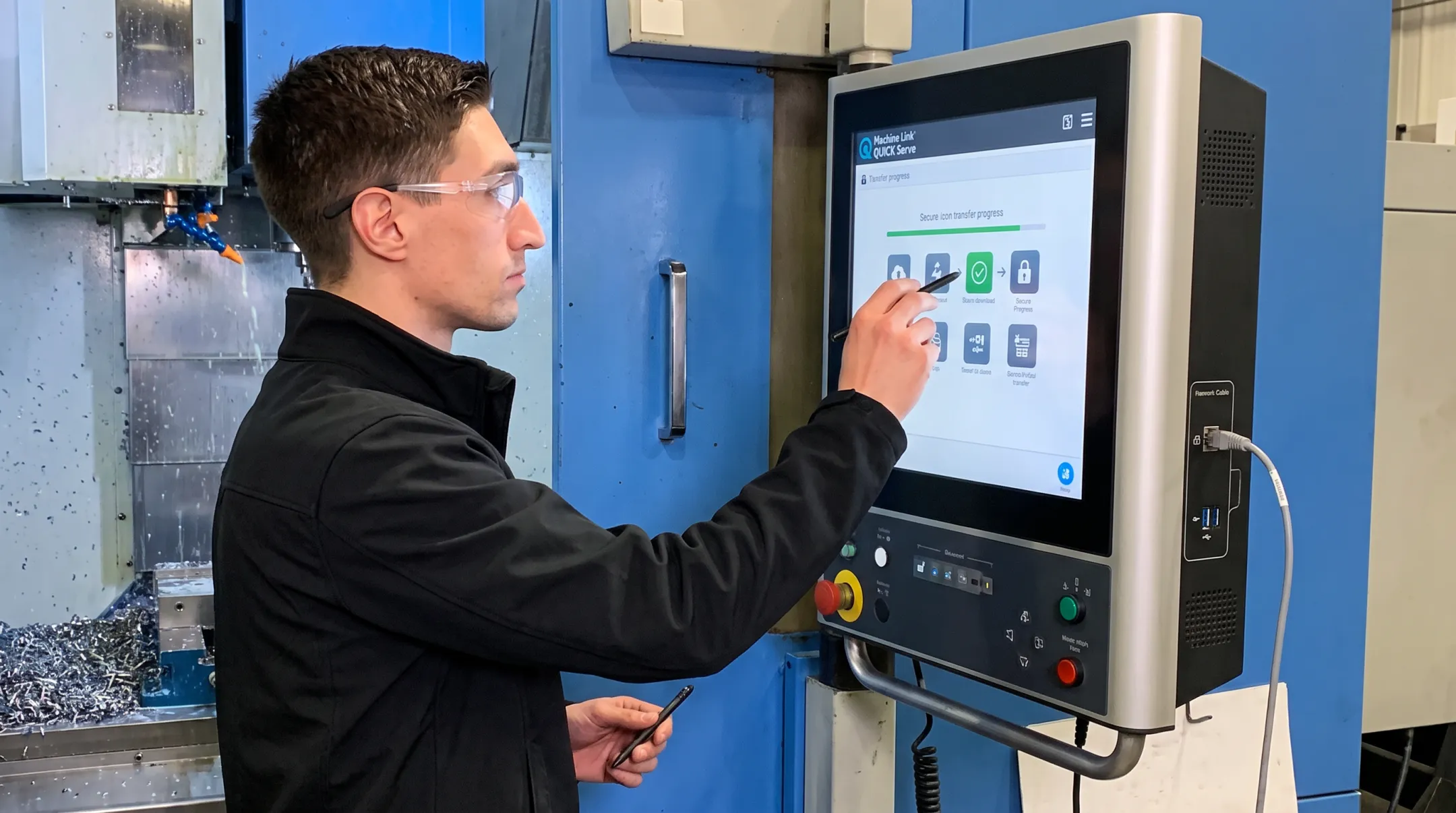

Our Machine Link™ QUICK Serve software closes that gap. Instead of machinists carrying files on USB drives or emailing programs to themselves, the system serves the current engineering-approved file directly to the machine control on request. Operator edits at the machine route back to engineering for review before becoming the new standard.
If encryption or role-based authentication matter for your compliance requirements, confirm those capabilities for your specific configuration.
Pair Controls With Operational Checks
- Require engineering sign-off before any program release
- Verify revision numbers at the machine before a cycle starts
- Block unapproved edits to released files
- Document a clear emergency-change procedure so operators aren't tempted to bypass controls under deadline pressure

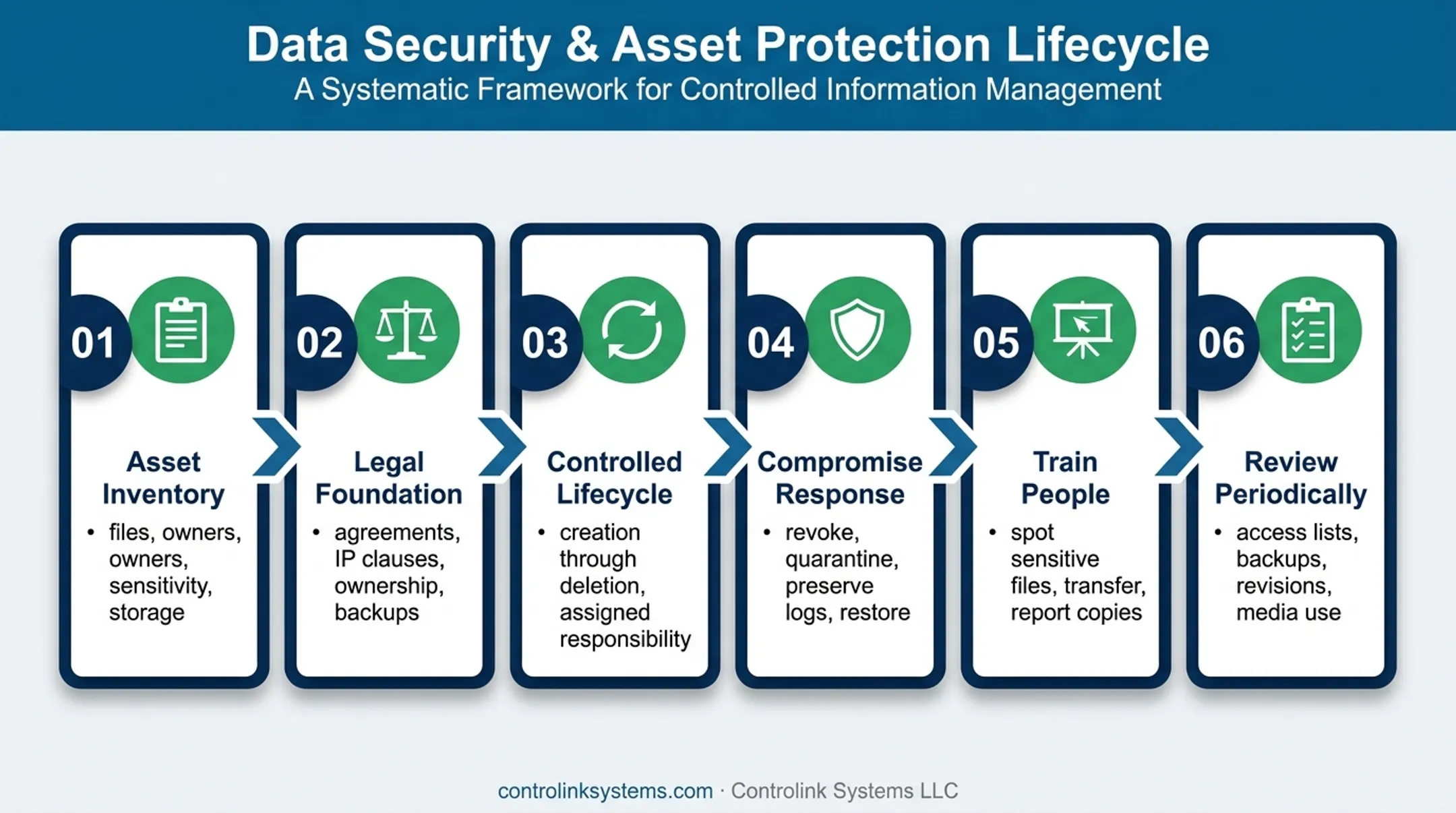

Build a Practical G-Code IP Protection Program
A protection program works best as a repeatable process, not a one-time cleanup.
1. Build an asset inventory. List every G-code file, CAM file, post-processor, machine offset, probing routine, and setup sheet. Record the owner, sensitivity level, storage location, and what happens if it's disclosed or altered without permission.
2. Put the legal foundation in place. Cover confidentiality agreements, IP clauses in employment and contractor agreements, customer and supplier terms on program ownership, and rules for backups and derivative programs. Don't assume a verbal understanding with a longtime contractor will hold up if a dispute arises.
3. Design a controlled lifecycle. Map out creation, review, testing, approval, release, machine transfer, revision, archival, and secure deletion. Assign someone responsible for each stage, so approval doesn't quietly become "whoever's at their desk that day."
4. Prepare for compromise before it happens. Know in advance how you'll revoke access, quarantine a suspicious file, preserve logs, and restore a known-good revision. Decide who gets notified and when legal or cybersecurity specialists get pulled in.
5. Train your people. Train machinists, programmers, and supervisors to spot sensitive files, use approved transfer methods, and report unauthorized copies instead of working around them.
6. Review periodically. Recertify access lists, check for dormant accounts, test backup restores, audit revisions, and review removable-media use. Confirm controls still match current machines and workflows—shop floors change faster than policy documents.
Common Mistakes When Protecting CNC Programs
Even well-intentioned shops fall into predictable traps:
- Relying on weak controls. File extensions, hidden folders, and a password shared by an entire shift don't establish real confidentiality or accountability.
- Protecting the file but not the surrounding data. Tooling choices, offsets, inspection routines, and machine settings can reveal the same process even if the G-code itself is locked down.
- Assuming a contract stops all copying. Copyright and confidentiality agreements have limits. Independent creation, authorized use, and lawful reverse engineering all complicate enforcement.
- Over-restricting until operators find workarounds. If controls slow legitimate production fixes, machinists take unauthorized shortcuts. Keep workflows practical for troubleshooting and approved emergency changes.
Frequently Asked Questions
Is source code protected by copyright?
Original source code can qualify for copyright protection as a literary work. Copyright protects that expression, not the underlying ideas, methods, or functional concepts. That distinction matters for G-code. Talk to an attorney about your particular program.
What are the three types of intellectual property protections?
Copyright, patents, and trademarks are the categories most commonly discussed. For confidential G-code and manufacturing know-how, trade secret protection is often just as relevant, if not more so.
What are the three things not protected by copyright?
Copyright generally doesn't protect ideas, facts, or methods and procedures. The specific, original expression used to describe or implement them may still receive protection. This is a general summary, not legal advice.
What is the intellectual property code?
There isn't one single "IP code" in US law. Rights come from separate federal statutes: the Copyright Act, the Patent Act, the Lanham Act for trademarks, and the Defend Trade Secrets Act. For a specific issue, consult the relevant statute and qualified counsel.
