Introduction
ERP/MES-triggered CNC program delivery is a controlled workflow where an approved machining program is selected and transferred to a CNC machine over a TCP/IP network. CNC machine shops, manufacturing engineers, production managers, and IT/OT teams use it to connect business systems to the shop floor—without hand-carrying programs or guessing which file is current.
Get it wrong and the consequences are real. Sending the wrong revision, an unapproved file, or a program to the wrong machine creates scrap, downtime, quality escapes, and gaps in your traceability records.
This article breaks down the roles of ERP, MES, DNC, TCP/IP, and the CNC control. Then we'll walk through the approval-to-download flow, the safeguards that keep it controlled, where it falls short, and what to weigh before you implement it.
Key Takeaways
- Keep ERP on business and production records, MES on execution, and DNC on controlled CNC file delivery
- Treat TCP/IP as transport only; approval, revision validation, and authorization still need separate controls
- Validate the program, confirm the machine, transfer the file, and log every step in one closed workflow
- Weight permissions, acknowledgements, fallbacks, and operator usability as heavily as the transfer itself
What Is ERP/MES-Triggered CNC Program Delivery?
In practical terms: an ERP or MES event, such as a released work order or a production start, triggers a request for the correct CNC program from a controlled repository. No manual searching. No guessing which revision is current.
Four Systems, Four Distinct Jobs
Under the ISA-95 model, business systems and shop-floor control systems sit at different levels for a reason. ERP owns the business-logistics layer; MES handles manufacturing operations closer to the machine.
That separation isn't bureaucratic overhead. It keeps a front-office scheduling change from accidentally overwriting a validated toolpath on the floor.
| System | Primary Role | Relevance to CNC Delivery |
|---|---|---|
| ERP | Orders, routings, resources, inventory, business status | Supplies the "what job, what revision" context |
| MES | Dispatching, operator instructions, machine status | Triggers or gates the delivery event |
| DNC / program management | Program storage, revision control, machine destinations | Resolves and routes the actual approved file |
| CNC controller | Receives and executes the program | Loads and runs only what the operator permits |
A Download Isn't a Run Command
This is where a lot of people get confused. Receiving a file and running it are two different events. The workflow should treat these as separate control points, not one automatic chain reaction:
- File transfer to the machine or DNC drop point
- Operator load of the received program
- Verification against the released revision
- Cycle start only after the operator permits it
TCP/IP is simply the communication foundation, whether it's system-to-system or a program-management service talking to a CNC control. The exact application protocol, controller configuration, and machine interface still need confirmation during implementation. Not every control speaks the same language over Ethernet.
Compare that to how many shops still operate: USB drives, walking files across the floor, or pulling from a shared folder where anyone can rename or edit a file. Those methods work until a stale copy gets loaded and nobody notices. A controlled workflow gets the right, engineering-approved program to the right machine, with a record of what was sent and when.
Why Machine Shops Use This Workflow
High-mix, low-volume shops juggle hundreds of programs across dozens of machines, often with multiple active revisions per part. Manual file handling breaks down fast—wrong revisions slip through, and operators lose time chasing files.
Operational payoffs show up fast:
- Less time spent hunting for the right file version
- Lower risk of an obsolete program getting loaded
- Better machine utilization since setup delays shrink
- Clearer visibility into which program is running, and where
Revision control isn't a nice-to-have here. An engineering change can touch toolpaths, work offsets, feeds and speeds, probing routines, safety moves, or inspection steps. Load the wrong version and you might not find out until a part fails inspection, or worse, ships.

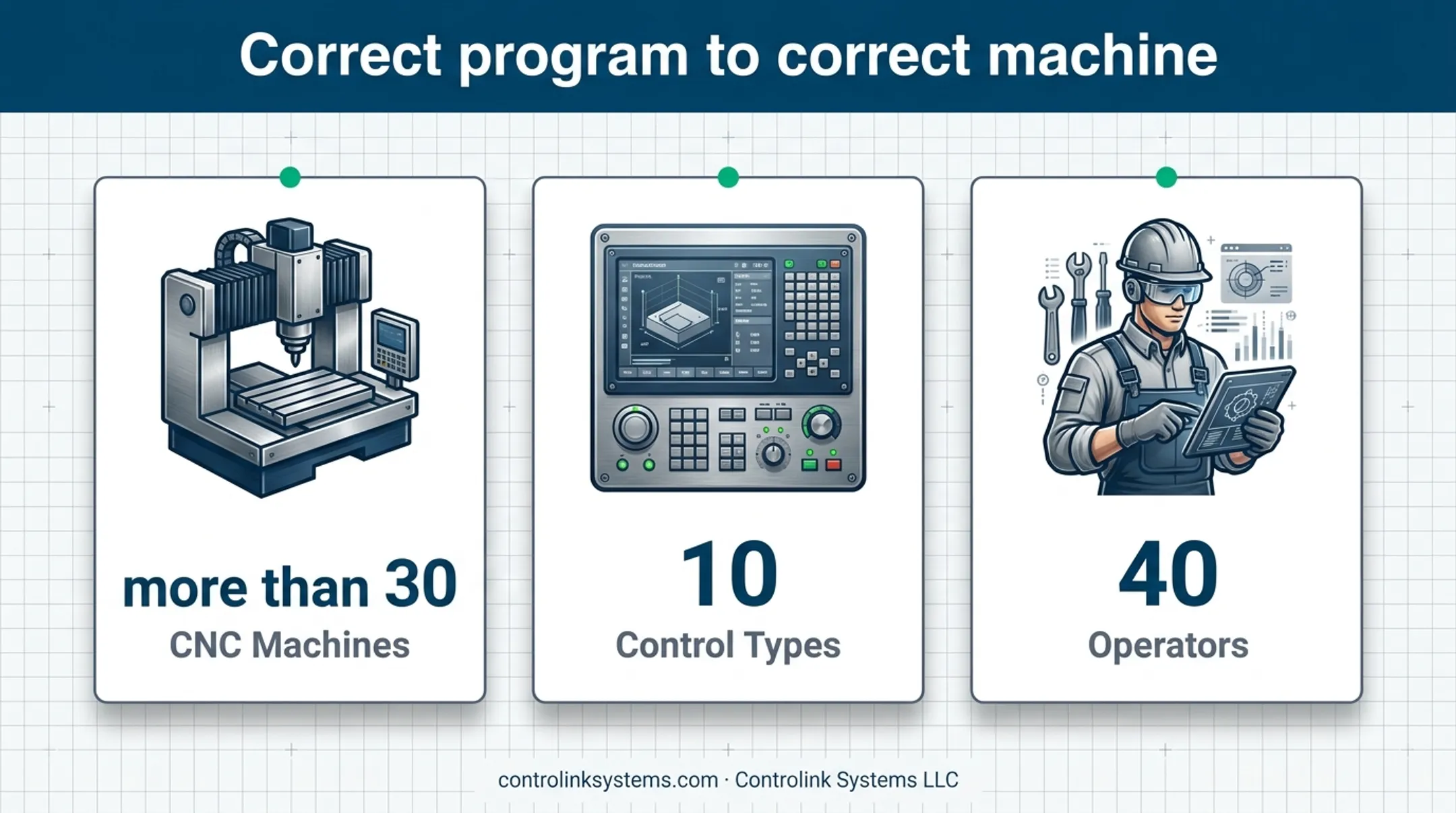

Snavely's Machine hit that wall at scale. With more than 30 CNC machines, 10 control types, and 40 operators, getting the correct program to the correct machine had become, in their words, an ordeal.
That isn't a niche complaint. It's what happens when file control can't keep up with shop-floor complexity.
Weak delivery controls show up as scrap, rework, missed ship dates, and production history nobody can fully trace. When a customer asks which program made a part six months ago, "we think it was this one" isn't an acceptable answer.
How the Approved CNC Download Works Over TCP/IP

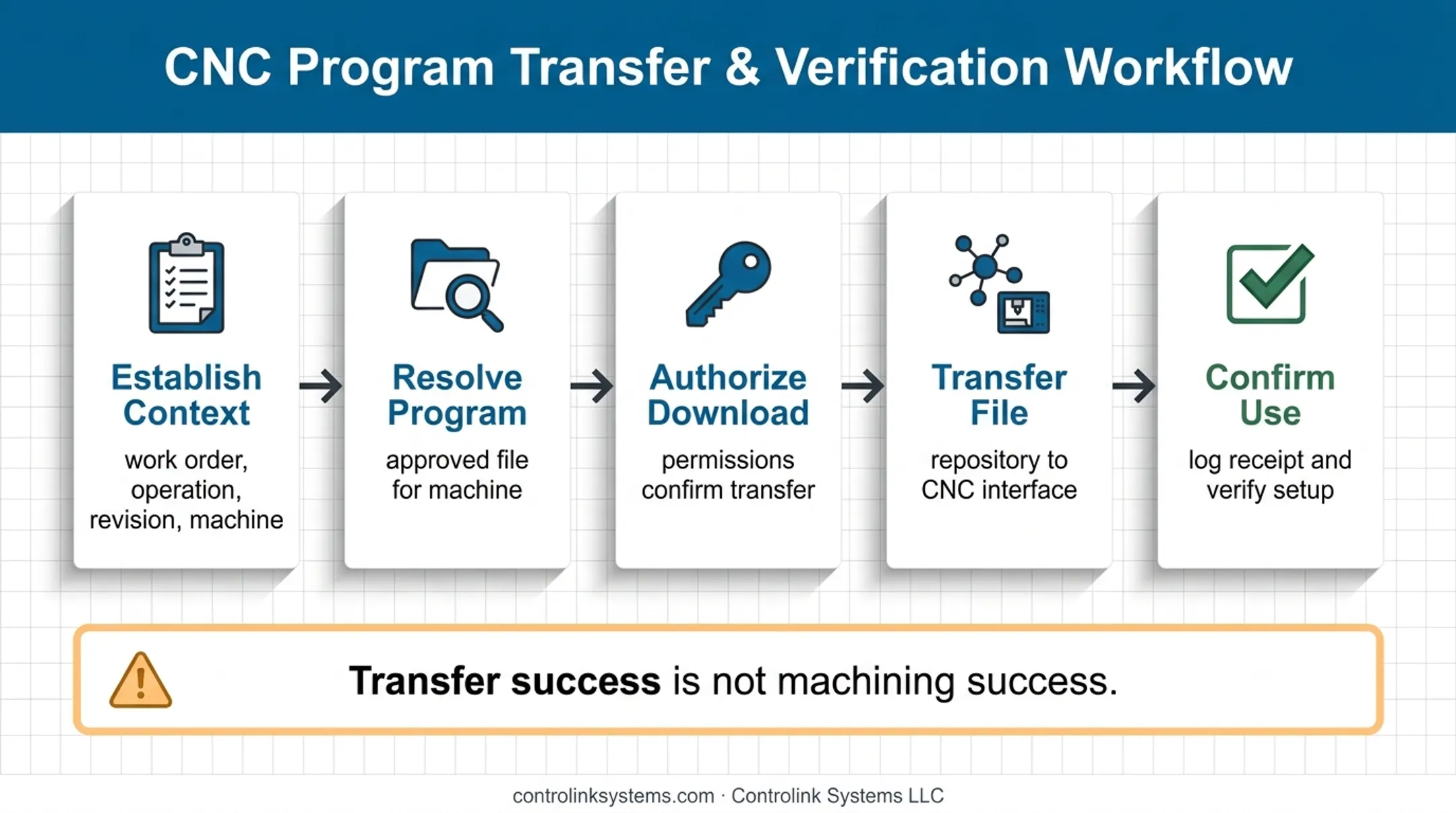

The exact architecture varies by ERP, MES, DNC platform, controller, and network design. But the sequence generally follows five steps from release to confirmation.
Step 1: Release the Job and Establish Context
The ERP or MES supplies the identifiers: work order, part number, operation, routing step, revision, quantity, and intended machine or work center. Critically, the job's status needs to say "ready for production," not "quoted" or "still under engineering review."
Step 2: Resolve the Approved Program
The integration locates the program tied to that exact part, operation, revision, and machine requirement. This step checks:
- Approval status and revision level
- File identity and required supporting files
- Whether the program is valid for the selected controller or machine family
Step 3: Authorize the Download
Role-based permissions decide who can trigger a transfer: engineering, quality, production control, supervisors, or operators. Some shops authorize the download automatically once a work order is released. Others require a human to confirm the specific machine and operation before anything moves.
Step 4: Transfer the File Over TCP/IP
The approved file passes from the controlled repository or DNC service to the target CNC interface over the configured connection. Here's the part that trips people up: the TCP specification (RFC 9293) guarantees reliable, in-order delivery of the byte stream, but that is only a transport-level acknowledgment. It is not proof the CNC application accepted and loaded the complete file. A successful network handshake and a successful program load are two different things. Before assuming a connection will just work, verify:
- Controller-supported protocol and port configuration
- File naming rules and character encoding
- Program-size limits
- Any receive-mode sequence the machine expects Machine Link™, for example, communicates with CNC machines over standard RS-232 or recognized COM ports depending on the controller. It prompts the operator to prepare the machine before a send begins.
Step 5: Confirm Receipt and Production Use
Log everything that matters:
- Work order, part, and revision
- Program ID, source, and destination machine
- User or service account, timestamp, and transfer result
- Any exceptions Then distinguish transfer success from machining success. The operator still verifies the setup, checks the first piece, and confirms machine-specific safety steps before cycle start.
Where This Workflow Fits and What Affects It
ERP-triggered CNC program delivery shows up across the job lifecycle:
- Job release and operation dispatch
- Setup prep and repeat production runs
- Engineering revision releases and program reapproval
- Controlled rework
Systems and equipment typically involved:
- ERP and MES platforms
- DNC or file-management software
- Engineering or CAM repositories
- Industrial PCs and shop-floor HMIs
- CNC controls and plant network infrastructure
What affects how well it runs:
- Inputs: part number, operation, approved revision, program, tooling, machine capability
- Operating conditions: network availability, machine state, concurrent jobs, transfer speed
- Dependencies: ERP/MES APIs, DNC services, authentication, firewall rules, machine configuration
- Scale: machine count, program volume, mixed controller generations, response-time needs
- Security constraints: access control, audit retention, change approval, backup and recovery

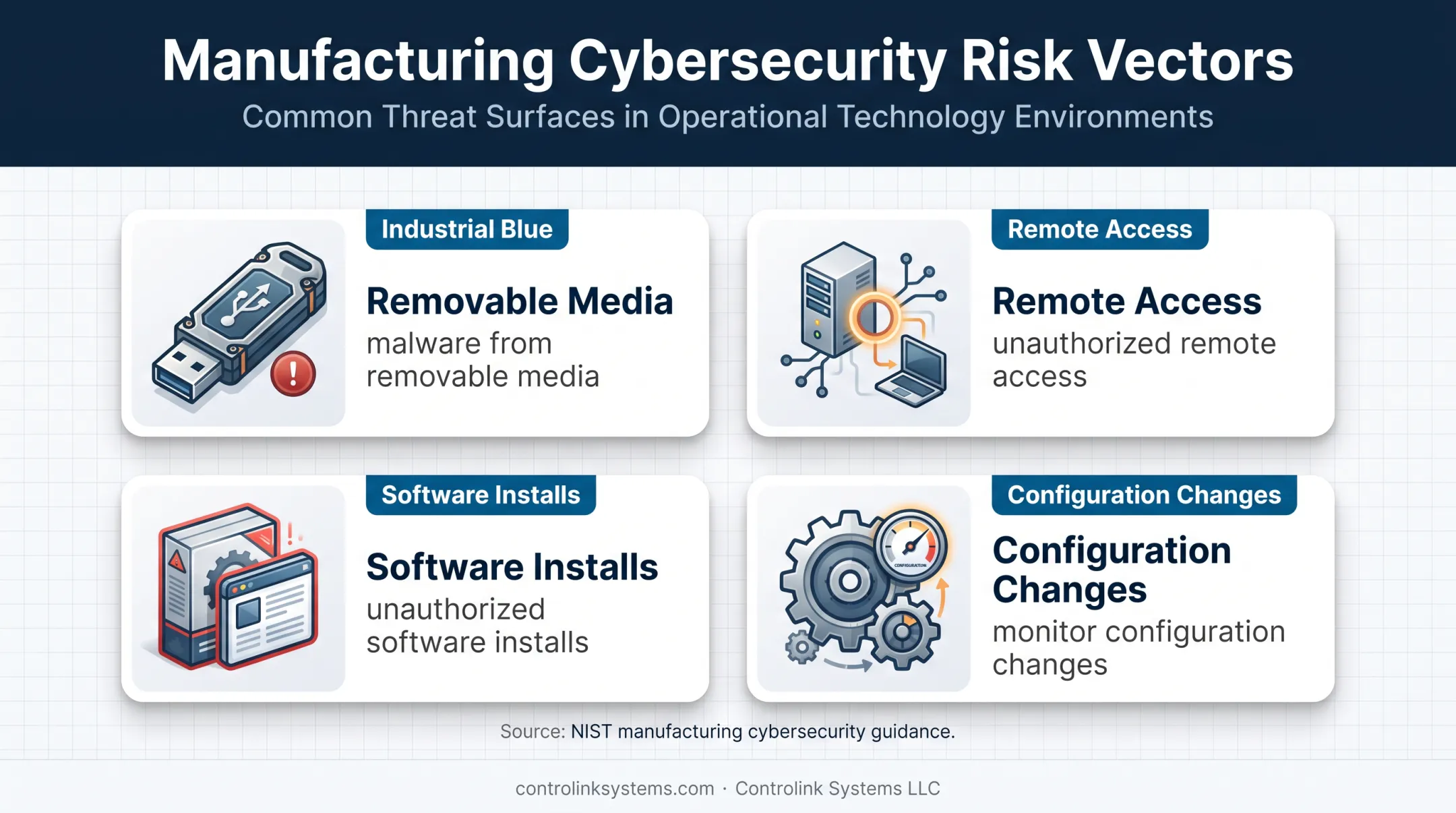

On the security side, don't treat a shop-floor network as trustworthy just because it is connected. NIST's manufacturing cybersecurity guidance covers malware from removable media and remote access, unauthorized software installs, and configuration-change monitoring—all directly relevant to a CNC/DNC transfer path.
Air-gapping a machine used to be enough. It rarely is anymore.
Legacy controls add another wrinkle. A MOXA NPort wireless serial device server can bridge older RS-232 machines onto an IP network, but only with a defined IP address and COM port mapping—not an unconfigured drop-in. That is the kind of detail Controlink Systems LLC plans for when serial gear has to live on the same path as ERP-triggered downloads.
Common Issues, Misconceptions, and When It May Not Be Appropriate
Misconception: TCP/IP integration alone equals a controlled workflow. It doesn't. Transport doesn't validate approval status, revision, machine suitability, operator authorization, or safe execution. Those are separate application-layer problems.
Failure Modes Worth Planning For
- ERP releases a job with no matching approved program
- Integration picks a valid program for the wrong machine, material, or revision
- A local edit or renamed file bypasses the controlled repository entirely
- The CNC accepts a transfer, but the operator loads a different file anyway
- A network hiccup creates an incomplete or duplicate transfer that looks successful
- Legacy controls need manual receive mode, serial gateways, or proprietary settings that don't behave like a modern Ethernet connection
Ametek hit a version of this before automating. Operators walked between the machine and a computer, and corrected programs often never returned to the system for review—a traceability gap hiding in plain sight.
Those failure modes are why safeguards have to sit above the TCP/IP pipe, not inside it.
Building in Safeguards
- Define source-of-truth ownership for the approved revision repository
- Map machine capability so only compatible controllers receive each file
- Treat network ACKs as transport receipts, not production confirmation
- Set exception queues and retry rules for failed or incomplete transfers
- Keep audit logs and backups so every transfer is traceable
- Document a manual fallback when the automated path is unavailable
When Automatic Triggering Isn't the Right Call
Skip full automation when control or confirmation is weak:
- Prototype or unvalidated programs
- Unusual one-off setups
- Safety-critical ops that need extra review
- Disconnected machines
- Cases where machine identity or revision can't be confirmed reliably
A phased rollout beats a big-bang launch:
- Map your current program lifecycle
- Pilot on one representative machine and process
- Test normal and failure scenarios
- Train operators
- Set measurable acceptance criteria before scaling
Controlink Systems LLC can help assess CNC/DNC communications and shop-floor automation fit for this kind of rollout. Even then, verify each connector and controller against your exact environment.
Before signing off on a rollout, check:
- ERP/MES integration methods actually supported
- CNC interfaces and controller generations covered
- How revision and approval logic is enforced
- End-to-end audit trail contents and retention
- Cybersecurity controls on the transfer path
- Behavior when a machine is offline
- Operator usability under real shop conditions
- Implementation support and total cost of ownership
Conclusion
The workflow itself is straightforward: an ERP or MES identifies the production requirement, a controlled program-management layer resolves the approved file, TCP/IP carries the transfer, and the machine-side process confirms receipt and use.
Speed of file transfer is secondary. The value is the governance around that connection: revision accuracy, permissions, machine compatibility, and confirmed receipt before a part ever gets cut.
Before automating downloads at scale, validate:
- Program revisions and approval status
- User and machine permissions
- Machine compatibility
- Transfer acknowledgements
- Fallback procedures when a download fails
Controlink Systems LLC has focused on CNC/DNC communications and shop-floor automation since 1998. If you are weighing this move, map how your ERP, MES, and machine-tool systems would connect—and where those controls sit today.
Frequently Asked Questions
What are the five ERP modules?
Common ERP modules include finance/accounting, inventory or materials management, sales/order management, production or manufacturing, and human resources. Module names and groupings vary by platform, and MES or DNC functions are typically handled separately.
What is the difference between ERP, MES, and DNC software?
ERP manages business and planning records like orders and inventory. MES coordinates real-time shop-floor execution and dispatching. DNC or program-management software handles controlled storage and delivery of CNC files specifically.
How does TCP/IP enable CNC program downloads?
TCP/IP provides the network path the file travels over. The CNC controller and integration layer still need compatible protocols, correct configuration, proper permissions, and a way to confirm the transfer actually completed.
Can an ERP automatically send programs to any CNC machine?
Not without additional layers. Automation depends on machine interfaces, controller compatibility, accurate program mapping, approval rules, network access, and a safe confirmation step before anything runs.
How do shops prevent operators from using obsolete CNC programs?
Controlled repositories, clear revision status, role-based permissions, and machine/job validation checks all help. Audit trails and removing uncontrolled local copies close most remaining gaps.
What should happen if a CNC download fails?
The system should log the error, notify the operator, and offer a retry or exception path, while confirming no incomplete file gets loaded. A documented manual fallback should preserve full traceability.
