Introduction
Manufacturing and test engineers deal with a concrete problem: capturing accurate power consumption, motor load, and energy efficiency data across complex shop-floor systems is harder than it looks.
When measurement systems fail to synchronize voltage and current channels — or when signal conditioning is inadequate for high-voltage industrial environments — the result is unreliable data that undermines quality control, compliance audits, and energy optimization initiatives. Improperly configured systems can also trigger costly downtime mid-production run.
This guide walks through power measurement fundamentals, NI DAQ hardware selection, software configuration, and sensor choices. Whether you're monitoring CNC machine tool power draw, validating generator performance, or running end-of-line power tests, you'll leave with a practical roadmap built for industrial manufacturing's specific demands.
TLDR:
- Power measurement requires synchronized, simultaneous sampling of voltage and current to avoid phase-angle errors
- NI C Series modules (NI-9239, NI-9253) deliver 24-bit resolution with simultaneous 50 kS/s sampling
- CompactRIO suits harsh industrial environments; CompactDAQ fits lab and bench testing
- LabVIEW supports IEEE 1459-2010 compliant three-phase power analysis with MES/SQL integration
- Proper sensor selection (Hall-effect vs. Rogowski coils) and galvanic isolation are critical for accuracy
What Is a Power Measurement System?
A power measurement system combines sensors, signal conditioning, data acquisition hardware, and software to capture electrical parameters and convert them into usable engineering data. These parameters include voltage, current, frequency, power factor, real power (watts), reactive power (VAR), and apparent power (VA).
Power measurement differs fundamentally from general-purpose DAQ. While standard DAQ systems can record analog signals sequentially using multiplexed sampling, power measurement demands synchronized, simultaneous sampling of voltage and current channels. Multiplexed sampling introduces artificial phase shifts between voltage and current waveforms, which directly corrupts real power and power factor calculations—particularly critical for three-phase AC systems common in industrial environments.
Primary Use Cases:
- Motor efficiency monitoring — Identifies inefficient operation or maintenance needs on CNC machine tools by tracking energy consumption patterns
- End-of-line (EOL) power testing — Confirms manufactured products meet power consumption specs before shipment
- Energy consumption tracking — Measures facility-wide or machine-specific power draw for energy audits and cost reduction
- Generator performance validation — Verifies output power quality, harmonic distortion, and load response under real operating conditions
- Compliance testing — Confirms adherence to standards like IEEE 1459-2010 (electric power definitions) and IEC 61000-4-7 (harmonic measurement)
IEEE Std 1459-2010 provides authoritative definitions for quantifying electrical energy flow under sinusoidal, nonsinusoidal, balanced, and unbalanced conditions. This matters in practice because power electronics — adjustable speed drives, arc furnaces, and similar nonlinear loads — generate harmonic currents and voltages that distort waveforms well beyond 50/60 Hz.
Traditional instrumentation designed for pure sinusoidal signals can produce significant measurement errors under these conditions.
Key Components of an NI DAQ Power Measurement System
Sensors / Transducers
Potential transducers (PTs) and current transducers (CTs) form the front-end layer that scales high-voltage and high-current signals down to safe analog voltage or current levels compatible with NI DAQ input modules—typically ±10 V or 4–20 mA.

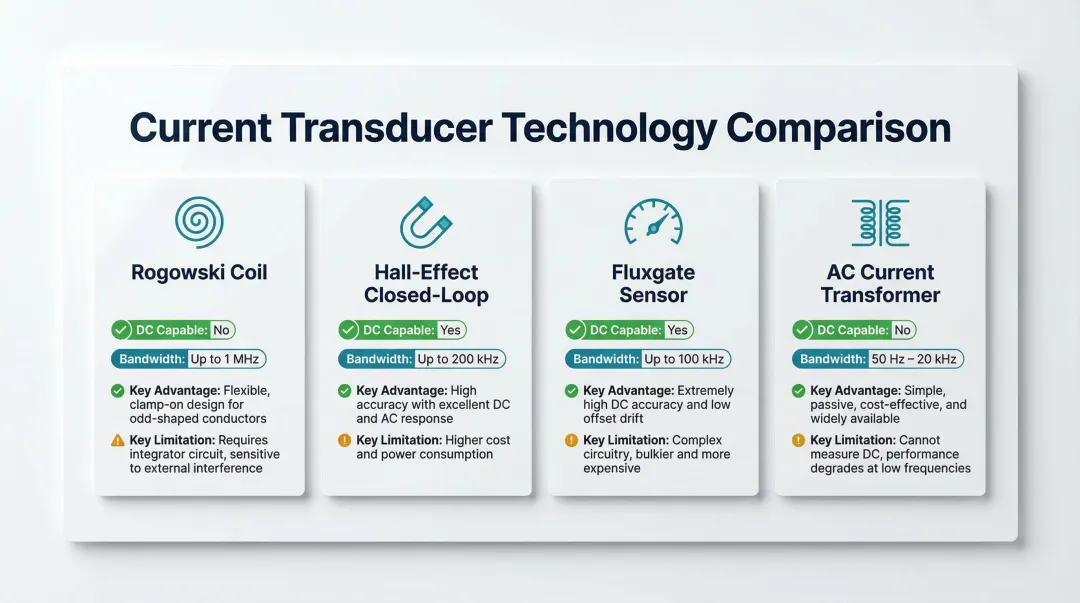

Current Transducer Technologies:
| Sensor Type | DC Capability | Bandwidth | Key Advantages | Limitations |
|---|---|---|---|---|
| Rogowski Coil | No (AC only) | Wideband, high-frequency | Flexible, air-core (no saturation), wide dynamic range (mA to MA) | Requires integration circuitry; sensitive to conductor position |
| Hall-Effect (Closed-Loop) | Yes (AC & DC) | DC to 200 kHz | High accuracy, low temperature drift, very good linearity | Can be affected by external magnetic fields; core saturation risks |
| Fluxgate | Yes (AC & DC) | High bandwidth | Very high accuracy, low hysteresis, low temperature drift | Complex design, higher cost, high power consumption |
| AC Current Transformer | No (AC only) | 50/60 Hz focus | Excellent accuracy at power frequencies, high reliability | Prone to magnetic core saturation; limited bandwidth |
Selection Criteria: For VFD and motor drive testing requiring DC component measurement, specify closed-loop Hall-effect or Fluxgate sensors. For high-current, transient AC measurements where physical space is constrained, Rogowski coils are optimal. PT and CT selection must be sized for the expected voltage and current range of the device under test.
PT Accuracy Considerations:
Potential Transformers introduce both ratio errors and phase angle errors, which directly impact Watts, VAR, and Power Factor measurements. Phase angle error is typically expressed in minutes and is usually lagging. PT accuracy changes linearly with burden (VA rating) of the connected measurement circuit — select PTs rated for your actual burden load and verify phase error specs before finalizing your measurement chain.
Signal Conditioning
Signal conditioning isolates, amplifies, and filters raw transducer outputs before they reach DAQ hardware. Galvanic isolation protects both equipment and personnel from high voltages — a non-negotiable in power measurement.
Ground loops occur when two connected terminals are at different ground potentials, causing unwanted current flow and introducing significant measurement error. To avoid ground loops, measurement systems should use differential or non-referenced single-ended (NRSE) configurations, or utilize isolated measurement hardware.
Third-Party Isolation Options:
- Verivolt IsoBlock V-1c: Provides galvanically isolated differential voltage measurements up to 1.5 kV with 100 kHz bandwidth and outputs a ±10 V differential pair
- Verivolt IsoBlock I-ST-1c: Provides isolated current measurements up to 80 A with 1500 V working isolation and ±10 V output
NI C Series modules also provide built-in isolation—for example, the NI-9239 offers 250 Vrms channel-to-channel isolation, while the NI-9253 provides 250 Vrms channel-to-earth ground isolation.
DAQ Hardware / I/O Modules
Once signals are conditioned and isolated, the NI DAQ chassis and analog input modules take over — digitizing voltage and current signals at high resolution (typically 24-bit) and high speed. Simultaneous sampling modules use an independent ADC and signal path for each channel, ensuring voltage and current are sampled at the same instant, preserving the phase relationship.
NI C Series Modules for Power Measurement:

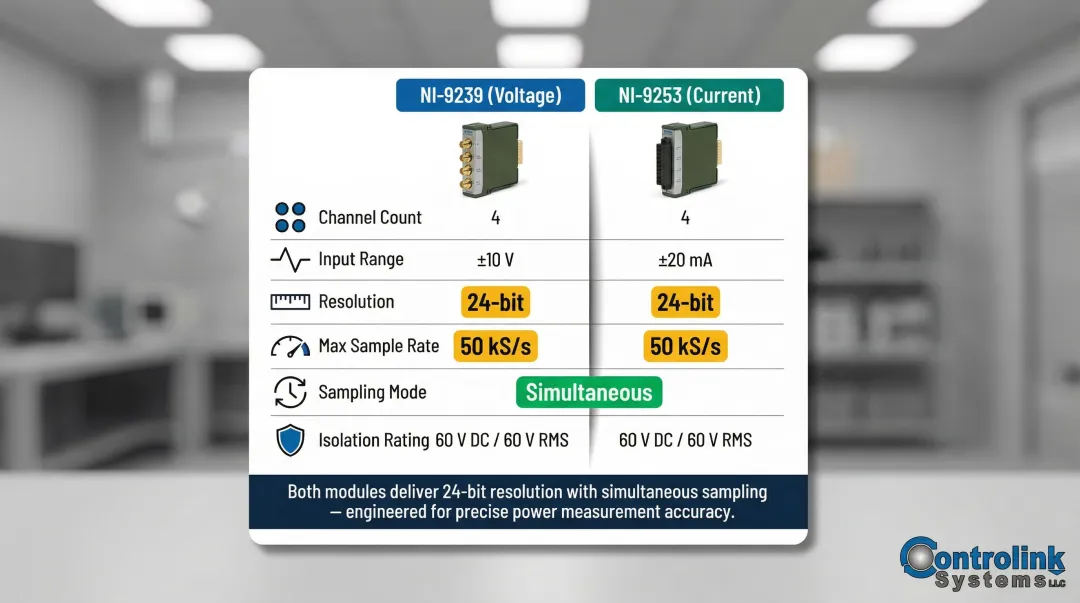

| Specification | NI-9239 (Voltage) | NI-9253 (Current) |
|---|---|---|
| Channel Count | 4 analog input channels | 8 analog input channels |
| Input Range | ±10 V nominal | ±20 mA nominal |
| Resolution | 24 bits | 24 bits |
| Max Sample Rate | 50 kS/s per channel | 50 kS/s per channel |
| Sampling Mode | Simultaneous | Simultaneous |
| Isolation | 250 Vrms Channel-to-Channel | 250 Vrms Channel-to-Earth |
The NI-9253 includes built-in diagnostics for overcurrent detection, user-programmable input limits, and programmable hardware filtering (Butterworth and Comb filters) to reject out-of-band noise.
Controller / Processing Unit
The controller applies scaling factors, computes derived parameters (real power, power factor, harmonics), performs quality checks, and logs results. Common options include an embedded controller in a CompactRIO chassis or a host PC running LabVIEW or NI-DAQmx driver software.
Controllers handle:
- Applying CT/PT calibration factors to raw voltage readings
- Computing real power (P = V × I × cos φ) from simultaneous voltage and current samples
- Calculating power factor, reactive power, and apparent power
- Performing FFT analysis for harmonic distortion measurement
- Implementing range monitoring, flatline detection, and rate-of-change alerts
Software and HMI Layer
The software layer manages timing, synchronization, data management, visualization, and reporting. NI-DAQmx driver software manages hardware communication at the lowest level, while LabVIEW or FlexLogger provides application-level logic and user interface for operators on the shop floor or in the test lab.
NI DAQ Hardware Options for Power Measurement
CompactDAQ (cDAQ)
CompactDAQ is NI's modular chassis-based platform designed for PC-tethered or standalone bench and lab power measurement. cDAQ chassis connect to a host PC over USB, Ethernet, or Wi-Fi and accept C Series I/O modules.
Key Features:
- USB chassis (e.g., cDAQ-9170, cDAQ-9173) provide plug-and-play setup for benchtop testing
- Ethernet chassis (e.g., cDAQ-9187) support cable runs up to 100 meters and use Time Sensitive Networking (TSN) to synchronize measurements with submicrosecond accuracy across a network
- Wi-Fi options (e.g., cDAQ-9191) enable remote monitoring where cables are impractical
cDAQ is NI's most affordable platform and is well suited for applications that don't require real-time deterministic control, such as multi-phase power analysis in a lab or test cell environment.
CompactRIO (cRIO)

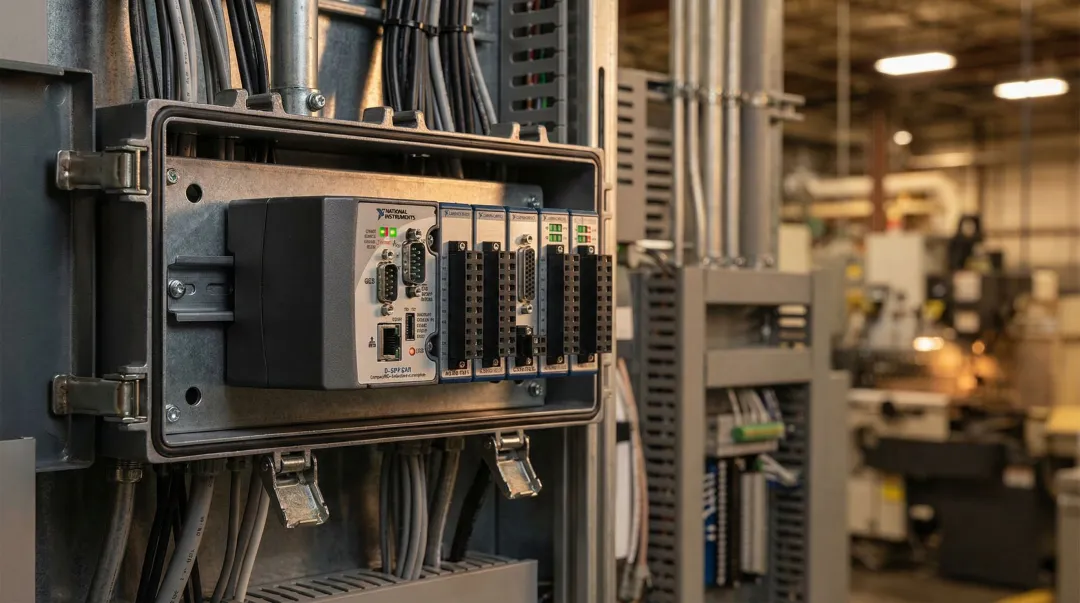

CompactRIO is NI's ruggedized embedded controller platform combining a real-time processor with an FPGA. It supports operating temperatures from -40 ºC to 70 ºC, 50 g shock, and 5 g RMS vibration.
Why Choose cRIO:
- Deployed industrial environments — Monitoring CNC machine power draw directly on the shop floor
- Deterministic timing — Running control loops on the real-time OS while offloading high-speed signal processing to the FPGA
- Integration with control logic — Triggering alarms or adjusting process parameters based on power readings
- High-speed data throughput — Processing 50 kS/s simultaneous sampling across multiple channels without PC dependency
cRIO uses the same C Series I/O modules as cDAQ — so hardware you've already spec'd for bench testing transfers directly to a deployed industrial setup.
USB DAQ (mioDAQ and NI USB Devices)
NI mioDAQ is a modern USB Type-C data acquisition device offering 20-bit resolution, ±10 V measurements, and simultaneous sampling. Entry-level USB DAQ devices are a practical starting point for lower-complexity power monitoring work. Keep in mind they carry limited channel counts and no real-time determinism, which matters when scaling up.
Best suited for:
- Single-machine power monitoring during prototype development
- Lab or educational setups with low channel requirements
- Quick-start deployments where cost is the primary constraint
PXI Platform
PXI is NI's high-performance instrumentation platform targeted at automated test environments. It features integrated timing and triggering lines on the chassis backplane, allowing tight synchronization of multiple devices without external cabling.
PXI Advantages:
- High channel count — Many synchronized measurement channels in a single chassis
- Instrument-grade precision — Combining oscilloscopes, DMMs, waveform generators alongside DAQ modules
- Minimal slot-to-slot skew — PXI Express differential star trigger lines minimize skew to under 150 ps, ideal for EOL power testing on production lines
Real-World Application: NI PXI systems have been deployed to build automated EOL test benches for hybrid vehicle inverters, performing overvoltage, undervoltage, and DC/DC functional tests.
Partner Network Expertise
As a member of the NI Partner Network since 2000, Controlink Systems has extensive experience helping manufacturing teams select the right NI DAQ platform for specific power measurement requirements—from simple energy monitoring on a single machine to multi-node distributed power measurement across an entire facility.
Software Tools for NI DAQ Power Measurement
NI-DAQmx Driver
NI-DAQmx is the foundational driver enabling communication between the operating system or LabVIEW application and all NI DAQ hardware. Key capabilities relevant to power measurement include:
- Hardware-timed simultaneous sampling — Ensures precise synchronization across channels
- Custom scaling — Automatically converts raw voltage or current signals into engineering units by applying CT/PT calibration factors
- Advanced triggering — Supports analog edge, digital, reference, and pause triggers
- High-speed streaming — Streams data to disk using the optimized TDMS file format at speeds up to 1.2 GB/s
LabVIEW

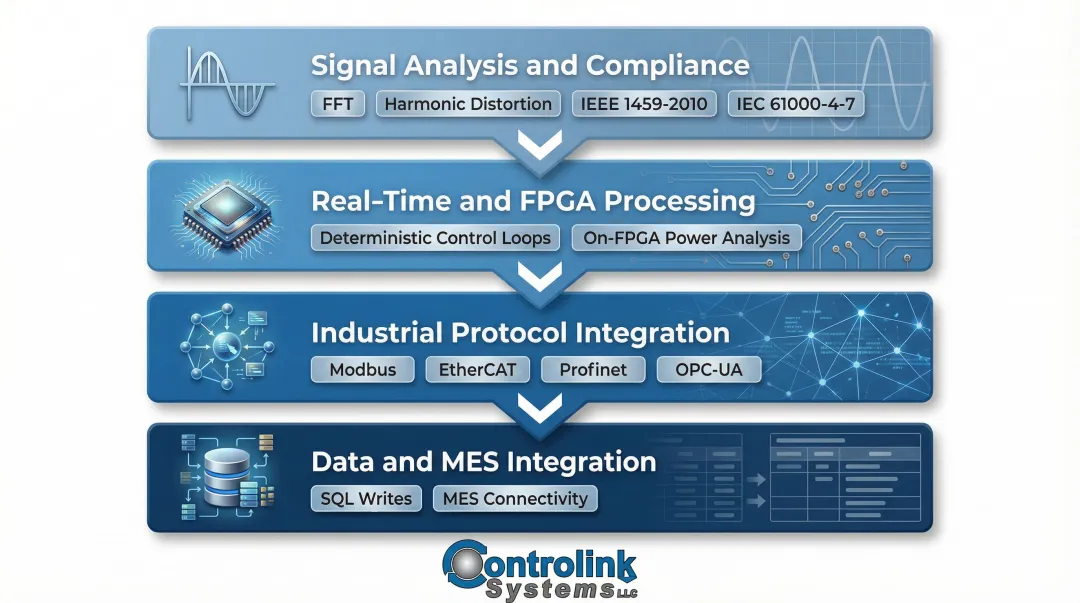

LabVIEW is the primary programming environment for building custom power measurement applications on NI DAQ hardware. Where NI-DAQmx handles hardware communication, LabVIEW handles what you do with that data. For power measurement specifically, it offers:
Signal analysis and compliance:
- Waveform Measurements VIs provide Harmonic Distortion Analysis, SINAD, and Averaged FFT Spectrums
- LabVIEW Electrical Power Toolkit enables IEEE 1459-2010 compliant three-phase power measurements
- IEC 61000-4-7 compliant harmonic and interharmonic grouping
Beyond analysis, LabVIEW also handles system-level integration for production environments:
- Real-time OS support for CompactRIO deterministic control loops
- FPGA programming for high-speed signal processing — FFT and power analysis algorithms can execute directly on cRIO's FPGA hardware
- Industrial protocol integration — Modbus, EtherCAT, Profinet, OPC-UA for PLC communication
- Database connectivity — Direct SQL database writes for MES integration
FlexLogger
NI FlexLogger is a configuration-based data logging application designed for test engineers who need multi-channel power logging without writing LabVIEW code. It's the right choice when speed of setup matters more than customization. Common use cases include:
- EOL testing — Configure pass/fail limits and log results without custom code
- Periodic energy audits — Set up multi-channel sessions in minutes using a point-and-click interface
- Prototype validation — Capture power data during early-stage testing before a full application is warranted
Sensors and Signal Conditioning for Power Measurement
Voltage Measurement (Potential Transducers)
PTs step down high AC voltages to safe analog output levels. For accurate power measurement, PTs must have a flat frequency response across the measurement bandwidth and low phase error. Phase angle error directly impacts Watts, VAR, and Power Factor measurements; in most practical applications, the phase error will be lagging and is expressed in minutes.
Engineers must account for the burden (VA rating) of the connected measurement circuit, as PT accuracy changes linearly with burden.
Current Measurement (Current Transducers)
For three-phase power measurement, matched CT channels on each phase are essential to minimize measurement error. NI C Series current input modules like the NI-9253 (4–20 mA input) can accept CT outputs directly when appropriately signal-conditioned.
Match sensor type to your load characteristics:
- Fluxgate or Hall-effect sensors handle VFDs and loads with DC components (AC/DC capable)
- Rogowski coils suit high-current AC applications where space is constrained and core saturation is a risk
- Traditional AC current transformers deliver excellent accuracy at standard 50/60 Hz power frequencies
Isolation and Grounding Considerations
Ground loops and common-mode noise are the most common sources of error in power measurement DAQ systems. Two configuration decisions drive most of the solution:
- Signal source type: Whether a source is grounded or floating determines correct module configuration — get this wrong and you introduce the noise you're trying to avoid
- Input mode: Most NI analog input modules use differential inputs that measure the potential difference between positive and negative terminals, rejecting common-mode voltages
- Isolation: Differential measurement combined with isolated transducers eliminates most common-mode interference

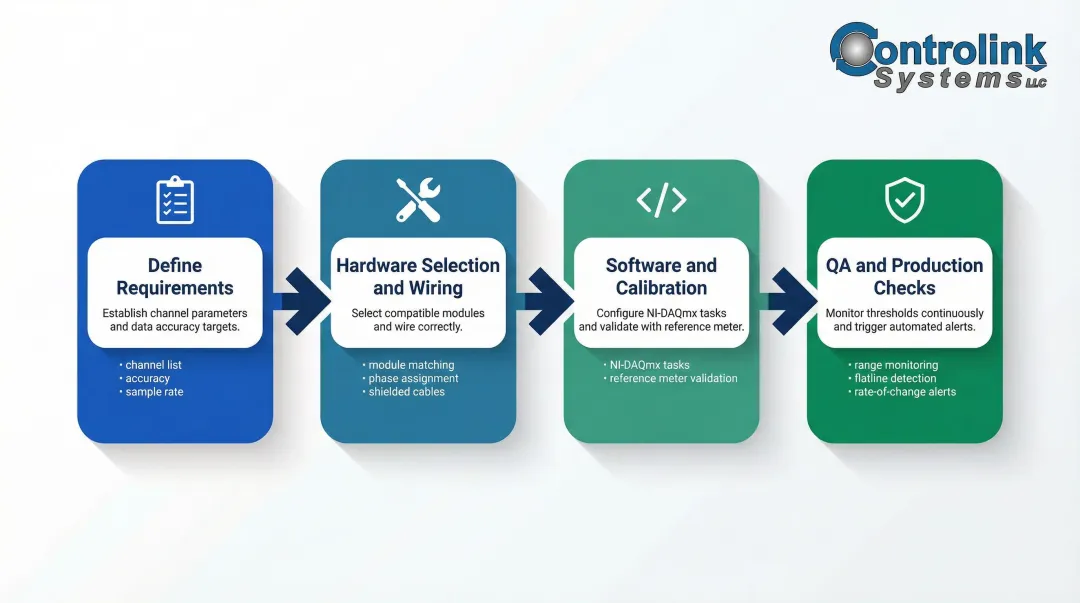

Implementing Your NI DAQ Power Measurement System
Define Your Measurement Requirements First
Successful implementation starts with a clear channel list documenting:
- Each voltage and current channel
- Expected range (voltage and current levels)
- Required accuracy (±0.5%, ±1%, etc.)
- Sample rate
Sample Rate Guidelines: For three-phase AC systems, simultaneous sampling at a rate at least 10–20× the fundamental frequency is needed to capture harmonics accurately. For 50/60 Hz power, this means a minimum of 1 kHz. For harmonic analysis up to the 10th harmonic or beyond per IEC 61000-4-7, higher rates (10 kHz or more) are required.
Architecture Selection:
- Tethered (PC + cDAQ): Lab testing, benchtop applications
- Integrated (cRIO embedded): Harsh environments, real-time control, standalone operation
- Distributed (multiple cDAQ nodes networked via Ethernet): Multi-point facility monitoring
Hardware Selection and Wiring
Match C Series I/O modules to your sensor output types and assign channels in NI-DAQmx (or the cRIO FPGA). Then apply per-channel calibration offsets and scaling factors from your PT/CT calibration sheets.
Critical Wiring Considerations:
- Incorrect wiring—particularly phase assignment errors in three-phase systems—is a leading cause of incorrect power factor and real power calculations
- Voltage and current on the same phase must be wired to corresponding DAQ channels
- Verify differential vs. single-ended wiring based on sensor output type
- Use shielded cables and proper grounding to minimize noise
Software Development and Calibration Verification
Configure NI-DAQmx tasks in LabVIEW (or FlexLogger) and validate that computed power values match a reference meter during bench testing. Then implement QA checks before deploying in production:
Quality Assurance Checks:
- Range monitoring: flags voltage or current outside expected limits
- Flatline detection: catches sensor failures and disconnected wiring
- Rate-of-change alerts: identifies abnormal transients or sudden load shifts
Integration with Manufacturing Systems
NI DAQ measurement data connects directly to SQL databases, HMI dashboards, PLCs, and MES systems. Communication happens through standard industrial protocols supported natively in LabVIEW and CompactRIO.
Supported Industrial Protocols:
| Protocol | NI Software Support | Target Platform |
|---|---|---|
| Modbus | Modbus I/O Servers, Low-level API | Windows, LabVIEW Real-Time |
| OPC UA | LabVIEW OPC UA Toolkit | Windows, NI Linux Real-Time OS |
| EtherCAT | NI-Industrial Communications for EtherCAT | CompactRIO, PXI |
| PROFINET | PROFINET for PXI, KUNBUS drivers | PXI, CompactRIO |
Database Integration: The LabVIEW Database Connectivity Toolkit executes advanced SQL statements and streams measurement data directly to Microsoft Access, SQL Server, or Oracle databases. At the enterprise level, NI SystemLink Server facilitates sharing data across systems, integrating tags and files with OPC UA servers and web dashboards.
Connecting NI DAQ systems to shop-floor automation infrastructure is a core capability at Controlink Systems. As an NI Partner since 2000, Controlink has delivered process monitoring and control solutions for manufacturers including Timken, 3M, and Oak Ridge National Laboratory.
Frequently Asked Questions
What is the difference between a power measurement system and a standard DAQ system?
While both use similar hardware, power measurement specifically requires synchronized simultaneous sampling of voltage and current channels, calibrated transducers (PTs/CTs), and software that computes real power, reactive power, and power factor—capabilities that go beyond basic analog signal recording.
Which NI DAQ hardware is best for three-phase power measurement?
CompactRIO with NI-9239 simultaneous-sampling modules is preferred for deployed industrial environments requiring real-time control and harsh-environment ruggedness. CompactDAQ with equivalent C Series modules is suitable for lab-based or bench testing scenarios where PC connectivity is available and environmental conditions are controlled.
What sensors do I need for voltage and current measurement with NI DAQ?
Potential transducers (PTs) scale down high voltages to ±10 V analog signals, and current transducers (CTs) convert line current to a proportional voltage or 4–20 mA output. Select transducers rated for your line voltage and current range, and verify their bandwidth extends to at least the highest harmonic frequency you plan to measure—low phase error is critical for accurate power factor calculations.
Can NI DAQ systems integrate with existing PLCs and manufacturing databases?
Yes. NI DAQ systems programmed in LabVIEW can communicate with PLCs via Modbus, EtherCAT, Profinet, or OPC-UA, and can write measurement data directly to SQL databases or MES systems—enabling power data to be part of a broader shop-floor monitoring and quality system.
How do I choose between CompactDAQ and CompactRIO for power monitoring?
The core distinction mirrors the hardware question above: CompactDAQ fits PC-connected test bench applications, while CompactRIO is the right call when the system needs to run standalone without a host PC. If your application also requires deterministic timing or FPGA-based processing, CompactRIO is the only viable option.
What sample rate do I need for accurate AC power measurement with NI DAQ?
For fundamental 50/60 Hz power analysis, target at least 1 kHz—roughly 16–20 samples per cycle. If you need harmonic analysis up to the 10th harmonic or beyond, step up to 10 kHz or higher to meet IEC 61000-4-7 requirements.
