Introduction
Serial-to-Ethernet conversion bridges legacy serial interfaces—RS-232, RS-422, and RS-485—to modern TCP/IP Ethernet networks using a dedicated hardware device called a serial device server. It is not simply a matter of adding a network card; the process involves full protocol translation at both the signal and software level.
This guide is written for manufacturing engineers, CNC shop managers, and industrial automation teams who depend on serial-based equipment but need those devices to communicate across a networked facility.
The technology is common on shop floors, but the implementation details trip up even experienced teams. What follows covers how the conversion actually works, where it performs well in manufacturing environments, and where other approaches make more sense.
TLDR
- Serial device servers translate RS-232/422/485 data into TCP/IP packets, letting legacy industrial equipment communicate over standard Ethernet networks
- Eliminates long serial cable runs and centralizes access to CNC machines, PLCs, and sensors from one network
- Embedded firmware handles protocol translation transparently, so no changes to the original serial device are needed
- Successful setup depends on matching baud rates, selecting the right operation mode, and installing virtual COM port drivers
- Well-suited for connecting legacy serial devices to modern networks, but not ideal for low-latency real-time control applications
What Is Serial-to-Ethernet Conversion?
Serial-to-Ethernet conversion is the bidirectional translation of serial communication data (transmitted bit-by-bit via RS-232, RS-422, or RS-485) into Ethernet-compatible TCP/IP packets. This translation is performed by a standalone hardware device known as a serial device server or serial-to-Ethernet converter.
The result: any serial device — a CNC machine, PLC, barcode scanner, sensor, or meter — can be accessed, monitored, or controlled from any point on a TCP/IP network, locally or remotely, without touching the original device.
How It Differs from Similar Technologies
A USB-to-serial adapter and a serial device server are often confused, but they serve very different purposes:
- USB-to-serial adapter: Extends a serial port to a single local host computer; requires that host to be powered and running at all times
- Serial device server: Operates independently on the network with its own IP address, CPU, and firmware; needs no dedicated host and can serve multiple hosts simultaneously
Why Serial-to-Ethernet Conversion Is Used in Manufacturing
The core adoption driver is simple: millions of industrial serial devices—CNC machines, PLCs, SCADA instruments—do not have native Ethernet ports. Yet manufacturing operations increasingly depend on networked data access for production monitoring, DNC program distribution, and quality control. Serial-to-Ethernet conversion bridges this gap without requiring costly equipment replacement.
Industry case studies show that upgrading CNC controllers can cost upwards of $30,000 per machine, whereas retrofitting with serial device servers costs approximately $1,000 to $3,000 for a complete network upgrade.
What Manufacturing Demands
Manufacturing specifically requires:
- Simultaneous, reliable data transfer from multiple machines on the same network
- Centralized program distribution that pushes CNC files from a server to individual machines
- Remote visibility into machine status without walking the shop floor
Controlink Systems' DNC software is one example of a solution that relies on this connectivity layer to distribute engineering-approved programs to CNC machines and ensure machinists are always running the correct file.

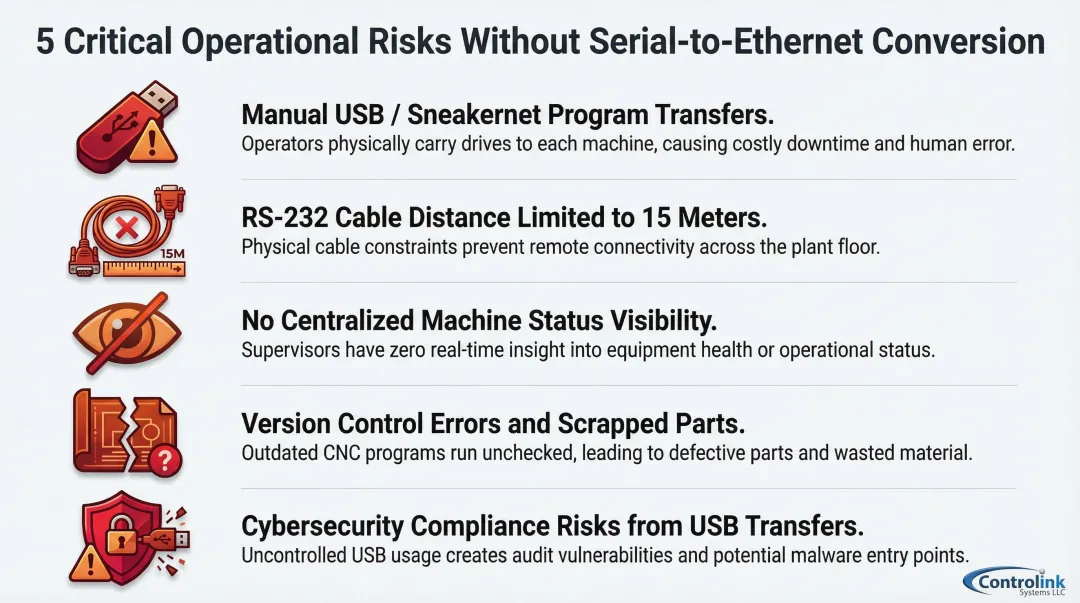

What Goes Wrong Without This Capability
Without serial-to-Ethernet conversion, several operational problems emerge:
- Engineers must walk the shop floor with USB drives or laptops to transfer programs manually—a process known as "sneaker-net"
- RS-232 cable length limits (15 meters) restrict device placement
- No centralized visibility into machine status or communication errors
- Manual program transfers introduce version control errors and scrapped parts
- USB and floppy-based transfers create measurable downtime and conflict with cybersecurity frameworks like the DoD's CMMC 2.0
When Serial-to-Ethernet Conversion Makes Sense
Serial-to-Ethernet conversion is operationally preferred when a facility has:
- Significant investment in legacy serial equipment
- An existing Ethernet infrastructure
- A need to centralize data access without full equipment upgrades
For most shops, this approach keeps functional machines productive for years longer than a full controller replacement would justify.
How Serial-to-Ethernet Conversion Works
A serial device server sits physically between the serial device and the Ethernet network. It receives raw serial data on one side and transmits it as TCP/IP packets on the other, with all protocol translation handled internally by the device server's embedded firmware. The connected device and the host application have no awareness that conversion is occurring.
Core Components
The process requires three key elements:
- Serial data signals: Voltage-level bit streams formatted to RS-232, RS-422, or RS-485 standards
- Serial communication parameters: Baud rate, data bits, stop bits, parity, and flow control configured to match the connected device
- Network IP address: Assigned to the device server for network identification
The Transformation Process
The device server's firmware buffers incoming serial data, wraps it in TCP or UDP packets according to the configured operation mode, and transmits it over Ethernet. On the return path, incoming TCP/UDP packets are stripped of their network headers and delivered to the serial device as raw serial signals.
How the Process Is Controlled
Operation modes determine how the device server initiates or accepts connections:
- Real COM mode: Required when existing host software expects a local COM port
- TCP Server/Client mode: Appropriate for socket-based applications
- UDP mode: Suitable for broadcast or high-speed, lower-reliability scenarios
Data packing settings control how serial data is accumulated before being transmitted as a packet. Virtual COM port drivers installed on the host PC allow existing serial software to communicate with the device server as if it were a local COM port.
What Changes as a Result
- The serial device gains a network identity (IP address and TCP/UDP port number)
- Multiple hosts can access the device
- The 15-meter RS-232 distance limitation is eliminated
- Devices can be located anywhere on the network

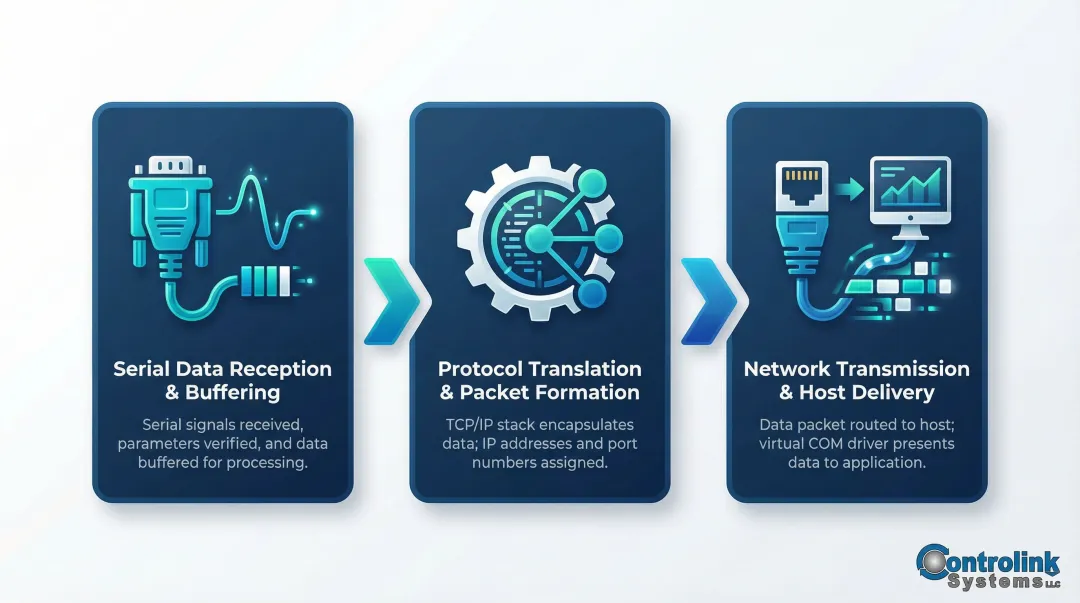

Here's how those transformations play out across three discrete stages inside the device server.
Step 1: Serial Data Reception and Buffering
The serial device transmits data through its physical RS-232/422/485 port to the device server's serial interface. Incoming signals are checked against configured serial parameters (baud rate, parity, stop bits) and stored in an internal buffer. The device server also monitors for delimiter characters or packet-length thresholds that determine when buffered data is ready to be packaged.
Step 2: Protocol Translation and Packet Formation
The device server's embedded TCP/IP stack wraps the buffered serial data in a network packet — either a TCP segment (reliable, connection-oriented delivery) or a UDP datagram (faster, connectionless delivery). It assigns source and destination IP addresses and port numbers based on the configured operation mode, then queues the packet for transmission over the Ethernet interface.
Step 3: Network Transmission and Host Delivery
The TCP/IP packet travels across the Ethernet network to the host computer or receiving device. At the host, a virtual COM port driver (in Real COM mode) intercepts the packet and presents the data to the application as if it arrived through a local serial port. Socket-based applications receive the data directly via TCP/UDP without the driver layer.
Where Serial-to-Ethernet Conversion Is Applied in Manufacturing
Serial-to-Ethernet conversion appears across multiple manufacturing workflows and equipment types:
Common Equipment and Workflow Types
- CNC machine tools receiving DNC program files from a central server
- PLCs transmitting process data to SCADA systems
- Test and measurement instruments sending results to data acquisition software
- Barcode scanners and card readers reporting to production management systems
- Legacy serial consoles on switches, routers, or UPS units accessed remotely for configuration
Where It Fits in the Production Lifecycle
Serial-to-Ethernet conversion is most commonly deployed as a retrofit to existing production lines rather than in new installations. This typically happens when a facility upgrades its network infrastructure but retains existing serial-equipped machines.
Beyond infrastructure upgrades, it also shows up in end-of-line testing, quality assurance data collection, and remote monitoring of off-site or unmanned equipment — anywhere serial devices need to reach a networked system without physical replacement.
Operational Continuity After Deployment
Once installed and configured, the device server operates continuously and passively. It does not require reconfiguration between production runs, though serial parameters may need adjustment when connecting a different device type to the same port.

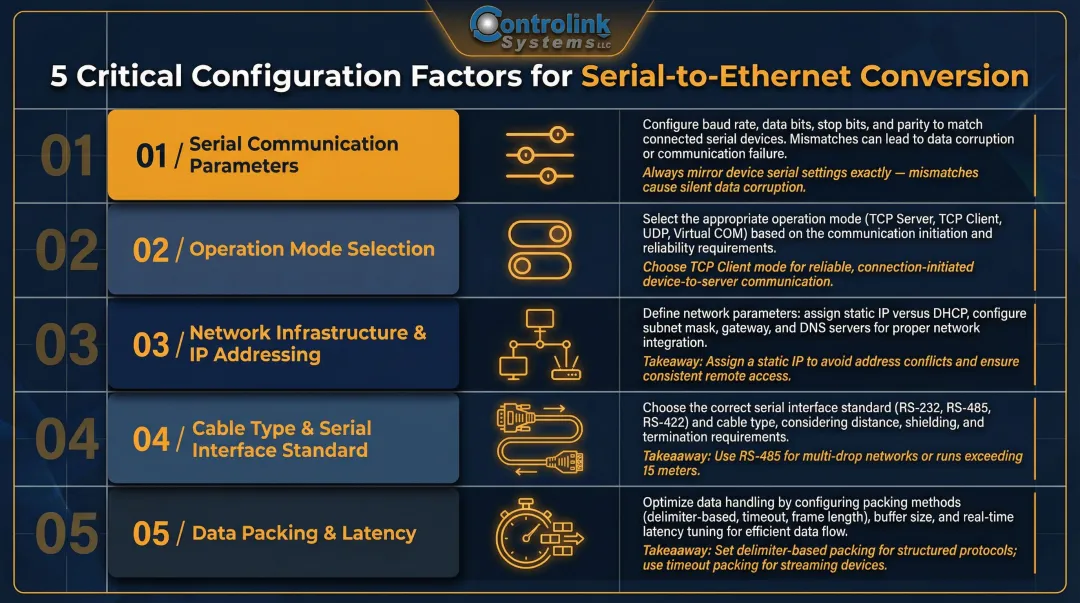

Key Factors That Affect Serial-to-Ethernet Conversion in Manufacturing
Several technical factors directly impact the reliability and performance of serial-to-Ethernet conversion:
Serial communication parameters: The baud rate, data bits, stop bits, parity, and flow control settings on the device server must exactly match those of the connected serial device. A mismatch at any of these parameters will corrupt or drop data. Some legacy CNC machines require non-standard baud rates (e.g., 500 Kbps) that not all device servers can accommodate.
Operation mode selection: Use Real COM mode when host software expects a local COM port; TCP Server/Client mode for socket-based applications; UDP for broadcast or high-speed scenarios. Choosing the wrong mode is one of the most common configuration errors.
Network infrastructure and IP addressing: Device servers need a stable, routable IP address — static assignment or DHCP reservation is strongly recommended to prevent connection failures in production. Firewall rules and VLAN configurations can also block communication if not properly set.
Cable type and serial interface standard: The interface standard must match the connected equipment: RS-232 is limited to ~15 meters point-to-point; RS-422 extends to 1,200 meters with differential signaling; RS-485 supports multi-drop networks of up to 32 devices on a single bus.
Data packing and latency: Force transmit timeout and packet length settings control how quickly buffered data is forwarded as a network packet. Settings that are too conservative increase latency; settings that are too aggressive fragment data from burst-transmitting devices — both require hands-on tuning per application.
Common Issues and Misconceptions About Serial-to-Ethernet Conversion
The "Plug-and-Play" Assumption
Many users believe that connecting a device server to the network and assigning an IP address is enough to get started. In practice, setup requires a few more steps before any data can be exchanged:
- Configure the correct serial parameters (baud rate, data bits, parity, stop bits)
- Set the operation mode that matches your application
- Install and activate the virtual COM port driver on the host computer (required for Real COM mode)
Oversimplifying the Hardware Requirements
IT teams sometimes assume that any network-aware device can replace a serial device server, and attempt to use network-attached USB hubs or standard serial port cards. These alternatives don't perform protocol translation and won't function as serial-to-Ethernet converters. Protocol translation happens inside the device server's firmware — it can't be reproduced by passive hardware adapters.
That distinction matters when troubleshooting. Even hardware that "talks to the network" won't bridge the gap between serial and Ethernet without true firmware-level translation.
Confusing Transparency with Losslessness
A correctly configured device server makes a serial device appear to host software as a local COM port. That seamless appearance leads some users to assume the conversion is inherently lossless — it isn't.
Any baud rate mismatch, flow control error, or packet fragmentation issue will silently corrupt data. The conversion is only truly transparent when all parameters are correctly matched on both ends of the connection.
When Serial-to-Ethernet Conversion May Not Be Appropriate
Unnecessary Complexity
If the serial device is already close to the host computer (within RS-232 cable range) and only one host needs access, a direct serial cable connection is simpler, lower latency, and eliminates network dependency.
If the legacy device manufacturer offers a native Ethernet or industrial protocol upgrade, that path is preferable to adding an intermediary device server.
Real-Time Control Constraints
Real-time closed-loop control applications requiring sub-millisecond response times can't absorb the latency that TCP/IP protocol overhead and network switching introduce. In these cases, dedicated fieldbus or industrial Ethernet protocols like EtherCAT or PROFINET, designed for deterministic real-time performance, are the right choice.
Short-Term Equipment Lifecycle
If a facility is purchasing device servers for serial equipment scheduled for replacement within 12–24 months, the cost and configuration effort rarely pays off. Serial-to-Ethernet conversion makes sense as a long-term infrastructure investment — reserve it for equipment with an extended service life.

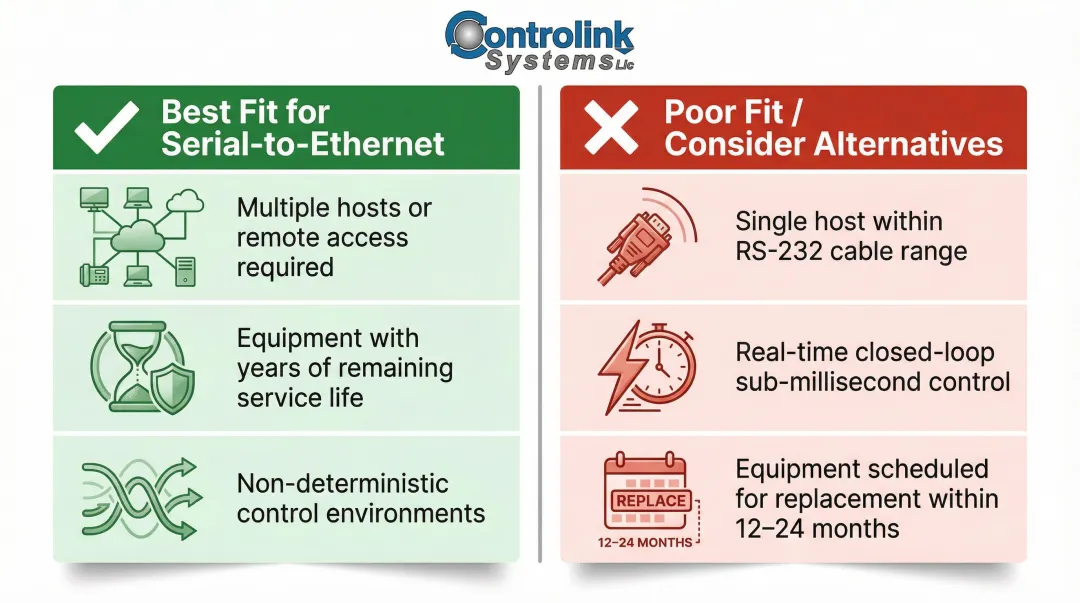

In short, serial-to-Ethernet conversion fits best when the use case includes:
- Multiple hosts or remote access requirements
- Equipment with years of remaining service life
- Environments where network latency is acceptable (non-deterministic control)
Conclusion
Serial-to-Ethernet conversion uses a device server to transparently translate serial data into TCP/IP packets, allowing RS-232/422/485 devices to operate as networked endpoints. This eliminates distance limitations, enables multi-host access, and integrates legacy industrial equipment into modern factory networks without replacing the hardware.
Teams that treat serial-to-Ethernet as a plug-and-play solution often run into persistent communication errors — typically caused by parameter mismatches or incorrect operation mode selection. Getting the configuration right is what separates a stable network from one that fails mid-shift.
For facilities managing CNC machines, PLCs, and other serial-equipped devices across a shop floor, correct implementation delivers measurable results:
- Reduces unplanned downtime from communication failures
- Eliminates manual program transfers between machines
- Improves part traceability across networked equipment
Frequently Asked Questions
What is the difference between a serial device server and a simple USB-to-serial adapter?
A USB-to-serial adapter is a passive device that extends a serial port to a single local host computer and requires the host to be powered and running. A serial device server is a standalone networked device with its own IP address, CPU, and firmware that operates independently on the network and can serve multiple hosts simultaneously without a dedicated computer.
Can I connect RS-232, RS-422, and RS-485 devices using the same serial-to-Ethernet converter?
Many serial device servers support all three interfaces and allow the user to configure the serial port mode via DIP switches, web console, or software settings. However, the interface must be set to match the connected device's standard, and RS-485 multi-drop topologies may require additional termination resistor configuration.
What is Real COM mode and when should I use it in a CNC/manufacturing environment?
Real COM mode installs a virtual COM port driver on the host computer so that existing serial software (such as DNC or SCADA applications) communicates with the device server as if it were a local COM port. This mode is required when the host application cannot be modified to use socket-based network communication and must interface through a standard COM port.
How many serial devices can be connected to a single serial-to-Ethernet converter?
Each physical serial port on a device server connects to one serial device, with configurations available from 1 to 32 ports. RS-485 multi-drop networks are an exception — multiple devices can share a single port on a bus topology, but this requires addressing and polling logic in the host application.
Is serial-to-Ethernet conversion secure enough for industrial production networks?
Security depends on configuration. Production-grade device servers support SSL/TLS encryption, IP access control lists, and account-based authentication. Unused services (Telnet, HTTP, SNMP) should be disabled post-installation, and the device should sit behind a firewall or on an isolated VLAN.
Do I need to modify my existing serial device or its software to use serial-to-Ethernet conversion?
No changes to the serial device are required. The device server handles all protocol translation transparently. On the host side, Real COM mode requires a virtual COM port driver, but the application only needs to point to the new COM port number.
