Introduction
Modern factory floors depend on interconnected devices—PLCs, motion controllers, sensors, and CNC machines—that must communicate reliably and in real time. The wrong interface choice leads to communication failures, unplanned stoppages, and integration costs that compound fast. According to Siemens' 2024 True Cost of Downtime report, unplanned downtime costs manufacturers an average of $260,000 per hour, contributing to $1.4 trillion in annual global losses.
This guide covers the two dominant interface families: CAN (Controller Area Network) for deterministic, low-overhead device-to-device communication, and Industrial Ethernet for high-bandwidth, scalable networking across the plant floor.
By the end, you'll know how each protocol works, where they differ, and which one fits your automation setup — or whether you need both.
TLDR: Key Takeaways
- CAN bus delivers real-time, deterministic communication in electrically noisy environments—ideal for motion control and sensor networks
- Industrial Ethernet (EtherNet/IP, EtherCAT, PROFINET) provides far higher bandwidth for large-scale device networks
- The two technologies aren't competitors—many systems use CAN at the device level and Ethernet at the control/enterprise level
- Choose based on data rate, node count, latency requirements, and existing infrastructure
- Neither protocol ships with built-in security; cybersecurity measures must be layered on top
CAN Bus in Industrial Automation: Foundations and Key Features
The Controller Area Network is a serial, multi-master communication protocol developed by Bosch in the 1980s, originally for automotive use. CAN allows multiple microcontrollers and nodes to communicate without a central host — no central coordinator required. It was officially released at the Society of Automotive Engineers congress in 1986 and internationally standardized as ISO 11898 in 1993.
Today it's a foundational standard across industrial automation, robotics, and medical devices. Over two billion CAN nodes are deployed annually across automotive and mobile machinery sectors alone.
How CAN Bus Communication Works
Arbitration: When multiple nodes attempt to transmit simultaneously, CAN uses non-destructive, priority-based arbitration. Messages with lower numeric IDs win the bus. No node is permanently blocked — lower-priority nodes retry after the higher-priority message completes.
Frame structure: Each CAN frame includes:
- An identifier (11-bit in CAN 2.0A standard; 29-bit in CAN 2.0B extended)
- A data field of up to 8 bytes
- Built-in error detection (CRC, bit monitoring, acknowledgment)
The short frame size is intentional: it minimizes bus occupancy and keeps latency predictable. That same constraint, however, is what drove the development of higher-speed and higher-capacity variants for more data-intensive applications.
CAN Variants and Higher-Layer Protocols for Industrial Use
CAN-FD (Flexible Data Rate):
Introduced by Bosch in 2012, CAN-FD addresses the bandwidth limitations of classic CAN. It extends the data payload from 8 bytes to 64 bytes and achieves data-phase bit rates up to 8 Mbps in practical industrial applications using CAN SIC transceivers. Theoretical implementations have demonstrated speeds of 12–15 Mbps, though these are not standard for typical deployments.

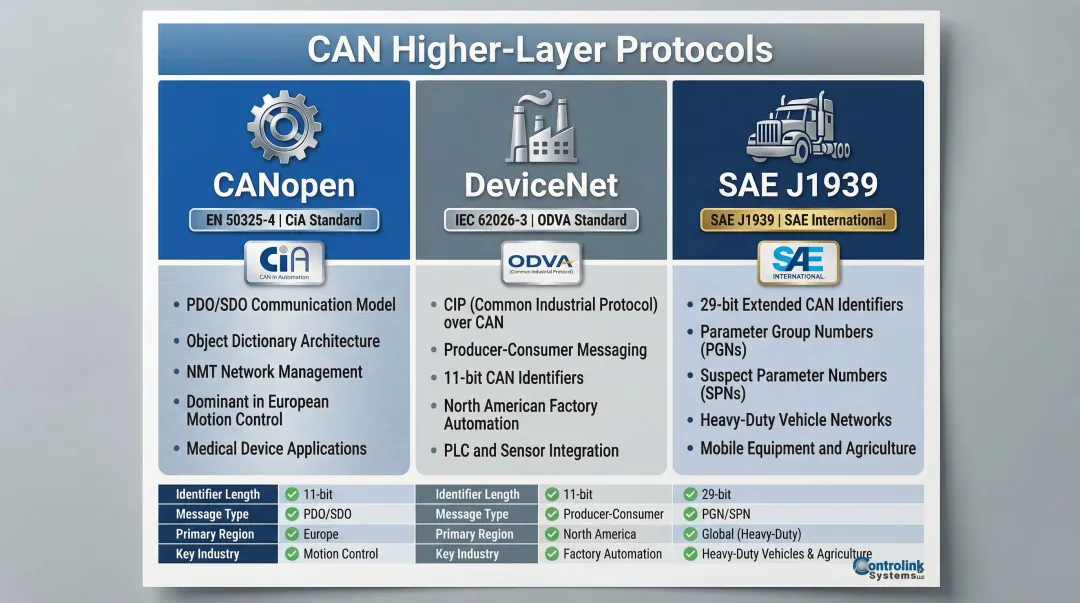

Beyond CAN-FD, three higher-layer protocols extend CAN's capabilities for specific industrial domains:
- CANopen – Standardized in EN 50325-4, uses Process Data Objects (PDO) and Service Data Objects (SDO). Dominant in European embedded control, motion control, and medical equipment.
- DeviceNet – Standardized in IEC 62026-3, runs the Common Industrial Protocol (CIP) over CAN. Widely adopted in North American factory automation and discrete manufacturing.
- SAE J1939 – Uses 29-bit identifiers mapped to Parameter Group Numbers (PGNs). The standard for heavy-duty commercial vehicles, trucks, and mobile equipment.
Industrial Ethernet in Automation: Protocols, Standards, and Capabilities
Industrial Ethernet shares the same physical layer foundation as standard office Ethernet. The difference lies in what's added on top: ruggedized hardware (M12 connectors, shielded cabling, wide-temperature components) and application-layer protocols that enforce determinism, low latency, and real-time control. Standard TCP/IP alone cannot guarantee any of this.
The determinism gap:
Standard Ethernet is probabilistic: "best effort" delivery with no timing guarantees. Industrial automation requires deterministic communication, meaning the network must deliver a command within a predictable time window every single time. Industrial Ethernet protocols achieve this through real-time channels, time-slotting, and prioritization.
Key Industrial Ethernet Protocols Explained
EtherNet/IP holds approximately 29% market share in North America, making it the dominant protocol in automotive and food/beverage manufacturing. It runs on standard TCP/IP and UDP/IP infrastructure, built on the Common Industrial Protocol (CIP). Devices are classified as objects with defined attributes, which simplifies integration of PLCs, drives, and I/O systems without proprietary cabling or switches.
PROFINET, developed by Siemens, is the preferred protocol across European manufacturing facilities. It reached 78.8 million installed nodes in 2024, adding 9.5 million in a single year. Running over standard Ethernet as a Layer 7 protocol, it offers two real-time channels for different performance tiers:
- PROFINET RT — bypasses TCP/IP processing for time-critical tasks
- PROFINET IRT — isochronous real-time with cycle times down to 31.25 µs and jitter below 1 µs
EtherCAT is the performance leader for motion control applications, logging 88 million installed nodes in 2024 with 11 million added that year — the fastest growth among major protocols. Developed by Beckhoff, it uses a ring-topology architecture where each slave device reads and inserts data "on the fly" as frames pass downstream. No active switches are needed between nodes, and Distributed Clocks synchronization delivers cycle times as low as 12.5 µs with jitter below 1 µs. It's the go-to choice for multi-axis motion control and high-speed robotics.

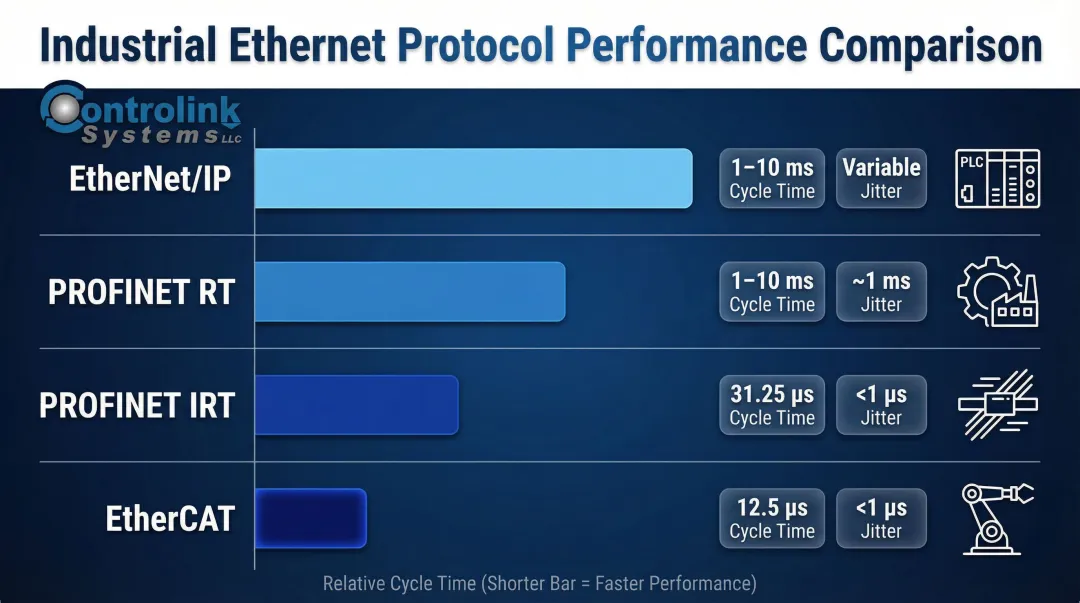

Protocol Comparison at a Glance
| Protocol | Typical Cycle Time | Jitter | Primary Use Case |
|---|---|---|---|
| EtherNet/IP | ~1–10 ms | Variable | PLCs, I/O, North American discrete manufacturing |
| PROFINET RT | ~1–10 ms | ~1 ms | General automation, European facilities |
| PROFINET IRT | 31.25 µs | <1 µs | High-speed motion, synchronized axes |
| EtherCAT | 12.5 µs | <1 µs | Multi-axis motion control, robotics |
CAN vs. Industrial Ethernet: Side-by-Side Comparison
| Feature | CAN Bus | Industrial Ethernet |
|---|---|---|
| Max Speed | 1 Mbps (Classic) / 8 Mbps (CAN-FD) | 100 Mbps to 10 Gbps |
| Max Payload | 8 bytes (Classic) / 64 bytes (CAN-FD) | Up to 1,500 bytes (Standard Ethernet) |
| Cycle Time | Milliseconds (baud-rate dependent) | 12.5 µs (EtherCAT) / 31.25 µs (PROFINET IRT) |
| Synchronization Jitter | N/A (Event-driven arbitration) | < 1 µs (Distributed Clocks / IRT) |
| Cable Length Limits | 40m at 1 Mbps | 100m between active nodes (copper) |
| Infrastructure Cost | Low (Daisy-chained, no active switches) | Higher (Requires managed/cut-through switches) |
Data Rate and Bandwidth
CAN tops out at 1 Mbps (CAN-FD: up to 8 Mbps). Industrial Ethernet ranges from 100 Mbps to 10 Gbps. CAN handles short, frequent control messages efficiently. Ethernet is the right call when transmitting large datasets, video streams, or high-frequency sensor data.
Network Addressing and Topology
CAN uses message-ID-based broadcast with no device addressing. All nodes receive all messages and filter by ID, which suits smaller, flat bus topologies. Ethernet uses unique MAC/IP addressing for direct node-to-node communication and supports star, ring, and hybrid topologies that scale to enterprise level.
Real-Time Performance
CAN delivers native determinism through arbitration and short frames, so latency is inherently bounded. Industrial Ethernet achieves determinism through time-scheduling mechanisms like IRT and TSN — standard Ethernet alone is not deterministic. For the most time-critical embedded control loops, CAN remains the simpler choice.
Wiring, Cost, and Complexity
CAN requires only a single twisted pair and simple transceivers. That means low cost and minimal wiring overhead, making it ideal for space-constrained or cost-sensitive embedded systems. Industrial Ethernet requires more infrastructure (managed switches, M12 cabling, protocol-aware hardware) but scales easily to hundreds of nodes across large facility networks.
Error Handling and Fault Tolerance
Both protocols include robust error detection. CAN's fault confinement isolates faulty nodes without shutting down the network. Industrial Ethernet protocols like PROFINET and EtherCAT support redundant ring topologies that automatically reroute data around a failed segment.
When to Use CAN, Ethernet, or Both
When CAN Is the Right Choice
- Embedded motion control loops require deterministic, low-latency communication
- Sensor/actuator networks send short messages with strict latency requirements
- Cost-sensitive multi-node systems (e.g., connecting servo drives along a machine axis) need low wiring overhead
- Environments with significant electrical interference benefit from differential signaling
When Industrial Ethernet Is the Right Choice
- Plant-wide device integration connects PLCs, HMIs, SCADA systems, and enterprise databases
- Applications require high data throughput (vision systems, vibration analysis, high-speed data acquisition)
- Systems must scale to hundreds of nodes or connect to cloud/IT infrastructure
- Real-time performance demands microsecond-level synchronization for multi-axis robotics or CNC applications
Using CAN and Ethernet Together

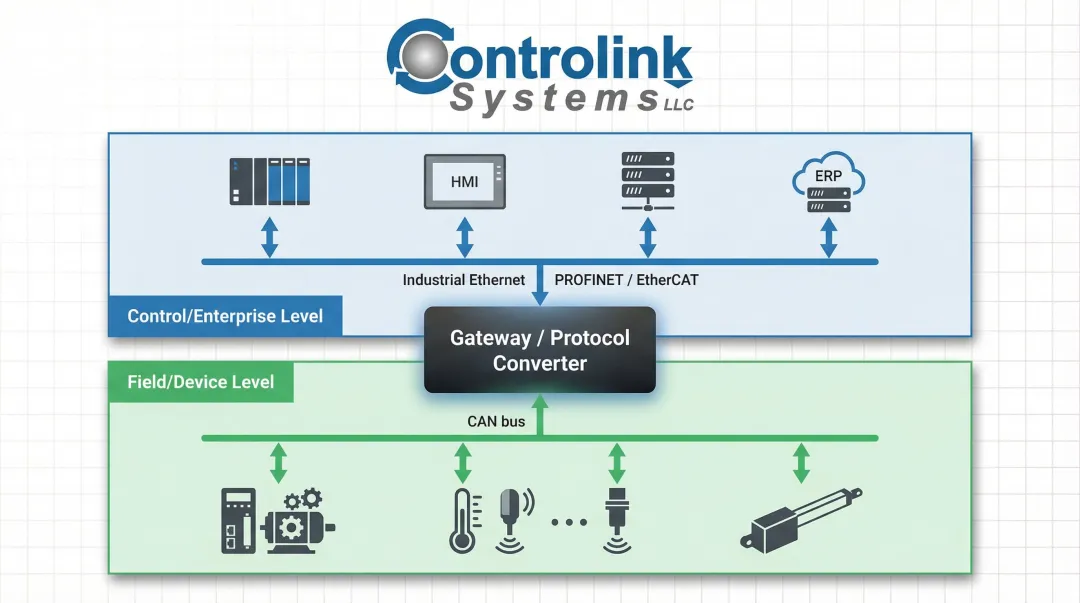

Many modern industrial systems layer both — CAN at the device/field level for tight control loops, and Ethernet at the control and enterprise levels for supervisory control, data logging, and ERP integration. Gateways and protocol converters bridge the two layers. That demand is growing: the global Industrial Protocol Gateway market was valued at $2.76 billion in 2024 and is projected to reach $4.37 billion by 2031.
Controlink Systems works across both layers, integrating CAN and Ethernet-based protocols (including Modbus, PROFINET, and EtherCAT) for CNC, process monitoring, and shop-floor automation applications across manufacturing environments.
Implementing Ethernet and CAN Interfaces: What to Consider
Physical infrastructure requirements:
CAN installations need:
- Proper termination resistors (120Ω at each end of the bus) to prevent signal reflection
- Appropriate cable length (bus length inversely related to speed—40m maximum at 1 Mbps)
- Differential transceivers for noise immunity
Industrial Ethernet installations require:
- M12 connectors rated for the environment (IP67/IP68 for wash-down areas)
- Shielded cabling (F/UTP minimum) near high-EMI sources
- Managed switches with QoS/VLAN capability for real-time protocols
Integration with existing automation systems:
Protocol compatibility with existing PLCs and motion controllers is critical before committing to any industrial Ethernet standard. Two questions every engineer should answer upfront:
- Does the controller support the chosen protocol natively, or does it require a gateway?
- Has the migration plan accounted for downtime risk? 83% of senior decision-makers report unplanned downtime costs at least $10,000 per hour, with 76% estimating costs can reach $500,000.
An integration partner fluent across multiple protocols reduces that risk considerably. Controlink Systems has over 25 years of experience linking manufacturing systems together, supporting CAN, EtherCAT, PROFINET, and Modbus across CNC, process monitoring, and shop-floor automation applications.
Frequently Asked Questions
What is the main difference between CAN bus and Industrial Ethernet?
CAN bus is a low-overhead, deterministic serial protocol suited to embedded device networks with short, real-time messages. Industrial Ethernet is a higher-bandwidth infrastructure that, combined with protocols like EtherNet/IP or PROFINET, supports large-scale, scalable automation networks across a facility.
Can CAN bus and Ethernet be used together in the same industrial system?
Yes, many modern automation architectures use both—CAN at the field/device level for tight control loops and Ethernet at the control and enterprise level for supervisory communication and data integration, connected through protocol gateways.
What industrial Ethernet protocols are most commonly used in manufacturing?
EtherNet/IP, PROFINET, EtherCAT, and Modbus TCP are the four most prevalent options. EtherNet/IP holds approximately 29% market share and leads in North America, while PROFINET dominates European discrete and process automation with 24.7–26% market share.
What is CAN-FD and when should it be used instead of classic CAN?
CAN-FD (Flexible Data Rate) extends classic CAN's payload to 64 bytes and speeds to 8 Mbps, making it the right choice when CAN's 1 Mbps bandwidth is insufficient but Ethernet infrastructure overhead is not justified.
Is Industrial Ethernet secure by default?
No. Standard Industrial Ethernet protocols include no encryption or authentication by default. Additional security layers are required: network segmentation, firewalls, VLANs, and application-level controls — especially as OT networks become more connected to IT systems.
How do I choose the right communication protocol for my automation project?
Evaluate data rate requirements, node count, real-time latency needs, existing PLC/controller compatibility, physical environment conditions, and long-term scalability. Working with an integration partner experienced in CNC and shop-floor communication systems — such as Controlink Systems LLC — can reduce selection errors and shorten implementation timelines.
