Introduction
Change of Direction (COD) is a critical athletic performance component in nearly every team and court sport — soccer, basketball, rugby, and tennis alike. Force plates measure the ground reaction forces driving these movements, giving coaches and researchers objective data that video analysis and timing gates simply can't provide.
The process looks simple on the surface. In practice, data quality depends heavily on setup choices, protocol design, metric selection, and parameter control. Results vary widely across labs and facilities — and without standardization, metrics like braking impulse or asymmetry ratios become unreliable for tracking athletes or comparing populations.
This guide covers the required equipment, measurement protocol, key COD metrics, the variables that affect data quality, and the most common errors to avoid.
TL;DR
- Force plates capture ground reaction forces (GRFs) in multiple axes during a COD task, giving coaches objective kinetic data beyond completion time
- Effective COD measurement requires a dual force plate configuration capable of capturing horizontal forces, not just vertical
- The four key metrics are braking GRF, propulsive GRF, ground contact time, and limb asymmetry index
- Pre-test preparation requires calibration, standardized verbal cues, and accurate body weight input
- Cross-session comparisons are valid only when the same system, protocol, and athlete positioning are used each time
How to Measure Change of Direction Using Force Plates
Step 1: Configure and Calibrate Your Force Plate Setup
For a standard 45°–180° COD task, two force plates should be positioned side by side (one per foot at the turn point) to capture individual limb kinetics separately. Single-plate setups lose bilateral resolution entirely, meaning you cannot detect left-right asymmetries or capture the critical penultimate foot contact (PFC) that precedes the final plant step.
Calibration must be verified before each testing session. Incrementally place known calibrated weights (such as IWF-accredited bumper plates) on the plates, convert mass to Newtons (kg × 9.81), and check each reading against the expected value.
Signal drift is a real risk on regularly used systems. Both piezoelectric and strain-gauge plates experience thermal and mechanical drift over time, which corrupts baseline force values and impulse calculations if left unchecked.
Sampling rate matters. For COD tasks involving very rapid force transients during cutting movements, research mandates a minimum sampling rate of 1000 Hz. Lower sampling rates risk missing peak force values and distorting the braking/propulsive phase boundary, which invalidates downstream calculations.
Step 2: Establish Baseline and Record Athlete Body Weight
Have the athlete stand still on the force plate for at least one second before each trial to capture a clean body weight baseline. This baseline feeds into all downstream calculations for net impulse, center of mass velocity, and ratio-scaled metrics like impulse per kilogram of body mass.
Record body weight on every trial, not just once per session. Signal noise varies between trials, and skipping this step introduces systematic error into your force calculations.
Step 3: Execute the COD Test Protocol

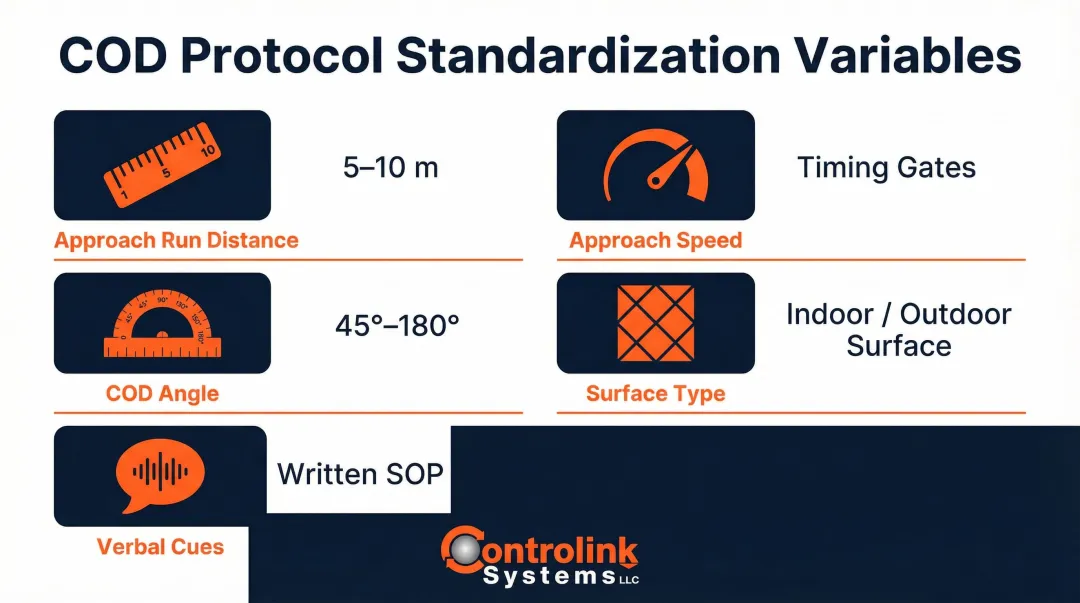

Standardize every parameter. The following variables must remain identical across all sessions to ensure longitudinal comparisons are valid:
- Approach run distance (commonly 5–10 meters)
- Approach speed (use timed entry gates or fixed run-up to control velocity)
- COD angle (45°, 90°, 135°, or 180°)
- Surface type (court, turf, or lab flooring)
- Foot strike position on the plate (use tape markers to ensure consistent placement)
Changing any of these between sessions invalidates longitudinal comparisons. Faster approach velocities drastically increase braking GRF and knee joint loading, so approach speed variance is one of the most common sources of within-session data variability.
Verbal cue standardization matters more than most practitioners expect. Cueing "push off as hard and fast as possible" versus "change direction quickly" can meaningfully alter an athlete's movement strategy and the resulting force data. Studies show that external focus cues produce significantly faster COD performance and greater horizontal propulsive forces compared to neutral or internal cues. Write all cues into a standard operating procedure so every tester delivers them identically.
Run a minimum of 3 trials per direction/limb to establish reliable average values. Exclude and repeat any outlier trials where the athlete missed the plate, had partial contact, or false-started.
Step 4: Analyze and Interpret the Force-Time Data
Segment the force-time trace into the braking (eccentric deceleration) and propulsive (concentric acceleration) phases using the anterior-posterior (AP) GRF signal. The braking phase is defined by negative, posterior-directed AP force; the instant AP force crosses from negative to positive marks the start of propulsion.
Calculate the key COD outputs from the segmented force-time curve:
- Braking impulse: Time integral of force over the braking phase (N·s/kg)
- Propulsive impulse: Time integral of force over the propulsion phase (N·s/kg)
- Peak medial GRF: Maximum force directed medially during the plant phase
- Ground contact time (GCT): Total duration from initial contact to toe-off
Use the force plate's analysis software or custom calculation tools. Event detection thresholds of >10 N or >20 N vertical GRF are standard to accurately detect foot strike while avoiding false triggers from signal noise.
What You Need Before Starting COD Force Plate Testing
Getting this setup right before testing starts saves you from discovering data problems after the athlete has left the room. The two areas that matter most: equipment specifications and session standardization.
Equipment and System Requirements

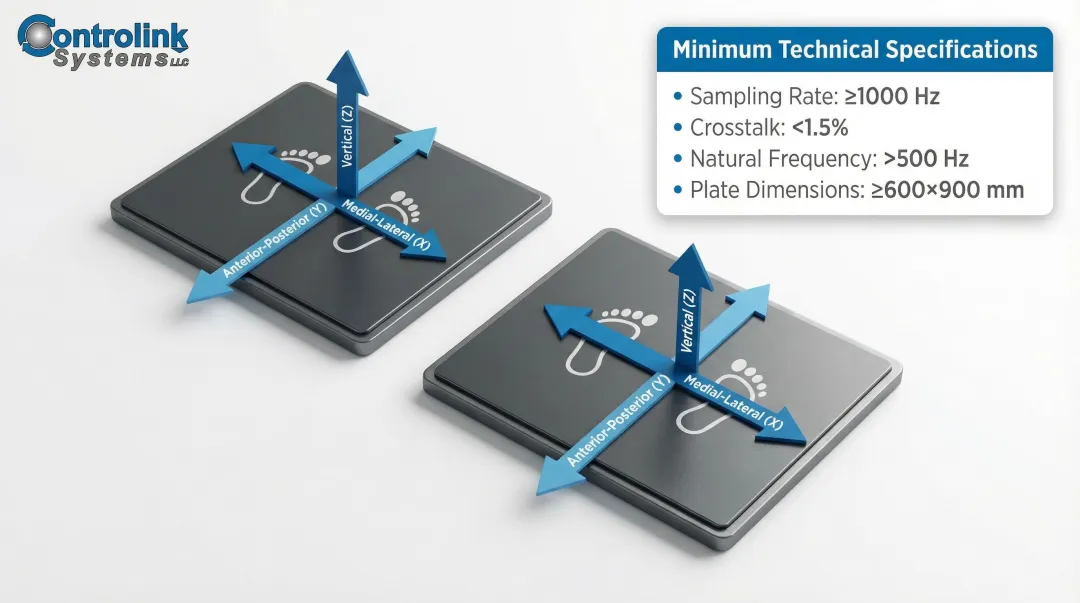

A 3D (triaxial) force plate or dual-plate configuration is the right choice for COD testing because horizontal forces — medial-lateral and anterior-posterior — are as diagnostically important as vertical force. Uniaxial plates are insufficient for COD assessment because they cannot capture the directional forces that actually define the movement.
Key manufacturer specifications to verify:
- Minimum plate dimensions: 600×900 mm or 600×1200 mm for comfortable, full-foot placement
- Sampling rate: ≥1000 Hz
- Crosstalk: <1.5% of applied load (ideally <0.2%)
- Natural frequency: >500 Hz to prevent plate vibration from interfering with impact signals
Do not mix force plate systems. Data from different manufacturers — or even different units from the same manufacturer — introduces discontinuity in longitudinal tracking, making it impossible to distinguish real performance changes from equipment variance.
Session Documentation and Standardization
Document for every session:
- Athlete body mass
- Footwear type (or standardized barefoot condition)
- Surface friction/mat
- Ambient temperature (affects sensor baseline)
- Plate orientation relative to approach direction
Operator training is required. Testers must know how to review raw force-time traces for artifacts, recognize invalid trials (missed plate contact, partial foot placement), and apply consistent phase-detection rules. A missed contact flagged too late wastes an entire testing session.
Key COD Metrics Force Plates Capture
COD performance is not captured by a single number. Force plates provide a multidimensional profile that completion-time tests like the 505 or T-Test cannot replicate.
Braking Ground Reaction Force (GRF) / Braking Impulse
Braking GRF measures the anterior-directed (decelerating) force and its time-integral during the plant phase. A high braking impulse with short ground contact time indicates efficient deceleration, while excessive ground contact time at high braking forces can signal fatigue or injury risk.
Faster COD performers generate larger braking impulses (e.g., 1.5 N·s/kg vs 1.2 N·s/kg) in shorter timeframes, reflecting superior eccentric strength and deceleration capacity.
Propulsive GRF / Push-Off Impulse
Propulsive GRF captures the posterior-directed (accelerating) force following the direction change, reflecting reacceleration quality. The ratio of propulsive to braking impulse provides insight into overall COD efficiency—faster athletes demonstrate a greater horizontal-to-vertical propulsive ratio, indicating superior technical ability to direct force horizontally.
Medial-Lateral GRF
This axis is uniquely captured by 3D force plates and critical for COD. The medial force component during the plant foot reflects the lateral push needed to redirect the center of mass. High medial-lateral GRFs are directly linked to increased Knee Abduction Moments (KAM), one of the primary loading mechanisms behind non-contact ACL tears.
Ground Contact Time (GCT)
GCT in the context of COD bridges the gap between force data and time-based performance measures. The COD index (CoDi) incorporates GCT as a speed element—a fast athlete who applies high force in minimal contact time scores better than one who lingers. Typical GCT values range from ~200 ms for 45° cuts to ~450–510 ms for 180° pivots.
Limb Asymmetry Index
Beyond timing metrics, force plates also expose bilateral force imbalances — the Limb Asymmetry Index quantifies the percentage difference in force production between the preferred and non-preferred cutting limb. Research links asymmetry thresholds above 10–15% to elevated re-injury risk, particularly in ACL rehabilitation populations.
The traditional ≥90% Limb Symmetry Index (LSI) used in Return-to-Sport clearance frequently overestimates recovery, because the "healthy" contralateral limb detrains post-injury — making force plate asymmetry data a more reliable benchmark.
| Metric | What It Measures | Typical Values | Primary Relevance |
|---|---|---|---|
| Braking GRF / Impulse | Deceleration force during plant phase | 1.2–1.5 N·s/kg | Speed, eccentric strength |
| Propulsive GRF / Impulse | Reacceleration force post-direction change | Ratio vs. braking | COD efficiency, technique |
| Medial-Lateral GRF | Lateral force to redirect center of mass | Varies by cut angle | ACL injury risk (KAM) |
| Ground Contact Time | Duration of foot contact during cut | 200 ms (45°) – 510 ms (180°) | Speed, CoDi score |
| Limb Asymmetry Index | L/R force difference between cutting limbs | Flag at >10–15% | Return-to-Sport readiness |
Key Parameters That Affect COD Measurement Results
Even perfect equipment can produce unreliable COD data if the following control variables are not actively managed.
Approach Speed and Consistency
Athletes performing a COD task from a standing start versus a 10m approach run will generate fundamentally different force profiles. Without controlling approach speed, braking GRF data is confounded. Timing gates or optical sensors positioned 2 meters before the COD point are used to gate athletes into a defined velocity window (e.g., 4.5 ± 0.2 m/s).
Approach speed variance between trials is one of the most common sources of within-session data variability in COD force plate studies.
COD Angle
Sharper angles (e.g., 180° pivot) produce greater braking forces and longer GCT than shallower angles (e.g., 45° cut). Angle must be fixed and verified with floor markings for every trial. Comparing athletes tested at different angles is a category error, since the same athlete at 90° vs. 135° will show meaningfully different force outputs.
Foot Placement on the Plate
Partial foot contact or inconsistent plant foot positioning changes the pressure distribution and center of pressure (CoP) trajectory. Use standardized foot position markers or tape guides to ensure full, consistent contact.
Inconsistent foot placement skews medial-lateral GRF readings and invalidates asymmetry calculations.
Sampling Rate and Signal Filtering
COD tasks involve rapid force transients (high rate of force development). An insufficient sampling rate or overly aggressive low-pass filter will clip peak force values and distort the braking/propulsive phase boundary. Applying different filter cut-offs to kinematic and kinetic data creates artifact spikes in joint moment calculations.
Recommended filtering: Apply identical 4th-order zero-lag Butterworth filters with a 15 Hz cut-off to both force and kinematic data to ensure valid inverse dynamics.
Common Mistakes When Measuring COD With Force Plates
These mistakes appear regularly across testing environments — from high-performance labs to field setups — and each one quietly degrades data quality in a different way.
Skipping or Rushing Calibration
Practitioners often assume commercial force plates maintain factory calibration indefinitely. Unchecked signal drift skews GRF accuracy, and a simple pre-session weight-plate check catches this before bad data enters your dataset.
Perform a hardware zero/tare immediately before every trial while the plate is completely unloaded. It takes 30 seconds and eliminates one of the most common sources of systematic error.
Inconsistent Verbal Cues Across Testers
When multiple staff members run COD tests using different instructions, athlete effort and strategy shift in ways that look like real performance changes. This is especially damaging in longitudinal monitoring programs, where you need to trust that differences reflect the athlete — not the tester.
Write standard operating procedures for every verbal cue and enforce them across all staff. Consistency here is non-negotiable.
Reporting Only Vertical Force From a Single Plate
Many practitioners default to vertical-axis metrics because that's what jump testing uses. For COD, this falls short. Consider what you're missing with this approach:
- Horizontal GRF — the directional force that defines how an athlete redirects momentum
- Bilateral asymmetry — impossible to detect with a single-plate configuration
- Braking vs. propulsion split — only visible when both limbs are measured independently
A dual-plate setup with full triaxial output is the minimum standard for meaningful COD analysis.
Frequently Asked Questions
How do you measure COD?
COD can be measured using force plates positioned at the direction-change point to capture ground reaction forces during the plant and push-off phases, or using timing gates for time-based measurement. Force plates provide kinetic detail (braking impulse, GCT, asymmetry) that time alone cannot.
What metrics do force plates measure?
Force plates measure vertical GRF, anterior-posterior GRF, medial-lateral GRF, center of pressure, ground contact time, rate of force development, impulse, and derived metrics like limb asymmetry index. 3D plates capture all three axes simultaneously.
How many force plates do you need to measure change of direction?
Two force plates (one per foot at the plant point) are recommended for bilateral comparison. A single plate can capture the plant limb's kinetics but misses the contralateral limb and cannot calculate asymmetry.
What is the difference between COD speed and agility when using force plates?
COD speed is a pre-planned, predictable directional change measurable on force plates, while agility involves a reactive, decision-driven response to a stimulus. Force plates measure the kinetic quality of COD, but true agility testing requires an additional perceptual-cognitive trigger.
What is an acceptable limb asymmetry threshold in COD force plate testing?
ACL rehabilitation research suggests asymmetry above 10–15% is associated with elevated re-injury risk. The threshold should be contextualized by sport and position, and compared to pre-injury capacity rather than just the contralateral limb.
Can you use force plates to screen for COD injury risk?
Force plates can identify elevated braking GRF, prolonged ground contact times, and significant bilateral asymmetries associated with ACL and ankle injury mechanisms during cutting. This is screening data and must be interpreted alongside clinical assessment, not as a standalone diagnostic tool.
