Introduction
Integrating HMI operator panels into TCP/IP networks is moderately to technically demanding. It requires accurate IP configuration, protocol matching between HMI and PLC/controller, and correct network segmentation to avoid communication failures in live production environments. Unplanned downtime costs businesses an average of $160,000 per hour, reaching up to $700,000 for large enterprises according to Aberdeen Group research. When PLCs lose communication with HMI panels, they default to a safe state and shut down machinery — stopping production on the spot.
This integration should be handled by automation engineers or experienced in-house technicians with both networking knowledge and industrial control system familiarity. A purely IT-focused team without OT experience will often misconfigure critical settings like protocol ports, register mappings, or subnet assignments.
Poor integration creates real operational risk:
- Intermittent HMI dropouts disrupting operator visibility
- Failed PLC communications triggering unplanned shutdowns
- Corrupted process data compromising part quality
- Safety incidents on the shop floor in worst-case scenarios
TL;DR
- HMI panel integration requires pre-planned IP addressing, verified protocol compatibility, and proper network segmentation before connecting anything
- Common protocols include Modbus TCP, EtherNet/IP, PROFINET, and OPC UA, each with specific hardware and software requirements
- Integration follows a defined sequence: assess prerequisites → assign network settings → configure protocol connections → map data tags → validate communication
- The three most preventable failures are IP conflicts, mismatched communication drivers, and firewall/port blocking
- Always validate communication with live data polling and functional testing before production operation
What You Need Before Integrating HMI Panels into a TCP/IP Network
Successful integration begins well before any cable is plugged in. Three things must be confirmed first: network readiness, hardware compatibility, and protocol alignment between the HMI and the target controller.
Prerequisites and Network Readiness

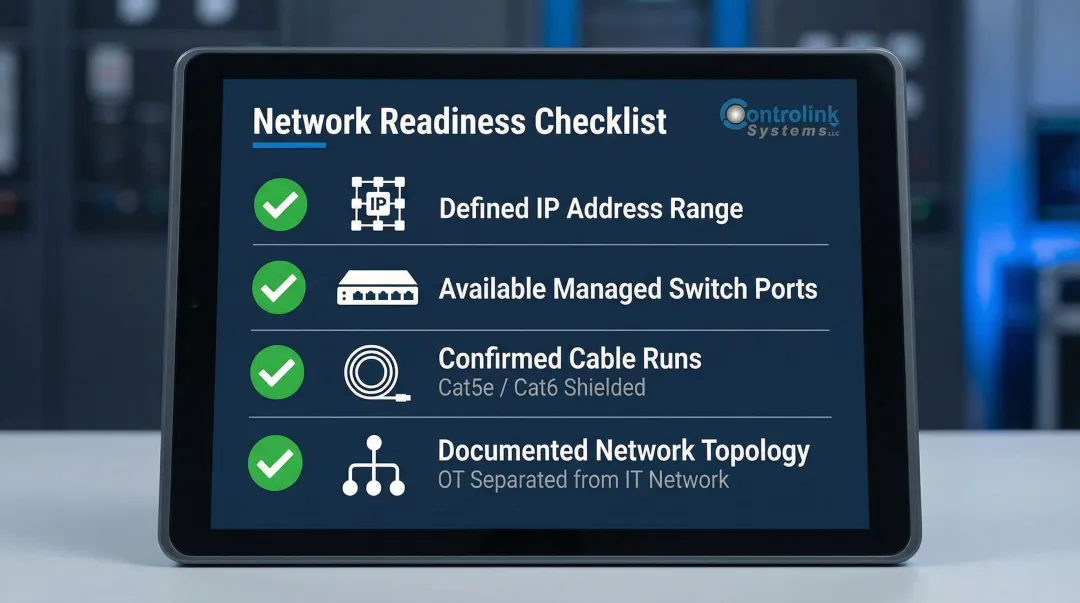

A "network-ready" industrial environment means:
- Defined IP address range for the OT network
- Available managed switch ports with documented port assignments
- Confirmed cable runs (minimum Cat5e, ideally Cat6 shielded in noisy shop environments)
- Documented network topology that separates HMI traffic from office/IT networks where possible
Network segmentation is critical. HMI panels communicating with PLCs should reside on a dedicated OT subnet or VLAN to reduce broadcast traffic, prevent unauthorized access from the IT network, and minimize interference from non-industrial traffic.
ISA/IEC 62443 formalizes this through "Zones and Conduits": a zone groups assets sharing common security requirements, while a conduit defines the communication channels connecting those zones.
Do not proceed with integration if:
- No confirmed IP address plan exists
- No knowledge of which ports the HMI's protocol uses
- No access to the PLC or controller's communication settings
- The existing network is already at capacity with no managed switch available
NIST SP 800-82r3 reinforces this by recommending the separation of OT networks from corporate networks, implementing network segmentation using firewalls and unidirectional gateways to control information flows between network segments.
Hardware and Software Compatibility Checks
Once the network plan is confirmed, verify hardware and software compatibility before touching any configuration. The engineer must confirm:
- The HMI model's supported communication interfaces (Ethernet port, serial port)
- The HMI configuration software version and which protocol drivers are licensed/included
- The target controller's supported protocols and whether its firmware supports the intended communication method
Legacy PLCs may require additional hardware modules—such as a Modbus TCP communications card—to communicate over Ethernet. Never assume native compatibility without checking the documentation first; it's a frequent and expensive mistake.
Physical infrastructure matters just as much as the software stack. The TIA-1005-A standard classifies environmental severity using the M.I.C.E. system (Mechanical, Ingress, Climatic/Chemical, Electromagnetic). In most plant environments, that means shielded cables and industrial-grade RJ-45 or M12 connectors are required—not optional.
Choosing the Right Protocol for HMI-TCP/IP Communication
TCP/IP is the transport layer—it carries the data between devices—but the industrial protocol running on top of TCP/IP determines how HMI tags map to controller memory, what data types are supported, and how fast updates occur. Choosing the wrong protocol wastes time and often requires hardware changes.
According to the 2025 HMS Networks Industrial Network Market Shares report, Ethernet-based industrial networks account for 76% of new factory automation nodes.
The Four Most Common HMI Communication Protocols
Modbus TCP (4% market share, TCP 502)The most universal choice. Simple register-based client/server addressing means it works across virtually any HMI and PLC brand combination. Best for cross-brand integrations and legacy system upgrades.
EtherNet/IP (23% market share, TCP/UDP 44818 + UDP 2222)The standard in Allen-Bradley/Rockwell environments. Its CIP (Common Industrial Protocol) object model supports richer data types and implicit (cyclic) messaging—eliminating the need for continuous polling.
PROFINET (27% market share, Layer 2 EtherType 0x8892)Siemens-native and dominant in European manufacturing. PROFINET Real-Time (RT) bypasses TCP/IP entirely, pushing frames directly to the application layer for cycle times as low as 250 µs.
OPC UA (TCP 4840)Platform-independent and built for vertical integration. SSL/TLS-based security makes it the right choice when data needs to travel beyond the machine level to SCADA, MES, or cloud platforms.
Protocol Selection Guidance
Start with these three questions in order:
- What protocol does your PLC natively support? Match the protocol to the controller first.
- Does your HMI software include a licensed driver for that protocol? Confirm before purchasing.
- What are your performance requirements? Polling speed, data volume, and timing determinism narrow the remaining options.

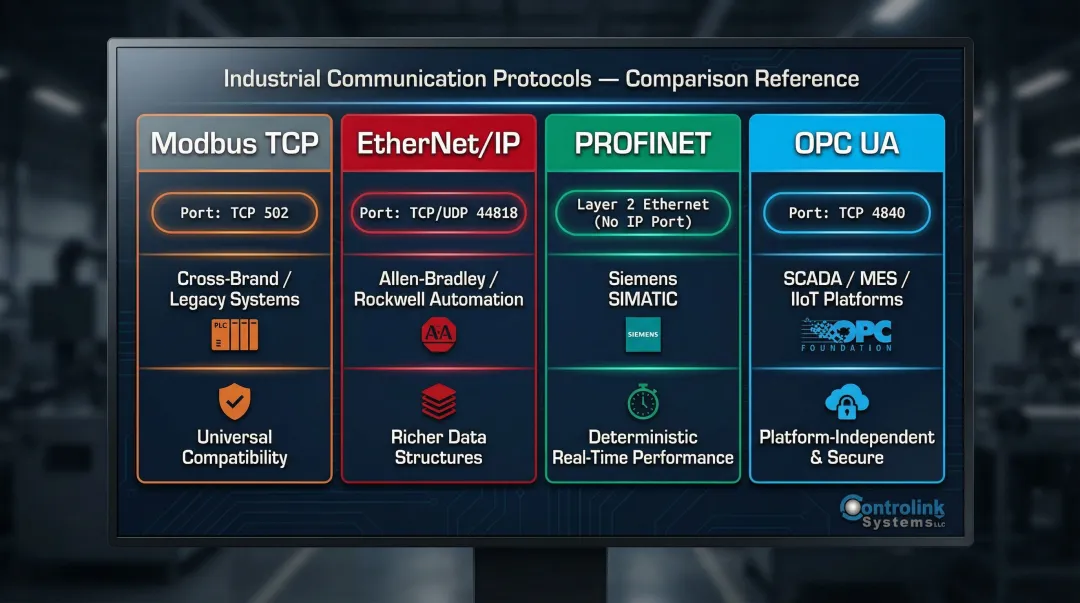

| Protocol | Port(s) | Typical HMI/PLC Pairing | Key Advantage |
|---|---|---|---|
| Modbus TCP | TCP 502 | Cross-brand, legacy systems | Universal compatibility |
| EtherNet/IP | TCP/UDP 44818, UDP 2222 | Allen-Bradley/Rockwell | Richer data structures, cyclic updates |
| PROFINET | Layer 2 (0x8892) | Siemens SIMATIC | Deterministic real-time performance |
| OPC UA | TCP 4840 | SCADA/MES/IIoT integration | Platform-independent, secure |
For shops running mixed-brand equipment, protocol support across the software stack matters as much as the hardware. Controlink Systems' software solutions support Modbus, serial, Profinet, and EtherCAT, so multi-vendor floors can establish reliable TCP/IP communication without adding a separate protocol converter.
Step-by-Step Guide: Integrating HMI Panels into TCP/IP Networks
Integration follows a defined sequence. Skipping or reversing steps—particularly configuring the HMI before the network is confirmed ready—is the most frequent cause of frustrating rework during commissioning.
Step 1: Assign and Configure IP Addressing
Both the HMI panel and the target controller must have static IP addresses on the same subnet (e.g., 192.168.1.x / 255.255.255.0). Dynamic (DHCP) addressing should be avoided for HMI panels in production environments because address changes cause communication loss.
NIST SP 800-82r3 recommends static addressing as the default for ICS devices, noting that DHCP lacks authentication and leaves networks vulnerable to rogue servers. For HMIs and critical controllers, static IPs also simplify troubleshooting by eliminating dependence on a DHCP server entirely.
Configuration steps:
- Access the HMI's network settings (typically through the device's system settings menu or configuration software)
- Assign the static IP address
- Enter the subnet mask (typically 255.255.255.0 for /24 networks)
- Specify the default gateway
- Document the assigned IP in your commissioning records
Step 2: Configure the Communication Protocol Connection in HMI Software
Create a new controller connection in the HMI configuration software:
- Select the correct protocol driver (e.g., Modbus TCP, EtherNet/IP)
- Enter the controller's IP address
- Specify the correct port number (e.g., 502 for Modbus TCP, 44818 for EtherNet/IP)
- Set communication parameters such as polling interval and timeout values
For EtherNet/IP connections, modern HMI configuration software allows engineers to import .L5X or .CSV tag files directly from Rockwell RSLogix/Studio 5000, enabling tag-based addressing without calculating memory offsets.
Step 3: Map Data Tags to Controller Addresses
After the connection is established, you'll map HMI display tags to specific controller memory addresses (e.g., Holding Registers for Modbus, tag addresses for EtherNet/IP).
Critical considerations:
Modbus TCP addressing: Modbus.org specifies addressing from 0 to 65535 in the Protocol Data Unit, but holding registers are often documented with a "4" prefix and 1-based numbering (e.g., register 40001). The address sent in the actual command for register 40001 is 0000. This off-by-one error catches even experienced engineers off guard.
32-bit endianness handling: Modbus defines Big-Endian byte order for 16-bit registers but leaves word order for 32-bit values undefined. Configure byte-swap or word-swap settings manually (e.g., ABCD to CDAB) to correctly read IEEE-754 floats spanning two registers.
Incorrect address mapping produces silent failures — the HMI displays data that looks valid but is reading the wrong register entirely. Always cross-reference the controller's memory map documentation during this step.
Step 4: Load Configuration to the HMI and Establish Physical Connection
- Transfer the completed HMI project to the physical panel (via Ethernet, USB, or SD card depending on the HMI model)
- Connect the HMI to the network switch or directly to the controller's Ethernet port
- Power up in the correct sequence (controller first, then HMI)
Post-Integration Checks and Validation
Minimum validation steps before declaring integration complete:
- Confirm the HMI's communication status indicator shows an active connection (not error/timeout)
- Force a known value in the controller and verify it displays correctly on the HMI
- Trigger a write command from the HMI and confirm it is received by the controller
Each of these checks tests a different failure point and all three must pass.
Independent verification tools:
- For Modbus TCP, Modbus Poll independently verifies controller communication before and after HMI connection
- For EtherNet/IP, RSLinx or the Node Commissioning Tool validates CIP network visibility and handles IP assignment via BOOTP/DHCP
If any of the three checks fail, isolate the layer: network connectivity first, then protocol configuration, then tag mapping. Catching failures at this stage takes minutes; catching them after production starts takes considerably longer.
Common HMI TCP/IP Integration Problems and Fixes
Three problems account for the majority of HMI-TCP/IP communication failures encountered during and after commissioning.
HMI Shows "No Connection" or Communication Timeout
Problem: The HMI configuration shows a connected state in software but the panel itself reports communication timeout or no connection to the controller.
Likely cause: IP address mismatch, wrong subnet mask, or the controller's Ethernet port is not enabled or is blocked by a firewall rule on an intervening switch or router. This is especially common when a controller has multiple network interfaces and the HMI is pointed at the wrong one.
Fix:
- Use a network ping test from a laptop on the same subnet to confirm the controller is reachable
- Verify IP address and subnet settings on both devices
- Check switch port configuration and confirm no firewall is blocking the protocol's port (e.g., port 502 for Modbus TCP, port 44818 for EtherNet/IP)
- Confirm the controller's Ethernet interface is enabled in its configuration
HMI Displays Incorrect or Scrambled Data Values
Problem: The HMI connects successfully and shows live data, but values are clearly wrong—e.g., a temperature reads as a large negative number, or a setpoint appears as a random value.
Likely cause: Tag data type mismatch (e.g., the HMI is reading a 32-bit float register as two 16-bit integers) or byte-order (endianness) is reversed between the HMI and controller.
Fix:
- Verify the data type assigned in the HMI tag matches exactly what the controller is outputting
- Check the byte-swap or word-swap setting in the HMI's protocol driver configuration
- For Modbus TCP, explicitly configure endianness for 32-bit values using the HMI's data conversion options

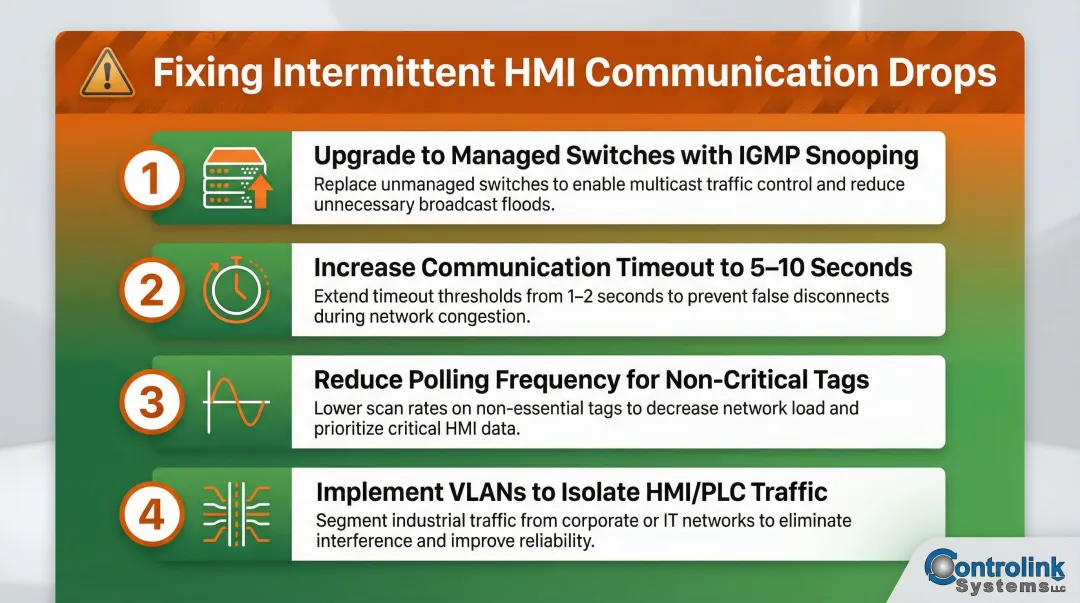

Intermittent Communication Drops Under Load
Problem: Communication works correctly during initial testing but begins dropping or timing out once the machine is running and additional devices are on the network.
Root cause: Network congestion from unmanaged switch broadcast storms, too-short timeout values in the HMI protocol settings, or the HMI polling rate is too aggressive for the controller's response capability.
Fix:
- Replace unmanaged switches with managed switches that support IGMP snooping and broadcast storm control
- Increase the communication timeout value in HMI settings (from 1–2 seconds to 5–10 seconds)
- Reduce polling frequency for non-critical tags to lighten the communication load
- Implement VLANs to separate HMI/PLC traffic from other network traffic
Pro Tips for Reliable HMI Network Integration
Three practices consistently separate reliable HMI integrations from ones that generate support calls six months later.
1. Document the network before and after integration.
Record all IP addresses, subnet assignments, protocol ports, and tag-to-register mappings in a commissioning document. This single habit prevents hours of re-diagnostic work when a replacement HMI or controller needs reconfiguring months later. ISA/IEC 62443-3-2 mandates documentation of the System Under Consideration (SUC), including zone and conduit drawings, network characteristics, and asset inventories. In CNC and DNC environments, having this on the shop floor is non-negotiable.
2. Separate HMI/PLC traffic from general plant IT traffic.
Use VLANs or a dedicated OT network segment. A flat network that works fine today becomes a source of intermittent failures as more IP-connected devices — barcode scanners, wireless access points, cameras — get added without coordination. Cisco and Hirschmann industrial networking guidelines recommend assigning each automation cell to its own VLAN to limit broadcast storms and unnecessary traffic flooding.
3. Plan for multi-system communication before commissioning.
When HMI panels also need to reach SCADA systems, MES platforms, or DNC software over the same TCP/IP network, choose OPC UA or a well-documented Modbus TCP architecture from day one. Adding a second protocol layer to an already-running HMI network is far harder than designing for it upfront.
If your shop runs DNC software — including Controlink's shop-floor automation tools — confirm that the HMI's TCP/IP data paths align with existing communication flows before going live.
Frequently Asked Questions
Why is my HMI not communicating with PLC?
The most common causes are IP address mismatch, incorrect protocol driver selection, or a firewall rule blocking the protocol's port — confirm both devices share the same subnet and the correct port is open. Start with a basic ping test to verify the controller is reachable before digging into HMI configuration settings.
What protocols are used in HMI communication?
The most common protocols used over TCP/IP networks are Modbus TCP, EtherNet/IP, PROFINET, and OPC UA. The choice depends on the PLC brand, HMI software driver availability, and whether data needs to reach enterprise systems beyond the machine level. Modbus TCP is the most universal, while EtherNet/IP and PROFINET are optimized for specific controller ecosystems.
What are the 4 layers of the TCP/IP model?
The TCP/IP model consists of four layers: Network Access, Internet, Transport, and Application. Industrial protocols like Modbus TCP and EtherNet/IP operate at the Application layer, running over TCP/IP's transport infrastructure — so a correctly configured network still requires a separately configured application-layer protocol to communicate.
How do I assign an IP address to an HMI panel?
Most HMI panels allow IP configuration through the panel's on-screen system menu or via the configuration software during project download. Always assign a static IP matched to the controller's subnet — disable DHCP and manually enter the IP address, subnet mask, and gateway.
Can HMI panels be accessed remotely over TCP/IP?
Yes. Many modern HMI panels support remote access via VNC or web-based interfaces over TCP/IP, including Rockwell PanelView and Siemens SIMATIC Comfort Panels. However, this requires careful network security configuration—including restricted port access and VPN tunneling—to prevent unauthorized access to production systems. CISA and ISA/IEC 62443 strongly advise against exposing these services directly to the internet.
What is the difference between Modbus TCP and EtherNet/IP for HMI integration?
Modbus TCP is a simpler, brand-agnostic protocol best suited for cross-manufacturer integrations and legacy systems, using basic register-based addressing on TCP port 502. EtherNet/IP uses the CIP standard and is optimized for Allen-Bradley/Rockwell environments with richer data structures, tag-based addressing, and faster cyclic updates via UDP. The right choice depends on the controller being used and the complexity of data exchange required.
