Introduction
Engineers and test managers face a persistent challenge: acquiring high-speed, multi-channel data from dozens—or hundreds—of sensors simultaneously, with every measurement precisely synchronized. Add in environments where equipment must survive vibration, temperature extremes, and 24/7 operation, and standard desktop PCs or consumer-grade USB devices simply can't keep up.
They lack the timing precision, bandwidth, and ruggedness these applications demand.
PXI (PCI eXtensions for Instrumentation) was purpose-built to solve this exact problem. This guide breaks down how PXI data acquisition works, what sets it apart from alternatives like USB DAQ and desktop PCI, and why industries from aerospace to manufacturing rely on it.
TLDR
- PXI combines rugged modular packaging with high-speed PCI/PCIe buses and dedicated timing infrastructure for precision data acquisition
- Three hardware layers define every system: chassis (power, cooling, timing), controller (embedded or remote PC), and I/O modules (analog, digital, communication)
- Nanosecond-level synchronization across channels is achievable in hardware — a precision level software-timed USB devices cannot match
- Governed by the PXI Systems Alliance (70+ vendors), ensuring multi-vendor interoperability
- Common in aerospace, automotive, manufacturing test, and research where high channel counts and precise timing matter
What Is PXI Data Acquisition?
PXI stands for "PCI eXtensions for Instrumentation" (PCI eXtensions for Instrumentation): a rugged, modular, PC-based platform that combines high-speed PCI and PCI Express electrical buses with CompactPCI's Eurocard mechanical packaging. It adds dedicated timing and synchronization features that general computing platforms simply don't offer.
PXI data acquisition refers to using PXI hardware and software to capture, condition, and digitize real-world signals from physical processes for analysis, logging, or control. Signals include voltage, temperature, vibration, pressure, and current.
Compared to standalone benchtop instruments or basic USB DAQ devices, PXI's modular design offers clear advantages:
- Eliminates redundant processing circuitry across instruments
- Reduces overall system footprint
- Delivers timing precision that plug-and-play USB devices cannot match
Origins and Standardization
National Instruments developed PXI in 1997 and launched it in 1998 as a lower-cost, PC-native successor to legacy instrumentation buses like VXI and GPIB. Today, the PXI Systems Alliance (PXISA), a consortium of more than 70 companies, governs the standard, maintaining mechanical, electrical, and software specifications that ensure hardware from multiple vendors works together seamlessly.
PXI Express: The Evolution
PXI Express (PXIe) incorporates PCI Express signaling to deliver up to 24 GB/s of system bandwidth, nearly 100 times faster than USB 3.0's sustained throughput of 250 MB/s. PXIe also adds a 100 MHz differential clock phase-aligned to the original 10 MHz reference, plus differential star triggers with propagation delay skew under 150 picoseconds. Critically, PXIe maintains backward compatibility with standard PXI modules through hybrid slots, protecting existing hardware investments.
Key Components of a PXI DAQ System
A PXI DAQ system consists of three integrated hardware layers (chassis, controller, and peripheral modules) that work together on a shared backplane, rather than as independent instruments with their own processors and displays.
Chassis
The chassis provides the structural backbone:
- Power and cooling: Forced-air cooling and regulated power distribution for all installed modules
- Slot capacity: Ranges from 4-slot portable units to 18-slot rack-mount systems
- Communication bus: PCI or PCI Express backplane for high-speed data transfer
- Timing infrastructure: The defining feature that distinguishes PXI from desktop PCI
The chassis timing and synchronization features are what truly set PXI apart:
| Feature | Function | Benefit |
|---|---|---|
| 10 MHz reference clock | Distributed to all slots with <1 ns skew | Phase-aligns all modules to a common timebase |
| 8-line TTL trigger bus | Shared trigger lines across all modules | Any module can trigger any other module |
| Star trigger | Dedicated trigger from timing slot to each peripheral slot | Guarantees matched propagation delay for simultaneous triggering |
| Slot-to-slot local bus | 13-line daisy-chained bus between adjacent slots | High-speed side-band communication without consuming PCI bandwidth |
These features allow any module in the system to share a clock or trigger event with any other module, enabling sub-nanosecond measurement alignment across channels. That precision is essential for multi-physics testing where voltage, vibration, and temperature must be sampled at the exact same moment.
Controller
Every PXI chassis requires a system controller in Slot 1. Two architectures are available:
Embedded Controllers:
- Modular PCs residing directly in the chassis
- Run Windows 10/11 or NI Linux Real-Time (deterministic OS)
- Eliminate need for external PC
- Ideal for deployed systems and real-time applications where OS jitter must be minimized
Remote Controllers:
- Desktop, laptop, or server controls chassis via MXI-Express
- Software-transparent PCI Express link over copper or fiber-optic cable
- Sustained throughput up to 13.7 GB/s
- Allows physical separation between operator station and test hardware
Peripheral Modules (DAQ Modules)
PXI's open standard enables a wide range of plug-in I/O modules from 70+ vendors:
- Analog input: Voltage, thermocouple, RTD, IEPE accelerometer inputs
- Digital I/O: TTL, LVDS, configurable logic
- Counter/timer: Frequency, pulse width, encoder measurement
- Strain/pressure: Bridge-based sensor conditioning
- Communication interfaces: CAN, Modbus, Profinet, EtherCAT, serial
This modularity lets engineers configure exactly the measurement channels they need, with no cost for unused functionality bundled into fixed-function instruments.
How PXI Data Acquisition Works

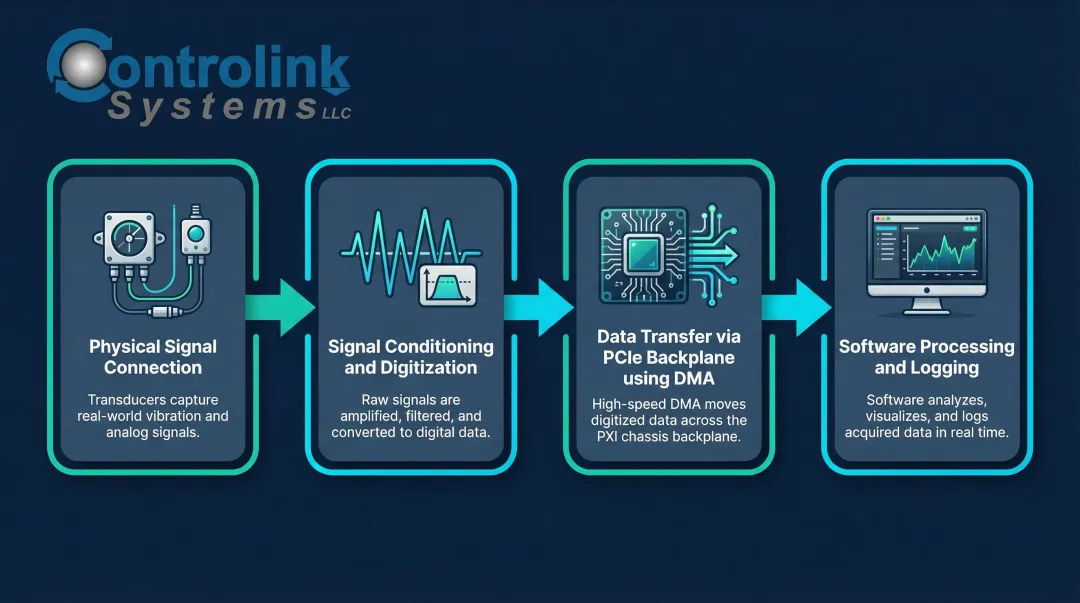

Signal Flow
- Physical signal connection: A sensor (e.g., vibration accelerometer, thermocouple, pressure transducer) connects to the appropriate PXI DAQ module
- Signal conditioning and digitization: The module amplifies, filters, and digitizes the analog signal
- Data transfer: Digitized data moves via the PCI/PCIe backplane to the controller using Direct Memory Access (DMA), which frees the CPU for analysis rather than bus management
- Software processing: Applications process, log, or act on data in real time
Hardware-Timed Synchronization
The chassis timing infrastructure is what makes PXI exceptional. The shared 10 MHz reference clock and trigger bus allow all DAQ channels—whether measuring voltage, temperature, or vibration—to sample at the exact same moment. Precise synchronization enables:
- Multi-physics testing: correlating mechanical vibration with electrical signals
- Phase-aligned measurements: radar, RF signal analysis, ADAS sensor validation
- Hardware-in-the-loop (HIL): real-time control loops with deterministic timing
Unlike USB DAQ, which relies on software polling subject to millisecond-level OS jitter, PXI provides hardware-timed acquisition with nanosecond-level jitter.
Software Ecosystem
PXI DAQ systems are programmed using:
- NI LabVIEW (graphical programming)
- Python (via the official nidaqmx package on PyPI)
- C/C++ and .NET (text-based languages)
NI TestStand handles test sequencing, looping, parallel execution, operator interfaces, and automated database reporting (XML, HTML, ATML). The same system can run automated end-of-line tests or continuous process monitoring without rewriting measurement code.
Controlink Systems LLC, a member of the NI Partner Network since 2000, deploys and customizes these PXI software and hardware systems for manufacturing and test applications, with clients including Oak Ridge National Laboratory and automotive manufacturers.
Scalability: Multi-Chassis Systems
When channel counts exceed a single 18-slot chassis, multiple PXI chassis can be synchronized using timing modules like the NI PXI-6683 series:
| Synchronization Method | Accuracy | Use Case |
|---|---|---|
| IEEE 1588 (PTP) | ~100 ns | Local Ethernet networks |
| GPS | ±40 ns offset, <8 ns std dev | Distributed systems over vast distances |
| IRIG-B (DC) | ±55 ns offset | Legacy aerospace timing networks |
This enables distributed, multi-node test architectures—such as structural dynamics arrays with hundreds of accelerometers—without sacrificing centralized timing precision.
PXI vs. PCI and Other DAQ Platforms
PXI vs. Desktop PCI
Standard PCI is a desktop computer bus designed for peripherals like graphics cards and network adapters. It offers electrical connectivity but lacks:
- No Eurocard packaging, keyed connectors, or forced-air cooling for rugged deployment
- No shared 10 MHz clock, trigger buses, or star triggers for synchronized timing
- No instrument-grade thermal management for sustained 24/7 operation
⚠️ Common misconception: PXI modules are NOT hot-swappable. Inserting or removing modules while powered can cause electrical arcing and permanent hardware damage.
Desktop PCI was never designed for instrumentation. PXI adds the mechanical, thermal, and timing features required for 24/7 test and measurement.

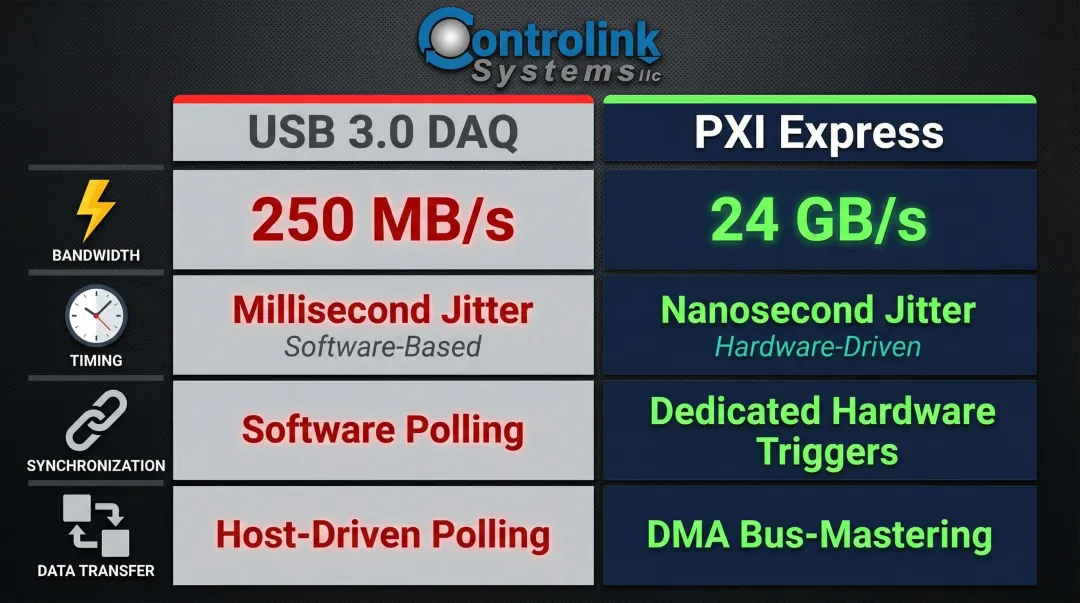

PXI vs. USB DAQ
USB DAQ devices are low-cost and easy to connect—but severely limited for demanding applications:
| Metric | USB 3.0 DAQ | PXI Express |
|---|---|---|
| Bandwidth | 250 MB/s sustained | Up to 24 GB/s |
| Timing | Software-timed (millisecond jitter) | Hardware-timed (nanosecond jitter) |
| Synchronization | Software polling, non-deterministic | Dedicated hardware trigger and clock buses |
| Data transfer | Host-driven polling | DMA and bus-mastering |
USB DAQ works for portable, low-channel-count measurements. PXI is the right choice when precise multi-channel alignment, high throughput, or deterministic timing matter—such as control loops, phase-coherent RF measurements, and high-speed structural testing.
PXI vs. VXI/GPIB
PXI succeeded older instrumentation standards (VXI, GPIB) by offering PC-native connectivity and higher bandwidth at a lower cost of ownership. It preserved the modularity and ruggedness those standards were known for. Today, PXI/PXIe holds roughly 42% of the modular instrumentation market, steadily displacing legacy benchtop instruments.
Where PXI DAQ Is Used: Industries and Applications
Primary Industries
Aerospace & Defense:
- Avionics testing, radar target simulation, electronic warfare (EW)
- Example: Digilogic Systems built a portable Radar Target Echo Simulator using PXI Express Vector Signal Transceivers with peer-to-peer streaming for real-time range and Doppler simulation
Automotive:
- ECU validation, EV battery testing, ADAS sensor validation
- Example: ZF Group used PXI's timing and synchronization to build scalable Hardware-in-the-Loop (HIL) systems for ADAS radar sensors
Manufacturing:
- End-of-line production test, machine monitoring, vibration analysis
- Controlink Systems LLC serves manufacturing clients—including automotive and research labs—through NI-based PXI DAQ implementations for process monitoring and product testing
Research Laboratories:
- Structural dynamics, acoustic measurement, multi-physics testing
- Example: Boeing deployed distributed PXI with fiber-optic MXI-Express to synchronize over 600 microphones across a runway, measuring aircraft noise with phase match within one degree at 93 kHz
Why PXI Dominates Automated Test Equipment (ATE)
These deployments share a common thread: PXI's modularity, timing precision, and software programmability let a single rack replace multiple standalone instruments. The result is a measurable shift in test economics:
- Smaller test cell footprint with reduced capital expenditure
- Faster setup and higher throughput
- Repeatable results with easy reconfiguration as requirements change
Emerging Applications
- EV battery testing requires high-channel-count voltage and temperature monitoring — PXI handles both with tight synchronization across hundreds of channels
- Semiconductor production fabs use PXI for high-density characterization (61% of new chip-testing environments now use PXI)
- 5G and RF infrastructure validation demands wide bandwidth and phase-coherent measurements, where PXI's architecture outperforms general-purpose instruments
Frequently Asked Questions
What is PXI data acquisition and how does it work?
PXI data acquisition uses the modular PXI platform to capture and digitize real-world signals from sensors. Physical signals connect to DAQ modules, which condition and digitize them, then transfer data via the PCI/PCIe backplane to a controller where software processes or logs the data in real time.
What does PXI stand for?
PXI stands for "PCI eXtensions for Instrumentation." It is an open industry standard governed by the PXI Systems Alliance (PXISA), a consortium of more than 70 companies that ensures multi-vendor interoperability across hardware and software.
What is the difference between PCI and PXI?
PCI is a standard desktop computer bus for peripherals. PXI adds rugged Eurocard modular packaging, dedicated 10 MHz reference clocks, 8-line trigger buses, star triggers, and thermal management specifically designed for test and measurement—features entirely absent in desktop PCI.
What are the main components of a PXI system?
A PXI system has three core hardware components:
- Chassis — provides power, cooling, the PCI/PCIe bus, and timing infrastructure
- Controller — an embedded PC or a remote desktop/laptop connected via MXI-Express
- Peripheral I/O modules — DAQ, RF, switching, and communication interfaces from 70+ vendors
What software is used with PXI data acquisition systems?
PXI DAQ is programmed with NI LabVIEW, Python (via the nidaqmx package), C/C++, or .NET. Test management software like NI TestStand handles automated sequencing, looping, parallel execution, operator interfaces, and database reporting for production and validation environments.
What is the difference between PXI and PXIe?
PXI Express (PXIe) replaces the parallel PCI bus with PCI Express, delivering up to 24 GB/s of bandwidth—nearly 100 times faster than standard PXI. PXIe also adds a 100 MHz differential clock and differential star triggers. Hybrid slots maintain full backward compatibility with standard PXI modules.
