Introduction
Industrial environments depend on dozens of devices — PLCs, sensors, variable frequency drives, HMIs — that must share data reliably to keep production lines running smoothly. Many manufacturers struggle with integrating equipment from different vendors, especially when legacy machines need to communicate with modern SCADA systems. This challenge has persisted for decades, yet one protocol has consistently delivered interoperability across nearly every industrial setting: Modbus.
Developed in 1979 by Modicon (now Schneider Electric), Modbus became the first widely adopted communication standard for PLCs and has remained relevant for over 40 years. Its open, royalty-free design means any manufacturer can implement it without licensing fees, which is why it appears in equipment from hundreds of vendors — from manufacturing plants to water treatment facilities.
This guide covers what Modbus is, how its master-slave architecture works, the differences between RTU, ASCII, and TCP/IP variants, and when this protocol fits your industrial control project.
TLDR – Key Takeaways
- Open and royalty-free, Modbus has connected PLCs, sensors, HMIs, and SCADA systems since 1979
- Uses a client-server model where one device requests data and others respond only when polled
- Three variants cover different networks: Modbus RTU and ASCII for serial, Modbus TCP/IP for Ethernet
- Simple and vendor-neutral, but lacks built-in security and event-driven messaging
What Is Modbus? Definition and Origin
Modbus is an application-layer communication protocol that standardizes how industrial automation devices exchange data, regardless of manufacturer or device type. It defines the structure and format of messages between controllers, sensors, drives, and supervisory systems — enabling a PLC from one vendor to read data from a sensor made by another.
The 1979 Modicon Origin
Modbus was originally published in 1979 by Modicon, developed specifically for exchanging process data between early PLCs and programming panels. At the time, most automation vendors used proprietary protocols, locking customers into single-vendor ecosystems.
Modicon took a different approach: they released Modbus as an open specification, allowing any manufacturer to implement it without licensing fees. Within two decades, Modbus became the most widely deployed industrial protocol in the world. By 2004, Schneider Electric (which acquired Modicon in 1997) transferred the protocol's copyright to the Modbus Organization, a non-profit trade association that now serves as its official steward. The specification remains freely available to this day.
Why Modbus Spread Beyond PLCs
Because Modbus is open and royalty-free, manufacturers across industries adopted it rapidly. What began as a PLC-to-panel communication standard became a widely adopted protocol for:
- SCADA systems polling remote terminal units (RTUs)
- HMIs reading real-time data from PLCs
- Building automation systems controlling HVAC and energy meters
- Water treatment plants monitoring flow sensors and pumps
The Modbus Protocol Family
"Modbus" today refers not to a single protocol, but to a family of related specifications. All three variants share the same application layer — function codes and data model — but differ in how messages are framed and transmitted:
- Modbus RTU: Binary encoding over serial lines (RS-232/RS-485); compact and efficient
- Modbus ASCII: Human-readable encoding over the same serial lines; easier to debug
- Modbus TCP/IP: Encapsulates the Modbus frame over standard Ethernet networks
Where Modbus Sits in the Protocol Stack
Modbus operates at the application layer, sitting above whatever physical network carries its messages. The underlying network — whether serial cable or Ethernet — handles the physical and data-link layers independently. This separation is why the same function codes work identically on a legacy RS-485 loop and a modern Ethernet switch, without any changes to your application logic.
How Modbus Works: The Master-Slave Architecture
Modbus operates on a strict master-slave (now also called client-server) model. One device — the master or client — always initiates communication by sending a request. Slave (server) devices only respond when polled and never broadcast unsolicited data.
Typical Device Roles
- Master/Client: Commonly a SCADA system, HMI, or supervisory controller
- Slaves/Servers: PLCs, sensors, VFDs, energy meters, remote I/O modules

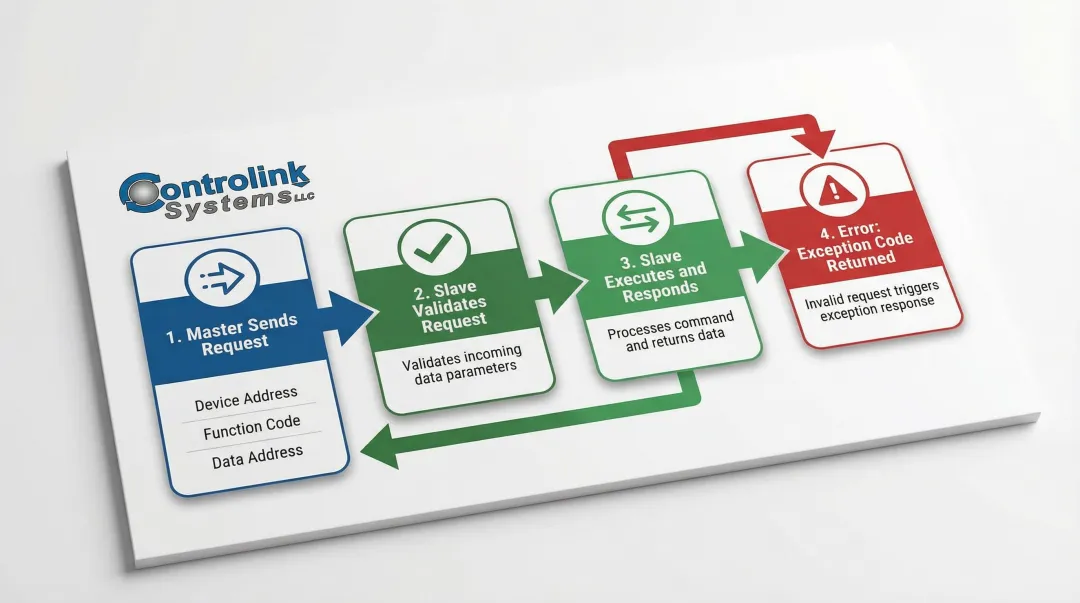

The Request-Response Cycle
Every Modbus transaction follows this sequence:
- Master sends a request containing:
- Device address (1–247 on serial networks)
- Function code (what action to perform)
- Data address (which register or coil to read/write)
- Data or quantity of registers
- Slave validates the request, checking that the function code is supported and the address is valid
- Slave executes the function and returns a response with the requested data
- If an error occurs, the slave returns an exception code instead
Device Addressing
Each slave on a Modbus network has a unique address (1–247 on serial; unit ID on TCP/IP). This allows the master to direct commands to specific devices on a shared bus.
Address 0 is reserved for broadcast. When the master writes to address 0, all slaves execute the command but none send a response.
Exception Handling
When a slave cannot process a request, it returns a defined exception code:
| Code | Name | Meaning |
|---|---|---|
| 01 | Illegal Function | Function code not supported by this device |
| 02 | Illegal Data Address | Requested register or coil address does not exist |
| 03 | Illegal Data Value | Data value in the request is out of range |
| 04 | Server Device Failure | Hardware error prevented execution |
In practice, exception code 02 (Illegal Data Address) is the most common culprit when integrating a new device — it usually means the register map in your configuration doesn't match what the slave actually exposes.

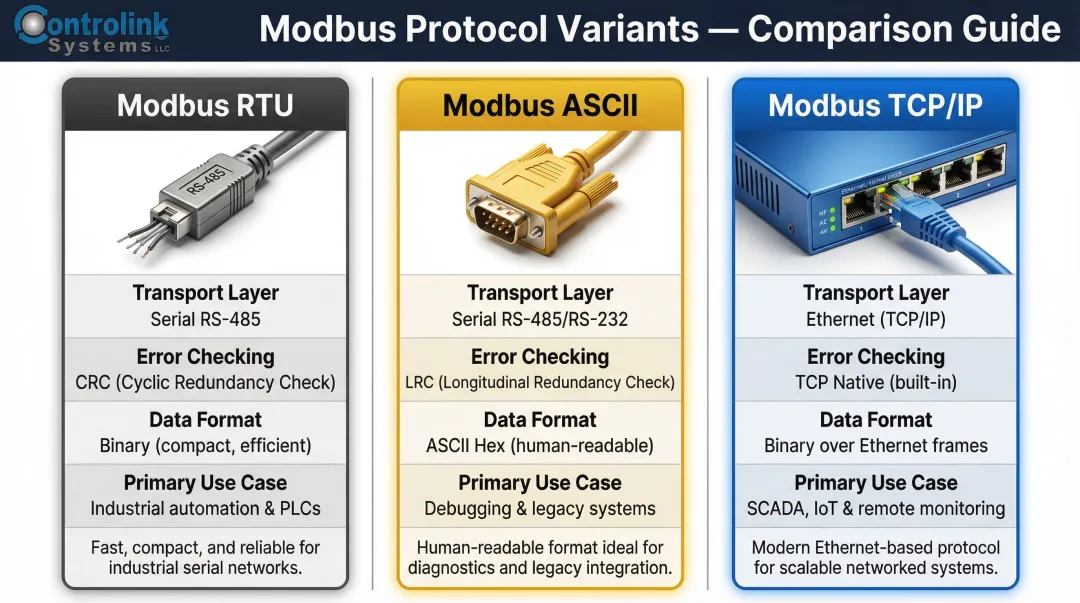

Types of Modbus Protocols: RTU, ASCII, and TCP/IP
All three Modbus variants share the same core application layer but differ in message framing and transmission.
| Variant | Transport | Error Checking | Data Format | Primary Use |
|---|---|---|---|---|
| Modbus RTU | Serial (RS-232/RS-485) | CRC | Binary | Multi-drop serial networks |
| Modbus ASCII | Serial (RS-232/RS-485) | LRC | ASCII Hex | Human-readable debugging |
| Modbus TCP/IP | Ethernet (TCP/IP) | TCP native | Binary | Modern SCADA and IIoT |
Modbus RTU
Modbus RTU is a compact, binary-encoded serial protocol typically transmitted over RS-232 or RS-485 wiring. It uses a Cyclic Redundancy Check (CRC) for error detection, making it highly efficient for bandwidth-constrained environments. Each message is framed with silent intervals (3.5 character times) to mark the start and end of transmission.
RTU remains the most widely deployed serial variant — common in legacy manufacturing equipment where efficiency and reliability matter most.
Modbus ASCII
Where RTU prioritizes compactness, Modbus ASCII encodes data as ASCII hexadecimal characters rather than raw binary. This makes messages human-readable and easier to debug with a simple terminal program. However, this readability comes at a cost: ASCII messages are roughly twice the size of RTU messages, making transmission slower.
Modbus ASCII is rarely used in modern applications, but it still appears in environments where legacy modems or simple debugging tools are required.
Modbus TCP/IP
Modbus TCP/IP wraps the core Modbus message in a TCP/IP packet with a 7-byte MBAP (Modbus Application Protocol) header. All Modbus TCP communication occurs over TCP port 502.
The MBAP header contains:
- Transaction Identifier: Pairs requests with responses, enabling concurrent messaging
- Protocol Identifier: Always set to 0, reserved for Modbus
- Length: Byte count of remaining fields
- Unit Identifier: Routes messages to serial slaves behind Ethernet gateways
Because TCP/IP handles error checking natively, Modbus TCP drops the CRC field used in RTU — reducing overhead while supporting multiple simultaneous clients and faster communication speeds. This makes it the go-to choice for SCADA systems, plant-floor Ethernet networks, and connected industrial equipment.
The numbers reflect that shift. According to HMS Networks' 2025 Industrial Network Report, Ethernet-based industrial networks now account for 76% of all new installed nodes, with Modbus TCP holding steady at 4% of new deployments.
The Modbus Data Model and Function Codes
Modbus organizes data into four distinct memory tables, each with specific access rules and data types.
The Four Modbus Data Types
| Object Type | Access | Size | Description |
|---|---|---|---|
| Coils | Read/Write | 1 bit | Boolean outputs controlled by application |
| Discrete Inputs | Read-Only | 1 bit | Boolean inputs from sensors or switches |
| Holding Registers | Read/Write | 16 bits | Numeric values controlled by application |
| Input Registers | Read-Only | 16 bits | Numeric values from sensors or meters |
These are conceptual blocks: their physical memory implementation is defined by each slave device. The data model strictly separates boolean (single-bit) and word (16-bit) data, as well as read-only sensor inputs from read-write application variables.
Common Modbus Function Codes
Function codes tell the slave what action to perform. The most common codes engineers encounter include:
- FC01 (0x01): Read Coils (1–2000 coils)
- FC02 (0x02): Read Discrete Inputs (1–2000 inputs)
- FC03 (0x03): Read Holding Registers (contiguous block)
- FC04 (0x04): Read Input Registers (1–125 registers)
- FC05 (0x05): Write Single Coil (ON = 0xFF00, OFF = 0x0000)
- FC06 (0x06): Write Single Register
- FC15 (0x0F): Write Multiple Coils
- FC16 (0x10): Write Multiple Registers (1–123 registers)
Before writing a single line of integration code, check the device's datasheet to confirm which function codes it actually supports — not all devices implement the full set. That datasheet will also clarify the addressing convention, which is where most integration errors originate.

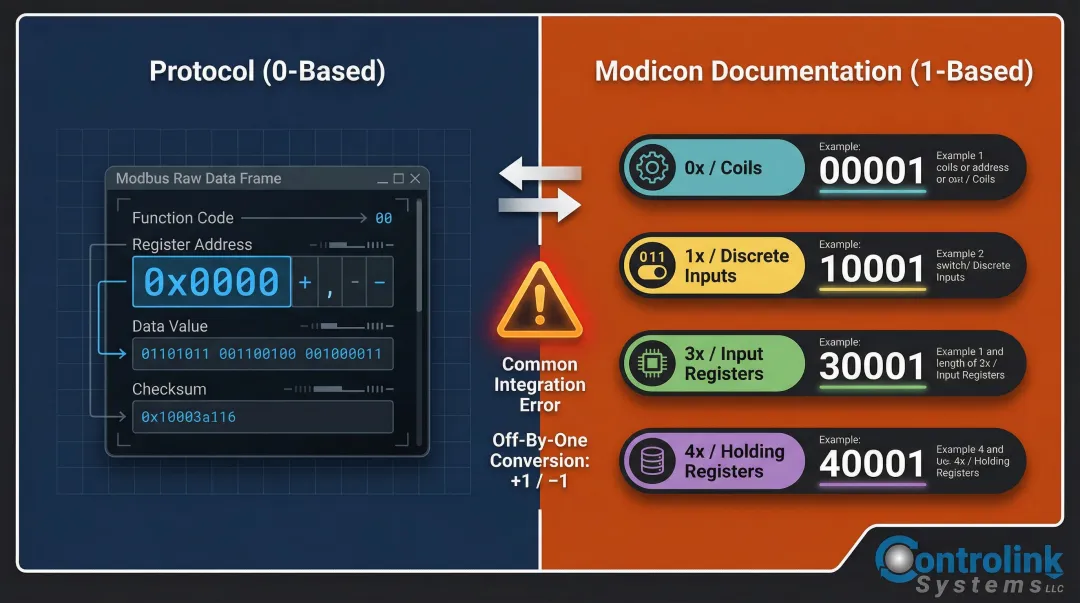

The 0-Indexed vs. 1-Indexed Addressing Trap
A major source of integration confusion stems from addressing conventions. The official Modbus specification uses 0-indexed addressing — data element X is addressed in the protocol as X-1.
However, legacy Modicon documentation uses a 1-based numbering convention with prefixes:
- 0x = Coils (e.g., 00001)
- 1x = Discrete Inputs (e.g., 10001)
- 3x = Input Registers (e.g., 30001)
- 4x = Holding Registers (e.g., 40001)
These prefixes are a documentation convention, not part of the protocol itself. In a raw Modbus frame, the prefix does not exist — only the function code and 0-based address appear. Many integration tools handle this conversion automatically, but when they don't, an off-by-one addressing error is the result — and it can be surprisingly difficult to diagnose.
Modbus in Industrial Control: Real-World Applications
Modbus appears across nearly every industrial sector due to its universal device support and proven reliability.
Common Manufacturing Use Cases
- PLC-to-HMI communication: Real-time status monitoring and operator control
- VFD and motor controller integration: Linking drives to supervisory systems for speed control and diagnostics
- Smart energy meters: Reading power consumption data for energy management systems
- Remote I/O modules: Expanding PLC I/O capacity across the plant floor
Bridging Legacy and Modern Systems
Because Modbus is supported by virtually every generation of industrial hardware, it's commonly used to update older equipment. Legacy machines that originally communicated via proprietary protocols, or lacked any network interface entirely, can be given Modbus interfaces, allowing them to report data to modern SCADA platforms, MES systems, or cloud-based dashboards without hardware replacement.
System Integration in Practice
In practice, Modbus rarely operates in isolation. Engineering firms implementing shop-floor automation — Controlink Systems included — connect Modbus-enabled PLCs and sensors to SQL databases, motion controllers, and supervisory software as part of larger integration projects. The result is a unified view of the production floor, with data flowing between systems that would otherwise operate independently.
Protocol selection depends on the specific project: device compatibility, network architecture, and existing equipment all factor in. Controlink works across multiple industrial protocols — Modbus, Profinet, EtherCAT, CAN, and serial communication — choosing the right fit rather than defaulting to a single standard.
Modbus Advantages and Limitations
Strengths of Modbus
Modbus has remained relevant for over four decades due to several key advantages:
- Open and royalty-free: No vendor lock-in or licensing fees
- Simple to implement and troubleshoot: Straightforward message structure and well-documented specifications
- Universal device support: Supported by virtually every industrial device manufacturer
- Proven reliability: Decades of deployment in harsh industrial environments
When Modbus May Not Be the Right Choice
Despite its strengths, Modbus has limitations that make engineers consider alternative protocols in certain scenarios:
- No built-in security: Modbus transmits all data in cleartext with no authentication or encryption, earning a CVSS 10.0 vulnerability score in CISA advisories. Secure deployments require network segmentation, VPNs, and industrial firewalls.
- Poll-only communication: Modbus is strictly request/reply — slaves cannot initiate communication or push event-driven alerts. The master must continuously poll for changes, which introduces latency in time-sensitive applications.
- Limited native data types: Only boolean and 16-bit unsigned integers are supported natively. Floating-point values, timestamps, and complex structures require workarounds or custom encoding.
- Scalability ceiling: In large networks with hundreds of devices, polling overhead and the absence of publish-subscribe mechanisms create bottlenecks.
These gaps matter most in high-security, time-sensitive, or complex IIoT architectures — which is where protocols like OPC UA, EtherNet/IP, or Profinet are better suited. OPC UA, for instance, offers built-in security (X.509 certificates, AES-256 encryption), rich semantic data modeling, and publish-subscribe communication — directly addressing the areas where Modbus falls short.
Frequently Asked Questions
What is Modbus in industrial automation?
Modbus is a communication protocol enabling data exchange between industrial automation devices like PLCs, HMIs, sensors, and SCADA systems. Developed in 1979, it has been the backbone of industrial networking for over 40 years due to its open, royalty-free design.
Why is Modbus important in industrial automation?
Modbus stands out for its open standard, universal device support, and four-decade reliability record. It acts as the common language that lets equipment from different manufacturers interoperate without vendor lock-in or licensing fees.
Is Modbus a SCADA protocol?
Modbus is not a SCADA protocol, but it's commonly used as the communication layer between SCADA systems and field devices like PLCs and sensors. SCADA systems use Modbus to poll data and issue control commands.
Do PLCs use Modbus?
Yes, most modern PLCs support Modbus as either a master, slave, or both. Modbus PLC communication is one of the most common use cases, whether connecting to HMIs, drives, remote I/O, or SCADA systems. It remains a standard feature across virtually all industrial controller platforms.
Is Modbus the same as 4-20mA?
No. 4-20mA is an analog signal standard for transmitting a single sensor value (like pressure or temperature) over a current loop, while Modbus is a digital communication protocol capable of exchanging many data points simultaneously. 4-20mA transmits only one variable per wire, whereas Modbus RS-485 transmits multiple variables, diagnostics, and configuration data over a single daisy-chained network.
When not to use Modbus?
Avoid Modbus when your application requires built-in security (encryption, authentication), event-driven communication, or complex data structures. OPC UA, EtherNet/IP, and Profinet handle these requirements better and are designed for modern, large-scale networked environments.
